IOGear M1442-a User Manual

Duplicast wireless screen sharing
Hide thumbs
Table of Contents

Advertisement

Quick Links

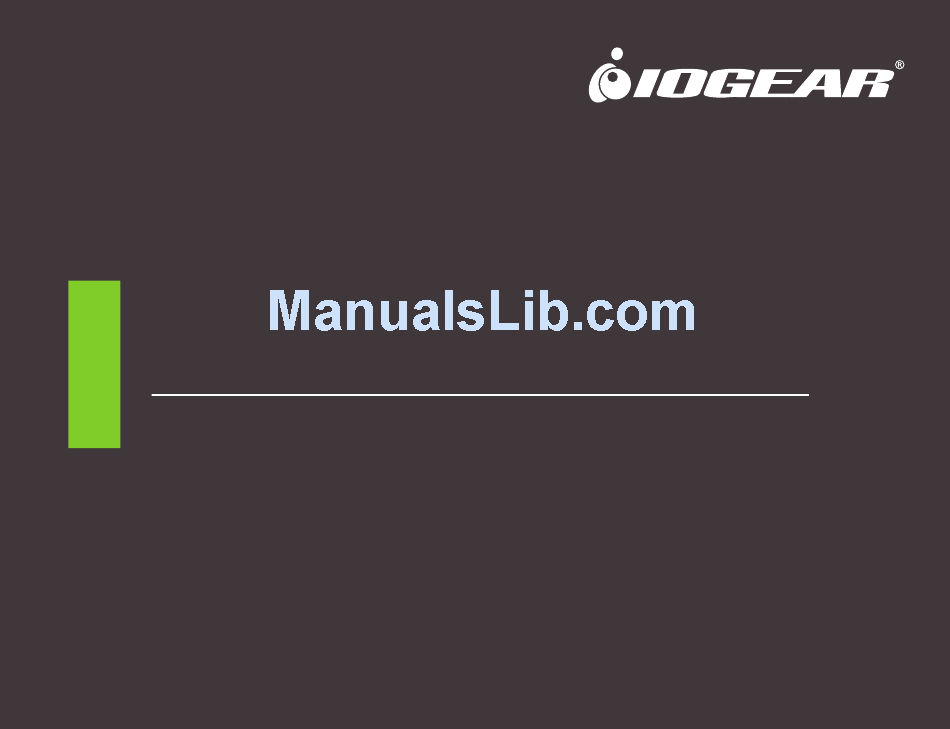

User Manual
Duplicast Wireless Screen Sharing
GWSSKIT
PART NO. M1442-a
www.iogear.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1442-a and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IOGear M1442-a

Summary of Contents for IOGear M1442-a

  • Page 1 User Manual Duplicast Wireless Screen Sharing GWSSKIT PART NO. M1442-a www.iogear.com...
  • Page 2 ©2017 IOGEAR. All Rights Reserved. Part No. M1442-a, the IOGEAR logo is trademarks of IOGEAR. Microsoft and Windows are registered trademarks of Microsoft Corporation. IOGEAR makes no warranty of any kind with regards to the information presented in this document. All information furnished here is for informational purposes only and is subject to change without notice. IOGEAR...

  • Page 3: Table Of Contents

    Table of Contents Introduction Features Package Contents System Requirements Overview Hardware Installation - Receiver Connection Options Connect with Wi-Fi Direct - Android devices - Windows 10 devices (for OEM installations only) Connect with USB Wi-Fi adapter - Hardware Installation & Setup - Software Installation Compliance Information Limited Warranty...

  • Page 4: Introduction

    Introduction IOGEAR’s Duplicast Wireless Screen Sharing kit allows you to enjoy all of your personal and online content wirelessly on your big screen HDTV. Using your smartphone, tablet or Windows based computer, you can sit back and experience your favorite movies, videos, photos, online shows and more in Full HD on your HDTV with great image, clarity and sound.

  • Page 5: Package Contents

    Package Contents 1 x Duplicast Wireless A/V Receiver 1 x Installation CD 1 x Wireless USB Transmitter 1 x Quick Start Guide 1 x Power Adapter 1 x Warranty Card 1 x Micro USB Power Cable 1 x HDMI Cable System Requirements Smartphones and Tablets PC (Minimum Requirements)

  • Page 6: Overview

    Overview Micro USB HDTV Micro USB HDTV Mode Mode Duplicast Wireless A/V Receiver: Wireless USB Transmitter: USB Micro-B Power Port - Connect the power USB Type-A Connector adapter to this port to supply power to the device. HDMI Out - Connect to the display with the HDMI cable Mode Button –...

  • Page 7: Hardware Installation - Receiver

    The Power LED will light solid blue. Turn on your TV or projector, and make sure you select the correct video source. The IOGEAR Duplicast flash screen will come up on the display and SSID, Pin Code and IP Address will populate the bottom of the screen.

  • Page 8: Connection Options

    Connection Options Determine if you’re connecting via Wi-Fi Direct or connecting via USB Wi-Fi adapter After the receiver is powered on, choose from one of two ways to cast the content from your device to the big screen TV: Wi-Fi Direct or via the USB Wi-Fi adapter. This is determined by the mobile device you are using (i.e. smartphone, tablet, laptop, PC, etc.).
  • Page 9 Wi-Fi Direct - Windows 10 (for OEM installations only): If you have a computer with Windows 10 (for OEM installations only), go to Settings and choose Display. If you see an option for Connect to a wireless display, your computer is Wi-Fi Direct ready. (Go to page 12 to see detailed steps).

  • Page 10: Connect With Wi-Fi Direct

    Connect with Wi-Fi Direct Once you have verified that your device is Wi-Fi Direct ready, you can cast your content to the big screen by following the steps below. Android devices On your Display option screen, connect by tapping on the cast option specific to your device (see example to the right).
  • Page 11 Your device will start searching for the Duplicast Wireless A/V Receiver. Once the receiver appears, tap on it to connect. After you initiate the connection, wait a few seconds for your device to establish the connection with the wireless receiver. When a black screen displays on both the TV and your device, the connection has been established.

  • Page 12: Windows 10 Devices (For Oem Installations Only)

    Windows 10 devices (for OEM installations only) Open Settings to connect to a wireless display. Click on System. When the Display settings option window appears, click on Connect to a wireless display.
  • Page 13 At the right side of the screen, the Duplicast receiver will appear. Click on it to start the connection process. Wait a few seconds for the connection to be made and then you should see both the TV and laptop screen go dark briefly (an indication the connection is being established).

  • Page 14: Connect With Usb Wi-Fi Adapter

    Connect with USB Wi-Fi adapter If your device does not support Wi-Fi-Direct, then use the included USB Wi-Fi adapter to create its own dedicated Wi-Fi connection to send the video from your small screen to the big screen. Please check the system requirements first to make sure your device meets the minimum requirements.
  • Page 15 The Pairing Wizard will automatically launch. Select “Duplicast 023” from the dropdown menu and click Ok. The Duplicast control panel will automatically launch and the TV will mirror the display from your PC. The Transmitter is now paired to the Receiver. Future use will not require pairing.

  • Page 16: Software Installation

    Software Installation Windows 7, 8.1 and Windows 10 operating systems which connect via included Wireless USB Transmitter (only applies to Windows 10 versions that were upgraded from Windows 7 or Windows 8.1, does not apply to Windows 10 OEM installations) Close all other applications Insert Installation CD into the CD/DVD drive of your PC.
  • Page 17 Double click on the Launch. exe Application file. Select Duplicast Installation when installation menu appears.
  • Page 18 The Select Setup Language box will appear. Select the preferred language from the dropdown menu and click OK. The Welcome window will launch. Select Next.
  • Page 19 The Select Destination window will appear. Press the Browse… button to choose a different file destination. Click Next.
  • Page 20 10. Select Next on the Select Start Menu Folder screen.
  • Page 21 11. On the Preparing window, click the Install button.
  • Page 22 12. Select Next on the driver installation wizard screen.
  • Page 23 13. Click Install to begin driver installation.
  • Page 24 14. Once driver installation is complete, click the Finish button.
  • Page 25 15. Installation process will begin and will take you to the Finish screen where you will be prompted to restart your computer. Click Finish to complete the installation and restart your PC.

  • Page 26: Compliance Information

    Compliance Information Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting.

  • Page 27: Limited Warranty

    Limited Warranty This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty Register online at http://www.iogear.com/register Important Product Information Product Model Serial Number Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1.
  • Page 28 © 2017 IOGEAR...
