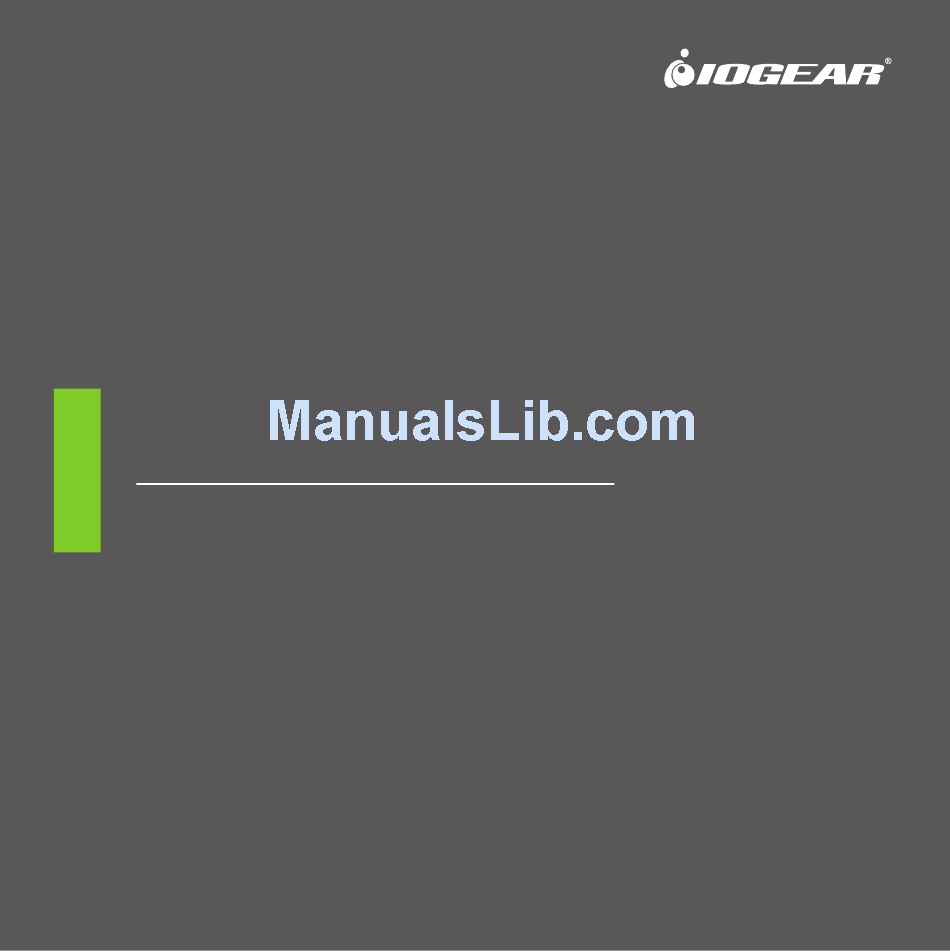

- Page 1 Quick Start Guide Powerline Wireless Extender GPLWE150 PART NO. Q1337 www.iogear.com...
-
Page 2: Package Contents
Package Contents 1 x GPLWE150 Powerline Wireless Extender 1 x Ethernet Cable (5ft) 1 x Quick Start Guide 1 x Warranty Card System Requirements For Internet Access: • Cable or DSL Modem • Router • Subscription with an Internet Service Provider (ISP) For Powerline Network: •... - Page 3 Extender (Front View) 1. Ethernet Link LED ( 2. PLC Link LED ( 3. Power LED ( Description Ethernet • Solid Green: Extender is connected to a powered-on Ethernet device Link • Blinking Green: The Ethernet port is transferring data •...
-
Page 4: Hardware Installation
Hardware Installation Connect the Powerline Wireless Extender to your existing Powerline network 1. Make sure you have an existing Powerline Ethernet adapter connected to your router/modem and plugged into a wall outlet.* 2. Plug the Powerline Wireless Extender into an available power outlet.* 3. - Page 5 Configuring your Powerline Wireless Extender 1. Start by disabling the Wi-Fi connection on your PC. 2. Connect your PC to the Ethernet port on the Powerline Wireless Extender using the included Ethernet cable. 3. Next, open Control Panel on your PC and access the Network and Sharing Center. 4.
- Page 6 5. Select Properties. 6. Click to highlight Internet Protocol Version 4 (TCP/IPv4) and select Properties.
- Page 7 7. Choose Use the following IP address. Set the IP address to 192.168.1.1 and the Subnet Mask to 255.255.255.0 as shown in the image below. Click OK to continue. 8. Next, launch your Internet browser and type 192.168.1.50 into the address bar. The web based wireless configuration tool will appear.
-
Page 8: Configuring Wireless Security Settings
Configuring Wireless Security Settings Option 1: Setting a Custom Network Name (SSID) 1. Select the Wi-Fi option on the left side of the configuration page. 2. Click the Network Name (SSID) text box and enter the desired Network Name. 3. Click the Save configuration button. A message will appear stating the wireless extender must be restarted for the changes to be applied. - Page 9 2. Once selected, type in the desired Network Key. Each Encryption type will have different requirements for the Network Key. Select the type most suitable for your wireless environment. 3. After the desired Network Key is selected, click Save configuration. A message will appear stating the wireless extender must be restarted for the changes to be applied.
- Page 10 Wi-Fi connection if you disabled it. This Quick Start Guide is intended to cover basic setup and key functions to get you up and running quickly. For a complete explanation of setup and features, please download the Powerline Wireless Extender Manual from www.IOGEAR.com/product/GPLWE150.
-
Page 11: Compliance Information
Compliance Information Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 12: Limited Warranty
WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support iogear.custhelp.com support@iogear.com www.iogear.com 19641 Da Vinci, Foothill Ranch, CA 92610...
