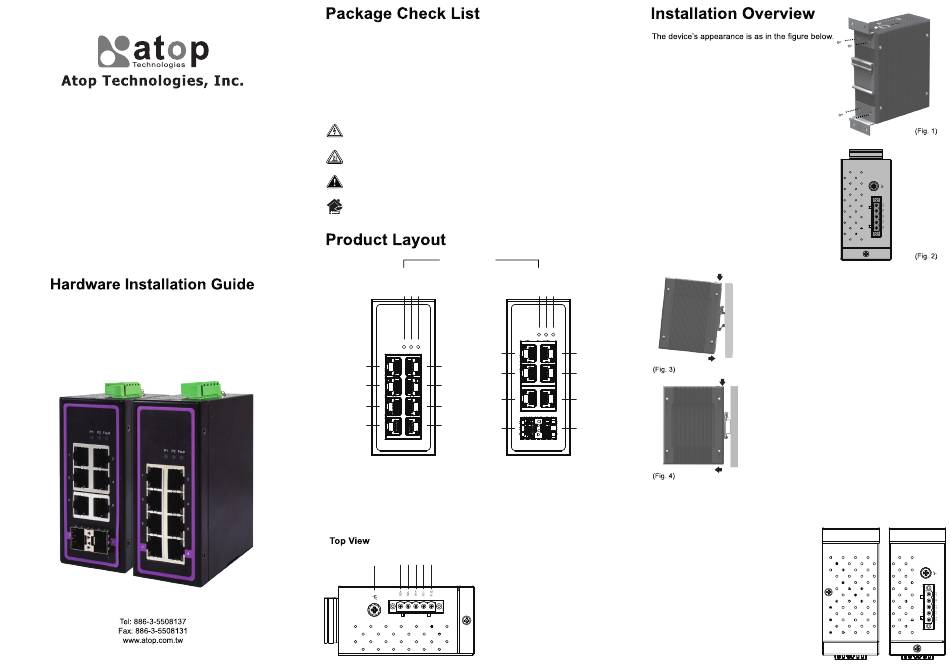

Atop EHG2408 Series Hardware Installation Manual

Smart MACSec Gigabit Ethernet Switch
EHG2408 Series
Version 1.0
Updated in November, 2017
P/N : 89900515G
Inside the package you will find the following items:
■ Smart MACSec Gigabit Ethernet Switch x 1
■ 5-Pin 5.08mm Lockable Terminal Block x 1
■ DIN-Rail Kit (Already mounted to the device) x 1
■ Protective caps for all SFP (Depend on purchased model)
■ Installation Guide with Warranty Card x 1
Never install or work on electrical or cabling during periods of lightning activity.
Never connect or disconnect power when hazardous gases are present.
Warning:Hot Surface Do Not Touch. RESTRICTED ACCESS AREA: The equipment
should only be installed in a Restricted Access Area.
Caution: CLASS 1 LASER PRODUCT. Do not stare into the laser!
This equipment should be installed indoor and not connect directly with equipment
installed outdoor.
I n d o o r I n d o o r

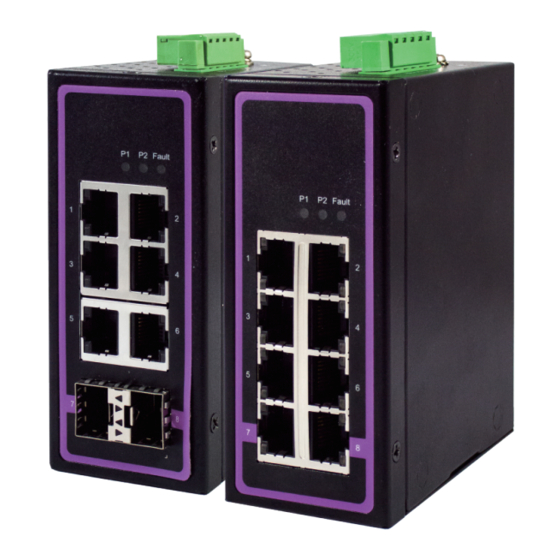

Front View
EHG2408
1 2 3
P1 P2 Fault
4
4 5
1 2
6
6 7
3 4
8
8 9
5 6
10 11
7 8 12
1. PWR1 LED 4 ~ 9. 10/100/1000 BASE-T(X) RJ45 Ports
2. PWR2 LED 10 ~ 11. 10/100/1000 BASE-T(X) RJ45 Ports with MACSec
3. Fault LED 12 ~ 13. 1000 BASE-X SFP Slots with MACSec
2 3 4 5 6
1
1. If you have purchased the wall mount kit,
proceed to place the screws on the back
of the device as show in (Fig. 1).
2. Although internal grounding has been
done inside, in order to ensure overall
maximum performance and protect your
device, it is still strongly advised to ground
the device properly; hazardous ESD can
come into contact and damage your
equipment. On the power terminal block,
there is a terminal for Frame Ground, you
can choose whether to connect it to the
grounding or you may opt to connect to
the grounding screw next to the terminal
block ( the one chosen should be connect-
ed at all times ) (Fig. 2)
EHG2408-2SFP
1 2 3
P1 P2 Fault
5
1 2
7
3 4
9
5 6
13
7 8
■ The opening to the sides are for the device's heat dissipation please never
obstruct or cover them with any objects or try to insert them through it.
■ This switch's factory IP by default is
10.0.50.1 you can access the device by its
Web UI once it is connected to a physical
network (or using Management Utility, for
more information on Management Utility,
1. Grounding Screw please refer to its manual). Please be
2 ~ 3. Terminal for Power 2 aware that the PC needed for this
4 ~ 5. Terminal for Power 1 procedure needs to be in the same
6. Functional Ground subnet, or you may refer yourself to the
device User's Manual.
1
3. You can then choose whether to plug in the other
peripheral ports at this point or do it later depending
on the actual location of the device or level of
comfort for performing such operation.
Remeber to plug in the protective caps for the
unused SFP.
2
4. Once the plate has been firmly put in place, proceed
1
to mount the whole device as shown in (Fig.
3).Proceed to (Fig. 4) if you want to remove the
device from DIN-Rail.
5. Next we can then proceed to connect the device to
the LAN (switch or PC, depending on the case), take
care on using the RJ-45 connector; after this we can
2 then proceed to the device's settings
