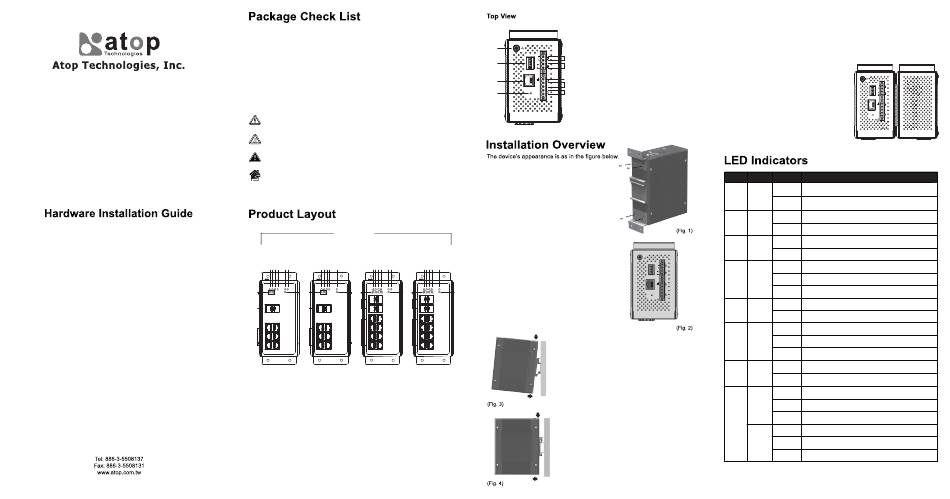

Atop EHG9508 Series Hardware Installation Manual

Industrial IEC61850-3 Managed Gigabit
Ethernet Switch
EHG9508 / EHG9512 Series
Version 0.1
Updated in March, 2016
P/N:89900493G
Inside the package you will find the following items:
■ Industrial Managed Gigabit Ethernet Switch x 1
■ 4-Pin 5.08mm Lockable Terminal Block (Already mounted to the device) x 1
■ 5-Pin 5.08mm Lockable Terminal Block (Already mounted to the device) x 1
■ DIN-Rail Kit (Already mounted to the device) x 1
■ Protective caps for all SFP ports (Depend on purchased model)
■ Installation Guide with Warranty Card x 1
Never install or work on electrical or cabling during periods of lightning activity.
Never connect or disconnect power when hazardous gases are present.
Warning:Hot Surface Do Not Touch.
Caution: CLASS 1 LASER PRODUCT. Do not stare into the laser!
This equipment should be installed indoor and not connect directly with equipment
installed outdoor.
I n d o o r I n d o o r

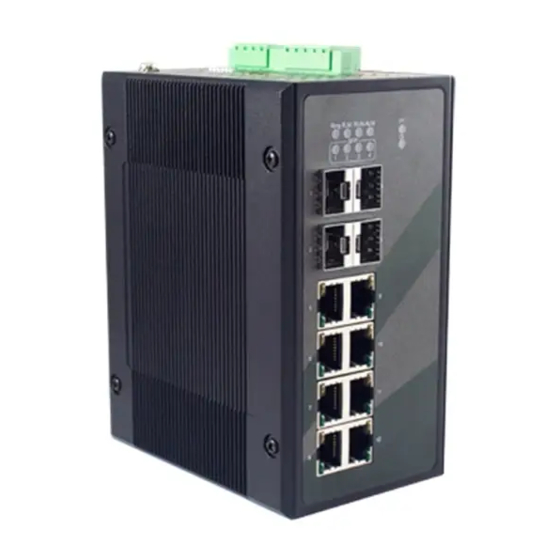

Front View
EHG9508-2SFP EHG9508-2SFP-HV EHG9512-4SFP EHG9512-4SFP-HV
1 2 3 4 6 7 1 2 3 4 6 1 2 3 4 6 7 1 2 3 4
Ring R.M. RUN ALM P1 P2 Ring R.M. RUN ALM P1 Ring R.M. RUN ALM P1 P2 Ring R.M. RUN ALM
5 10 5 10 5 10 5
SFP DI SFP DI SFP DI SFP
1 2 1 2 1 2 3 4 1 2
1 3 1
8 8
8 8
1 2 1 2 2 4 2
5 9 5
3 6 3 6 6 10 6
9 9
9 9
4 7 4 7 7 11 7
5 8 5 8 8 12 8
1. Ring LED 6. PWR1 LED
2. RUN LED 7. PWR2 LED
3. Ring Master LED 8. 1000 BASE-X SFP Slots
4. Alarm LED 9. 10/100/1000 BASE-T(X) RJ-45 Ports
5. SFP Ports LEDs 10. DI Status
1. Grounding Screw
2. DIP Switches
1
3. RS-232 Console
5
Relay
2
4. Reset button
+ 6
DI
5. Relay Output 1 with current carrying
7
3
V1–
8 6. Digital Input
V1+
Console
V2– 9
4
7. Frame Ground
V2+
Reset
!
8. Terminal for Power 1
9. Terminal for Power 2
1. If you have purchased the wall mount kit,
proceed to place the screws on the back
of the device as show in (Fig. 1).
2. Although internal grounding has been
done inside, in order to ensure overall
maximum performance and protect your
device, it is still strongly advised to ground
the device properly; hazardous ESD can
come into contact and damage your
equipment. On the power terminal block,
there is a terminal for Frame Ground, you
6
can choose whether to connect it to the
grounding or you may opt to connect to
P1
10
DI the grounding screw next to the terminal
3 4
3
block ( the one chosen should be connect-
4
ed at all times ) (Fig. 2)
9
10
1
11
12
3. You can then choose whether to plug in the other
peripheral ports at this point or do it later depending
on the actual location of the device or level of
comfort for performing such operation.
Remeber to plug in the protective caps for the
unused SFP.
2
4. Once the plate has been firmly put in place, proceed
1
to mount the whole device as shown in (Fig.
3).Proceed to (Fig. 4) if you want to remove the
device from DIN-Rail.
5. Next we can then proceed to connect the device to
the LAN (switch or PC, depending on the case), take
care on using the RJ-45 connector; after this we can
then proceed to the device's settings
2
■ The opening to the sides are for the device's
heat dissipation please never obstruct or
cover them with any objects or try to insert
them through it.
■ This switch's factory IP by default is 10.0.50.1
you can access the device by its Web UI
once it is connected to a physical network (or
using Management Utility, for more informa-
tion on Management Utility, please refer to its
manual). Please be aware that the PC
needed for this procedure needs to be in the
same subnet, or you may refer yourself to
the device User's Manual.
Name Color Status
P1 On Power is being supplied through this power input
Green
P2
Off Power is not supplied through this power input
Alarm is triggered by user defined events
On
Red
ALM
Off Alarm is not triggered by user defined events
Blinking AP firmware is running normally
RUN Green
System is not ready or halt
On/Off
All the Rings are running normally
On
Relay
+
DI
Ring Green
Blinking Ring is in protection state
V1–
V1+ Off Ring is disabled
Console
V2–
V2+
Reset
!
On The device is a Master of the Ring
R.M. Green
Off The device is a Slave of the Ring
On Port is linked
SFP
Green Blinking Data is transmitting on this port
Off No data is transmitting on this port
On Status is on
Green
DI
Off Status is off
On Ethernet is connected at 1000Mbps
Ethernet is connected at 100Mbps
Amber Blinking
Ethernet is connected at 10Mbps
Off
LAN
Ethernet is connected
On
Green Data is transmitting on this port
Blinking
Ethernet is disconnected
Off
Relay
+
DI
V1–
V1+
Console
V2–
V2+
Reset
!
