Atop EH2316 Series Hardware Installation Manual

Unmanaged Ethernet Switch
EH2316 Series
Version 1.0
Updated in November, 2018
P/N : 89900520G

Inside the package you will find the following items:

■ Unmanaged Ethernet Switch x 1
■ 5-Pin 5.08mm Lockable Terminal Block x 1
■ DIN-Rail Kit (Already mounted to the device) x 1
■ Wall Mount Kit Optional to purchase (include M3L5 screws*2)
■ Installation Guide with Warranty Card x 1
Never install or work on electrical or cabling during periods of lightning activity.
Never connect or disconnect power when hazardous gases are present.
Warning:Hot Surface Do Not Touch. RESTRICTED ACCESS AREA: The equipment
should only be installed in a Restricted Access Area.
This equipment should be installed indoor and not connect directly with equipment
installed outdoor.
I n d o o r I n d o o r

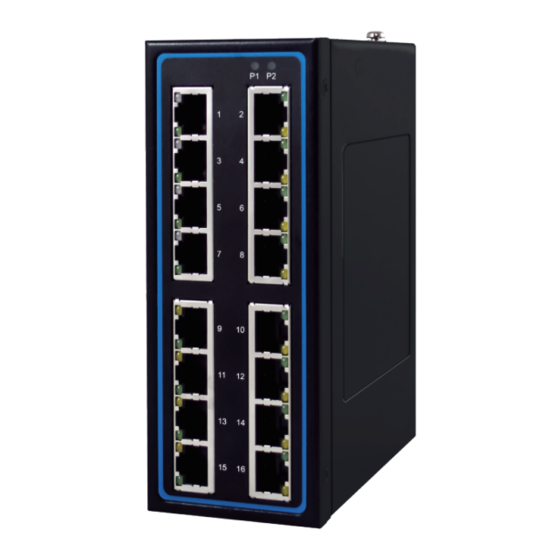

Front View

EH2316-2G
3 4
P1 P2
1 9
1
1G
2 10
2
3 11
2
4 12
5 13
6 14
2 2
7 15
8 16
1. 10/100/1000 BASE-T(X) RJ45 Ports
2. 10/100 BASE-T(X) RJ45 Ports
3. PWR1 LED
4. PWR2 LED
1. If you have purchased the wall mount
kit, proceed to place the screws on the
back of the device as show in (Fig. 1).
2. Although internal grounding has been
done inside, in order to ensure overall
maximum performance and protect
your device, it is still strongly advised
to ground the device properly; hazard-
ous ESD can come into contact and
damage your equipment. On the power
terminal block, there is a terminal for
Frame
whether to connect it to the grounding
or you may opt to connect to the
grounding screw next to the terminal
block ( the one chosen should be
connected at all times ) (Fig. 2)
You can then choose whether to plug in the other peripheral ports at this point
3.
or do it later depending on the actual location of the device or level of comfort
for performing such operation.

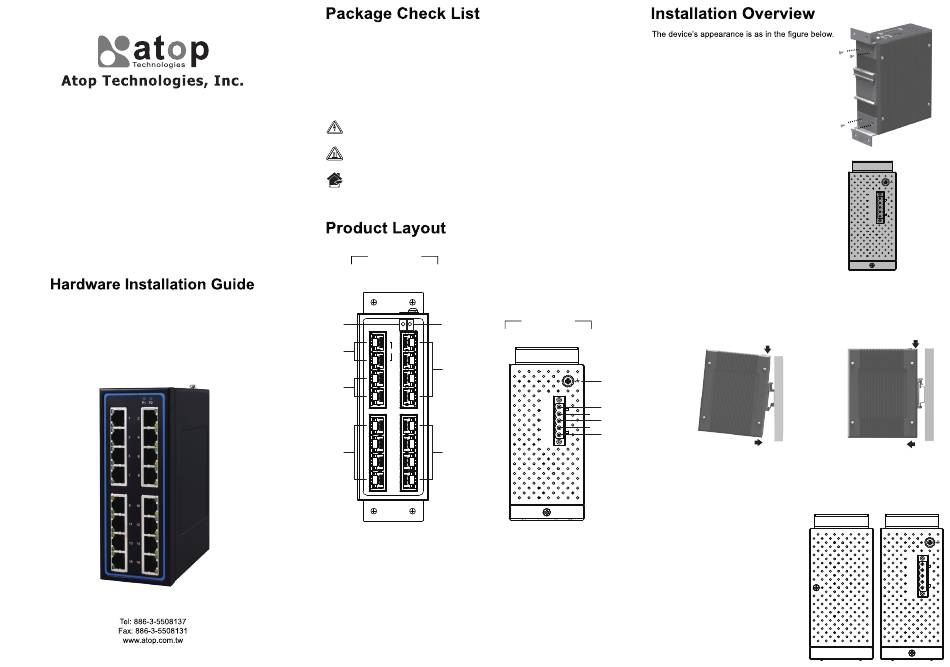

TOP View

5
6
F.G.
7
V1-
8
V1+
9
V2-
10
V2+
(Fig.3)
4.
Once the plate has been firmly put in place, proceed to mount the whole
device as shown in (Fig. 3).Proceed to (Fig. 4) if you want to remove the
device from DIN-Rail.
5. Next we can then proceed to connect
the device to the LAN (switch or PC,
depending on the case), take care on
using the RJ-45 connector; after this
5. Grounding Screw
we can then proceed to the device's
6. Functional Ground
settings
7~8. Terminal for Power 1
■ The opening to the sides are for the
9~10. Terminal for Power 2
device's heat dissipation please never
obstruct or cover them with any
objects or try to insert them through it.
Ground, you can choose F.G.
V1-
V1+
V2-
V2+
1
2 (Fig.4)
(Fig.1)
(Fig.2)
1
2
F.G.
V1-
V1+
V2-
V2+
