2.5 Digital Outputs

Module Output:
Module Output Type:
Voltage Range:
Max. Output Current:
Isolation:

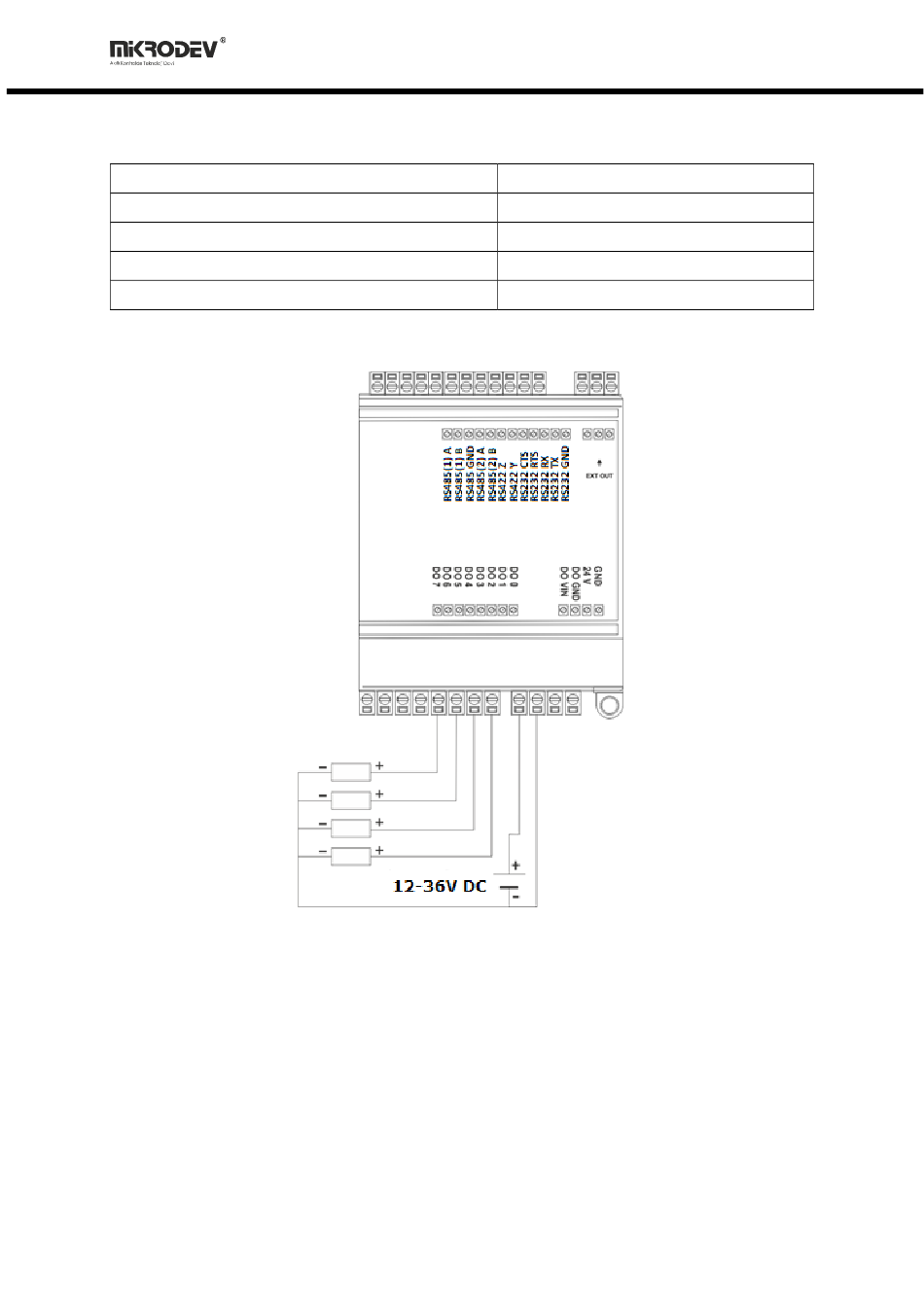

Figure 15 RTU302 Digital Output Connection Diagram
21
8 Channel, Mosfet Output
PNP Transistor
12-36V DC
2A @ 30V DC
Optical
RTU300 SERIES – HARDWARE MANUAL
