RTU302 GENERAL INFORMATION

2.1 Physical Interfaces

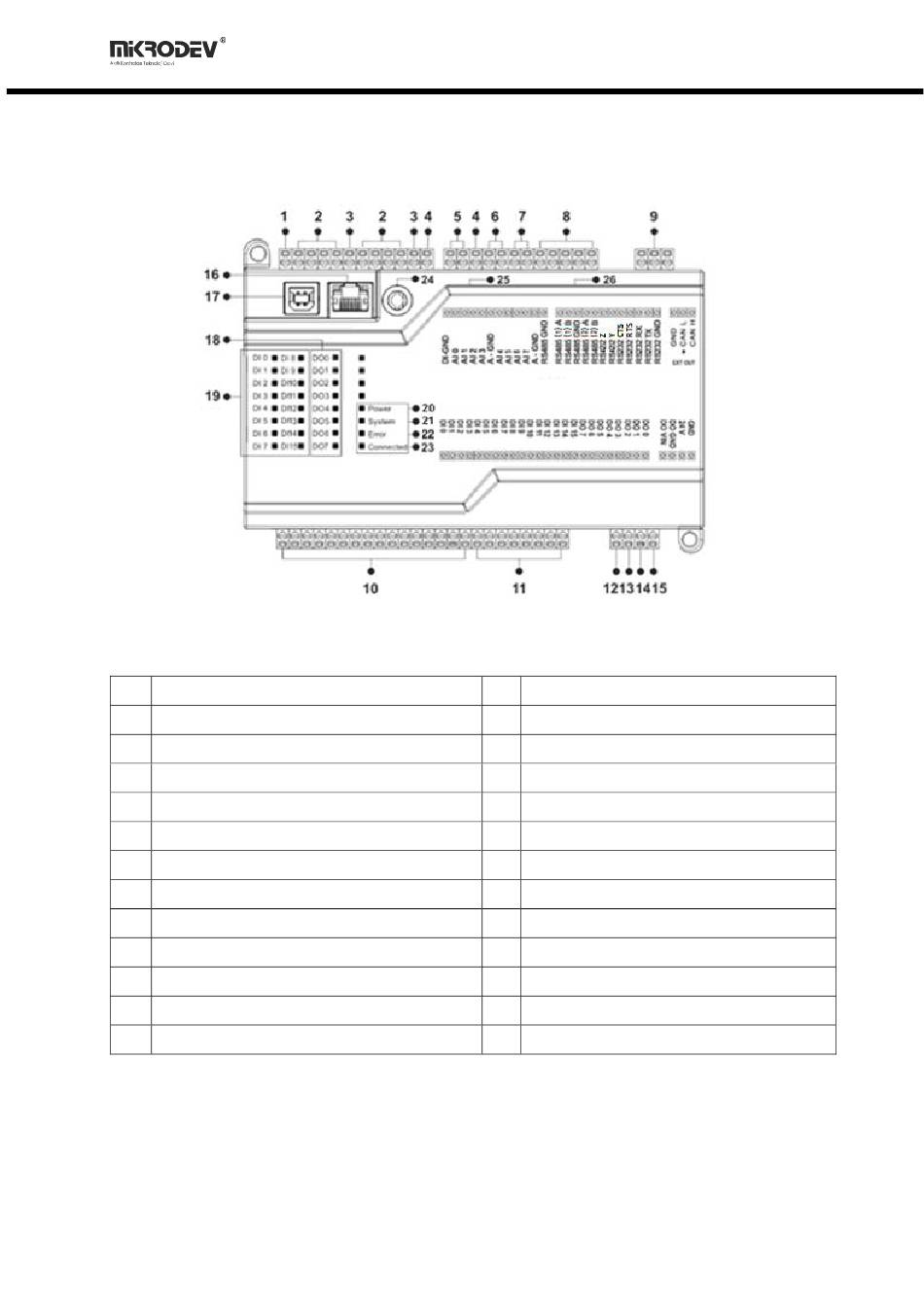

Figure 12 RTU302 Connector and Physical Interfaces
1 Digital Input GND Connection
2 Analog Input Connection
3 Analog Input GND Connection
4 RS485 GND Connections
5 RS485 Port 1 Connections
6 RS485 Port 2 Connections
7 RS422 Connections
8 RS232 TX-RX Connection
9 CANBUS Connection
10 Digital Input Connections
11 Digital Output Connections
12 Digital Output Supply(Vin) Connection
13 Digital Output GND Connection
17
14 Device Power (V+) Connection
15 Device Power (V-) Connection
16 Ethernet Port
17 USB Port
18 Digital Output Status Information LED
19 Digital Input Status Information LED
20 System Power LED
21 System Running LED
22 System Error LED
23 Protocol Data Transfer LED
24 Antenna Connection
25 SIM Card Slot
26 SD Card Slot
