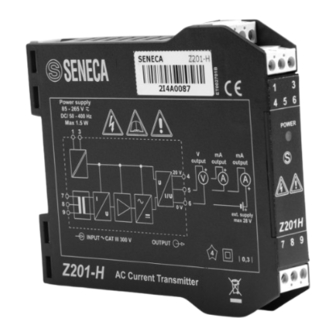

Z201-H
EN
AC CURRENT TRANSMITTER

GENERAL SPECIFICATIONS

The Z201-H current converter measures the simple harmonic
alternating current applied at the input and generates a standard mA or
V signal directly proportional to the current measured.
5 AAC or 10 AAC full scale current input
0-20 mA or 4-20 mA output with active or passive connection;
0-10 VDC, 2-10 VDC, 0-5 VDC, or 1-5 VDC
Settable by internal jumper and DIP-switch
High precision: 0.3% FS
Power supply presence indication on front panel
3-way isolation: 4000 VAC between power supply / input and output

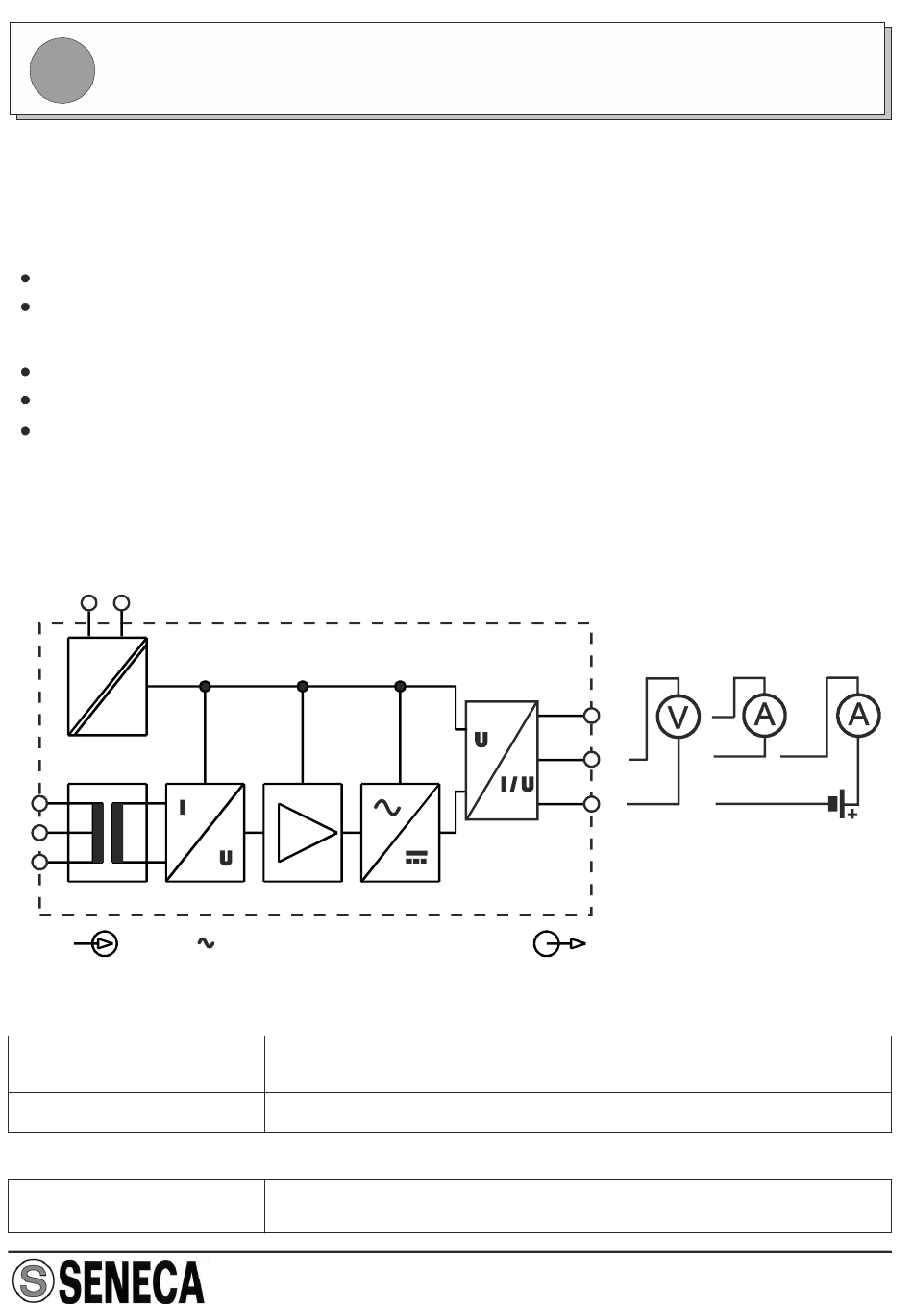

BLOCK DIAGRAM

Power supply
1 3
7
8
9
INPUT

TECHNICAL SPECIFICATIONS

Power Supply Specifications

Power Supply:
Consumption:

Input Specifications

Current Input:
85-265 V
AC/DC 50 to 400 Hz
CAT III 300 V
85-265 VDC or VAC from 50 to 400 Hz;
Isolation: input / output : 4000 VAC
< 2 W at full load; < 20 mA @ 230 VAC
Alternating Current: 0-5 AAC
Selectable by terminal wiring.
20 V
0 V
OUTPUT
MI00141 -E 2
V mA
output output
+
+
4
5
6
or 0-10 AAC,
USA ENGLISH - 1/4
mA
output
+
ext. supply
max 28 V
