SENECA
S
Serie Z
Serie Z
EN
EN
WITH ISOLATED BIPOLAR OUTPUT
WITH ISOLATED BIPOLAR OUTPUT
Installation
Installation
Installation
Installation
Manual
Manual
Manual
Manual
Contents:
- General specifications
- Technical specifications
- Installation rules
- Selection: input/ measuring scale
- Selection: output type
- Setting START and END at will
- Frontal LEDs indications's
- Advanced settings
- Electrical connections
- Default conditions
- Purchase order codes
- Module layout
- Decommissioning and disposal
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
Manuals and configuration software are available at www.seneca.it
This document is property of SENECA srl. Duplication and reprodution are forbidden, if not
Contents of present documentation refers to products and technologies described in it. All technical data
contained in the document may be modified without notice. This document is subject to periodical revision.

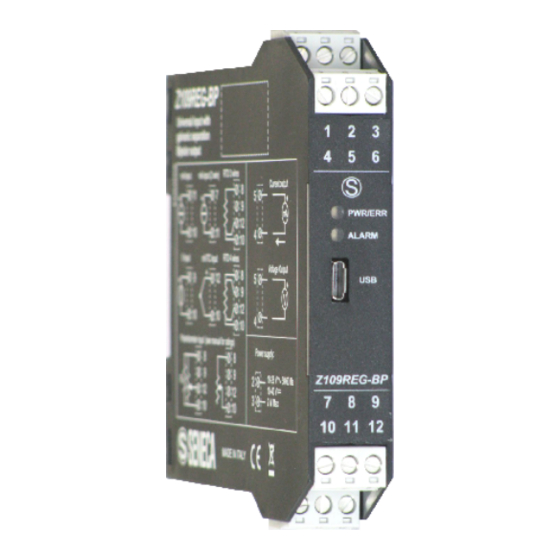

Z109REG-BP
Z109REG-BP
UNIVERSAL CONVERTER
UNIVERSAL CONVERTER
MI003471-E
authorized.
ENGLISH 1/8
Advertisement
Table of Contents
Related Manuals for Seneca Z109REG-BP
Summary of Contents for Seneca Z109REG-BP
- Page 1 Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287 Manuals and configuration software are available at www.seneca.it This document is property of SENECA srl. Duplication and reprodution are forbidden, if not authorized. Contents of present documentation refers to products and technologies described in it. All technical data contained in the document may be modified without notice.
-
Page 2: General Specifications
Front panel indicating: power on, off scale or setting error and alarm status. Facility for programming the following through PC: START-END scale, additional input types, square root extraction, filter, burn-out etc. (See: www.seneca.it) TECHNICAL SPECIFICATIONS Universal Input Sampling Variable from 240 sps with 11 bit + sign resolution frequency to 15 sps with 15 bit + sign resolution (tipical values). -
Page 3: Environmental Conditions
Errors related to max Accuracy Thermal Linearity measuring range stability error TC input type: J, K, E, T, N 0.1% 0.01%/°K 0.2°C <1% (1) TC input type: R, S 0.1% 0.01%/°K 0.5°C <1% (1) TC input type: B (2) 0.1% 0.01%/°K 1.5°C <1% (1) - Page 4 Power supply Voltage 10 – 40 V; 19 - 28 V 50 – 60 Hz Consumption Max: 2W Electrical connections Removable 3-way screw terminals 5 mm pitch MicroUSB frontal plug Dimensions / Module box Dimensions L: 100 mm; H: 112 mm; W: 17,5 mm Module box PA6, black Isolations...
- Page 5 SELECTION: INPUT / MEASURING SCALE The type of input is selected by setting the SW1 DIP-Switches group at the side of the module. Each type of input is matched with a number of beginnings scale (START) and full scale (END) selectables with the SW2 DIP-Switches group. The frames above show the START or END values for every selected input.
- Page 6 (*) START or END Thermocouple T Thermocouple B Thermocouple E Thermocouple N are set in memory with the PC or with a programming push buttons. N° START START START START -200°C 50°C 0°C 500°C -200°C 50°C -200°C 200°C ...
-
Page 7: Advanced Settings
Use this connection with 2 wire Use this connection if the input measurement. The transducer is current come from outside. powered by the module Z109REG-BP. Thermocouple input type: J, K, R, S, T, B, E and N. Voltage input (-20 – +20 V) mV/TC Input voltage for Full scale >... -
Page 8: Module Layout
Z109REG-BP 17,5 mm 100,0 mm Variations of standard parameters are possible by software (see www.seneca.it). For more information about a list of all register and their function consult the USER manual. DECOMMISSIONING AND DISPOSAL Disposal of Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collections programs).
