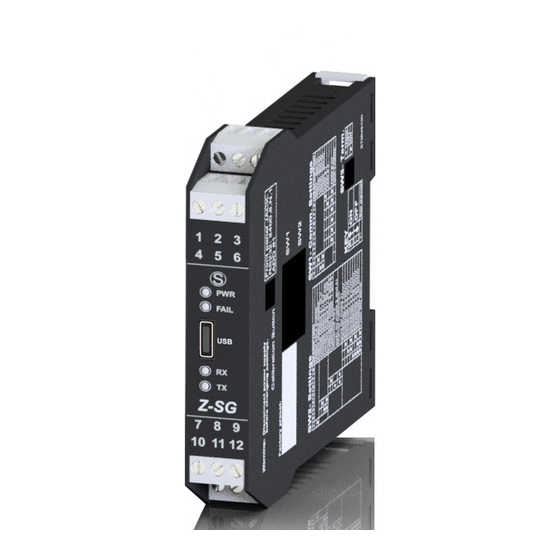

Seneca Z-SG Installation Manual
Strain gauge converter
Hide thumbs
Also See for Z-SG:
- User manual (18 pages) ,
- User manual (24 pages) ,
- Installation manual (8 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION MANUAL
Z-SG / Z-SG2
Strain Gauge converter
EN
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
For manuals in other languages and the configuration software, visit www.seneca.it/products/z-sg
or www.seneca.it/products/z-sg2
MI00532-0-E
1/8
Advertisement
Table of Contents
Related Manuals for Seneca Z-SG
Summary of Contents for Seneca Z-SG
- Page 1 INSTALLATION MANUAL Z-SG / Z-SG2 Strain Gauge converter SENECA s.r.l. Via Austria, 26 – 35127 – PADOVA – ITALY Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287 For manuals in other languages and the configuration software, visit www.seneca.it/products/z-sg or www.seneca.it/products/z-sg2 MI00532-0-E...
- Page 2 WARNING: The full content of this manual must be read before any operation. The module must only be used by qualified electricians. Specific documentation is available at www.seneca.it/products/z-sg2 The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to electrostatic discharges.
- Page 3 TECHNICAL SPECIFICATIONS EN61000-6-4 Electromagnetic emissions, industrial environment. EN61000-6-2 Electromagnetic immunity, industrial environment. STANDARDS EN61010-1 Safety ModBUS WARNING RS485 the maximum working voltage between any Communication terminal and ground must be less than 50 INSULATION Input Output Vac / 75Vdc Power Supply 1500 dc /...
- Page 4 • Automatic tare reset SETTING THE SW1 DIP-SWITCHES: Z-SG / Z-SG2 VERSION The position of the DIP-switches defines the Modbus communication parameters of the module: Address and Baud Rate The following table shows the values of the Baud Rate and the Address according to the setting of the DIP-switches:...
- Page 5 SETTING THE SW2 DIP-SWITCHES: Z-SG VERSION SW2 DIP-SWITCH SETTING DIGITAL I/O TYPE + CALIBRATION BUTTON ENABLING Selects digital input. Enables calibration button Selects digital output OUTPUT 0 - 10 V 0 - 5 V 0 - 20 mA 4 - 20 mA...
- Page 6 (*) Check that the device in question is included in the list of products supported by the Easy Setup APP in the store. ELECTRICAL CONNECTIONS Power supply and Modbus interface are available using the Seneca DIN rail bus, via the IDC10 rear connector, or the Z-PC-DINAL-17.5 accessory.
- Page 7 Power supply Terminals 2 and 3 can be used to provide the module with power supply as an Vac/Vdc alternative to the connection using the Z-PC-DINx bus. The upper limits must not be exceeded as this can seriously damage the module. If the power + Vac/Vdc supply source is not protected against overload, a safety fuse with a 2.5 max permissible value must be installed in the power supply line.
- Page 8 Product information sales@seneca.it This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Stated data may be modified or supplemented for technical and/or sales purposes.
