Audio System H Series Owner's Manual page 5

S
peaker
H
3000.1

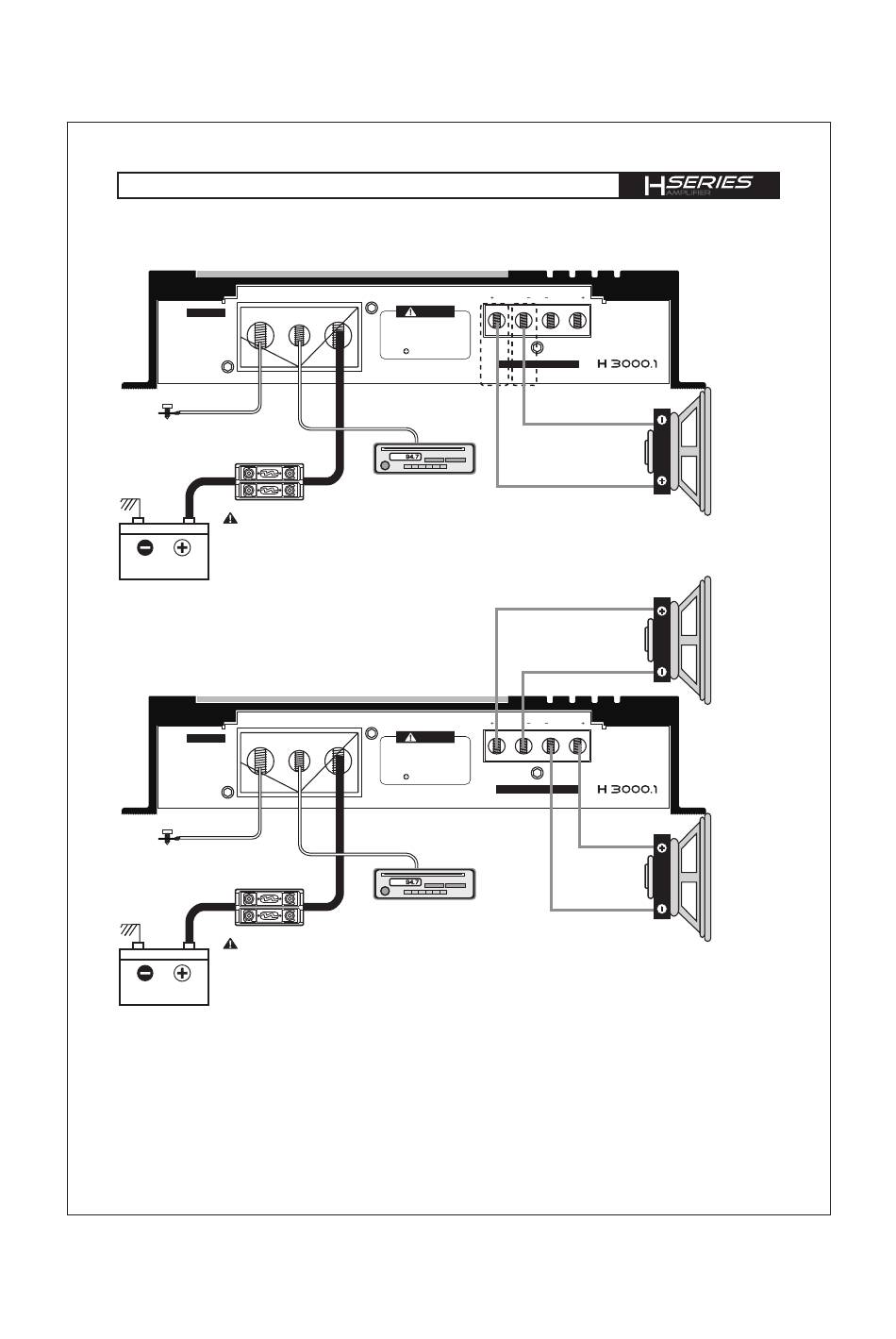

1. Single Amp Speaker Connection
GND
POWER
GROUND
GROUND
Recommended Ampere
300A (External Type Fuse)
BATTERY
GND
POWER
GROUND
GROUND
Recommended Ampere
300A (External Type Fuse)
BATTERY
Please note that this unit is a mono block unit and only has one channel.
Speaker A and Speaker B are just labeled for illustration purposes only.
Connecting to either the positive or negative of either of the two connections will end in the same result
as both positive connections (or both negative connections) are tied together inside the unit.
For example, if you connect two 2 ohm subwoofers, the amp will parallel the connections for an 1 ohm
load.
c
onnection
REM +12V
Caution
This amplifier is not supplied
with internal fuse in itself.
Make sure you install
in-line fuse holder from
the terminal of battery.
to REMOTE Turn-on
from HEAD UNIT
REM +12V
Caution
This amplifier is not supplied
with internal fuse in itself.
Make sure you install
in-line fuse holder from
the terminal of battery.
to REMOTE Turn-on
from HEAD UNIT
-5-
SPEAKER-A SPEAKER-B
SPEAKER OUTPUT
SPEAKER-A SPEAKER-B
SPEAKER OUTPUT
Speaker
Impedance
1 ~ 4 ohm
Speaker
Impedance
2 ~ 8 ohm
Speaker
Impedance
2 ~ 8 ohm
