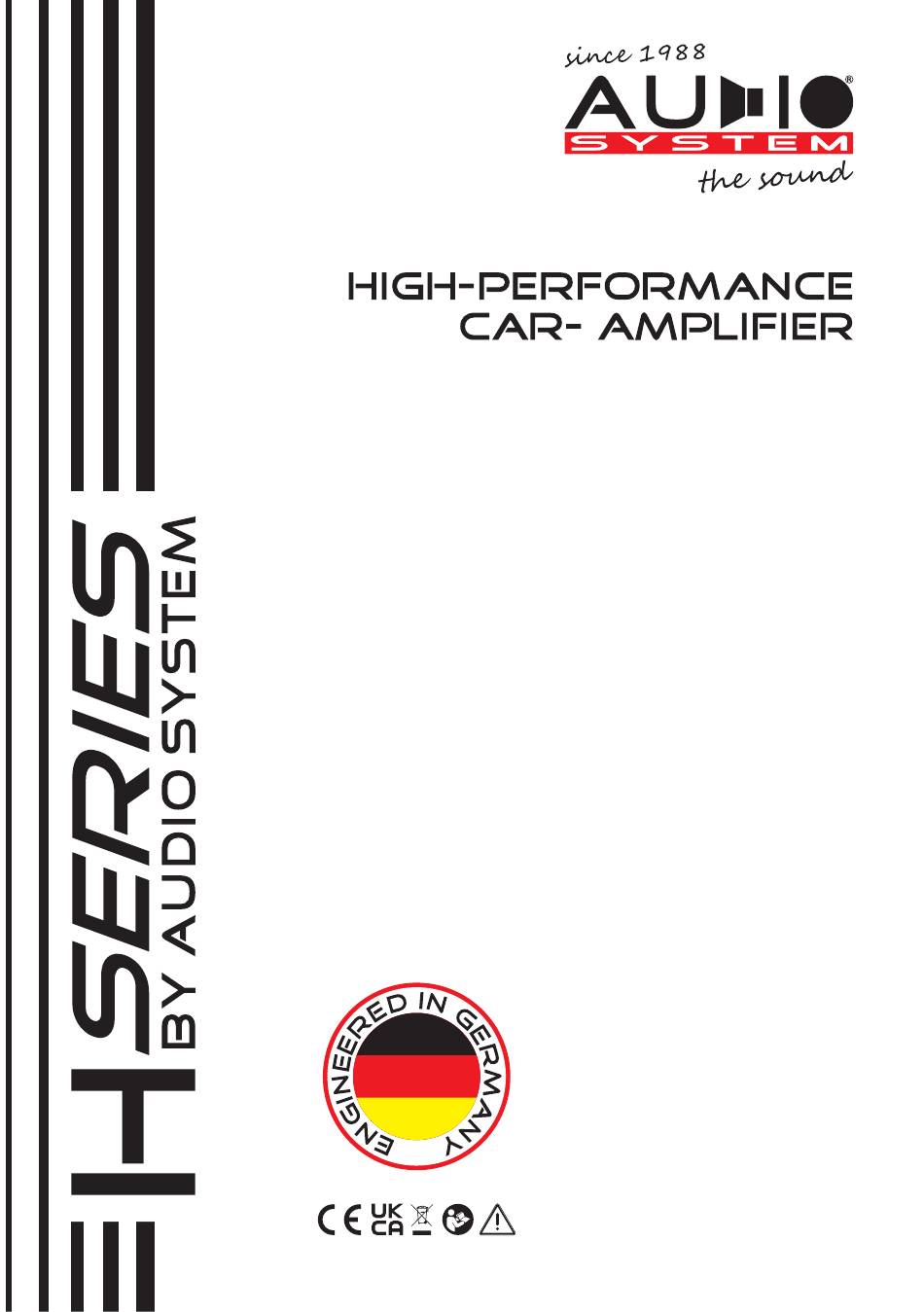

- Page 1 H-1400. 4 D H-1600. 4 D 24V designed and engineered by audio system Germany...
- Page 2 features Congratulation on your purchase of your new H-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer. IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement.
- Page 3 H-1400. 4 D / H-1600. 4 D 24V H-1400. 4 D Remote GROUND Max.30 cm BATTERY 1. Battery disconnection: First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection: Connect the GND (ground) terminals of the amplifier with the car chassis. Keep this cable as short as possible (not longer than 50cm) and use a suitable cross section (35mm²...
- Page 4 RTC / RTC PC to control the output level of channels 3 + 4 (LP must be switched on). AUDIO SYSTEM germany , recommends that you leave your amplifier set by a specialist company, specialist dealer or a specialist to meet your needs.
- Page 5 H-1400. 4 D / H-1600. 4 D 24V 2-Channel Bridged Subwoofer- Impedance 2 ~ 8 ohm 4-Channel Stereo Speaker- Impedance 1 ~ 4 ohm 2-Channel Stereo + 1-Channel Mono Bridged Speaker- Impedance 1 ~ 4 ohm Subwoofer- Impedance 2 ~ 8 ohm...
- Page 6 CArbon series Trouble Shooting by audio system This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off.
- Page 7 specifications H-1400. 4 D Power Supply Voltage 10 - 16 V Rated Power Output at 14,4 V -RMS power @ 1 Ohm stereo 4x 350 W -RMS power @ 2 Ohm stereo 4x 300 W -RMS power @ 4 Ohm stereo 4x 200 W -RMS power @ 2 Ohm bridged 2x 700 W...
- Page 8 H-1400. 4 D / H-1600. 4 D 24V (SIDE VIEWS) H-1400. 4 D si n ce 1 9 8 8 g e r m a n s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken...
