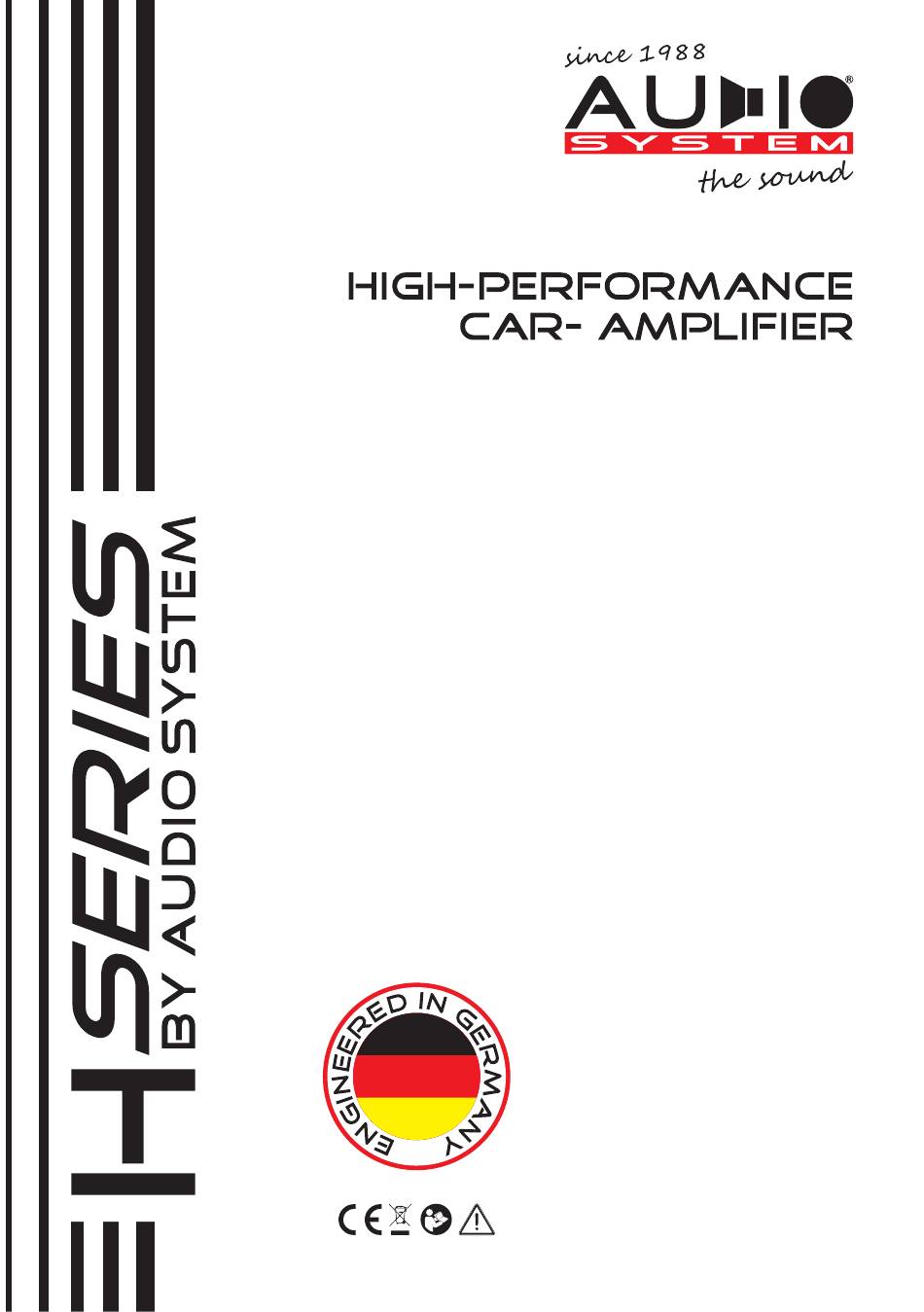

  • Page 1 H-5000.1 D designed and engineered by audio system Germany...
  • Page 2 features Congratulation on your purchase of your new H-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer. IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement.
  • Page 3 H-5000.1 D Max.30 cm Max.30 cm Max.30 cm GROUND BATTERY 1. Battery disconnection: First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection: Connect the GND (ground) terminals of the amplifier with the car chassis. Keep this cable as short as possible (not longer than 50cm) and use a suitable cross section (35mm²...
  • Page 4 In this regard, Audio System Germany recommends to adjust your amplifier through a specialized service center, dealer or specialist.

  • Page 5: Single Amplifier Operation

    1. Single amplifier operation Max.30 cm Max.30 cm Max.30 cm GROUND BATTERY No internal fuse ! An external fuse - according to the power input - Speaker- has to be used for protection of the amplifier impedance 1 ~ 4 Ohm Max.30 cm Max.30 cm Max.30 cm...
  • Page 6 1. Dual amplifier operation (LINK-MODE) Max.30 cm Max.30 cm Max.30 cm MASSE BATTERIE No internal fuse ! An external fuse - according to the power input - Speaker- has to be used for protection of the amplifier impedance NO WARRANTY CLAIMS 2 ~ 8 Ohm POSSIBLE WHEN USING LINK-MODE!!!

  • Page 7: Troubleshooting

    CArbon series Trouble Shooting by audio system This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off.

  • Page 8: Specifications

    550(W) x 63(H) x 256(L) mm si n c e 1 9 8 8 g e r m a n s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken designed and engineered by audio system Germany...
