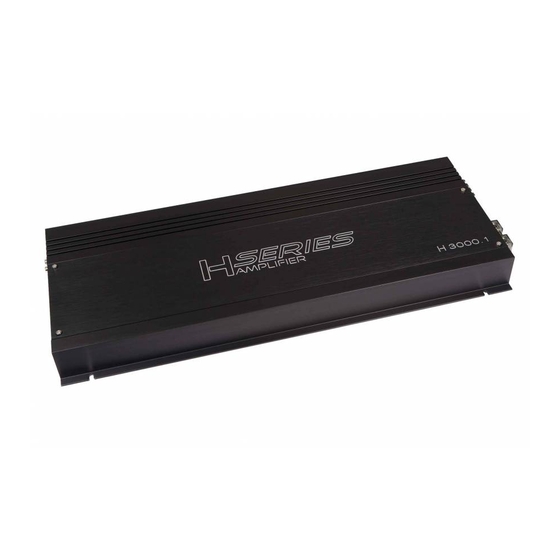

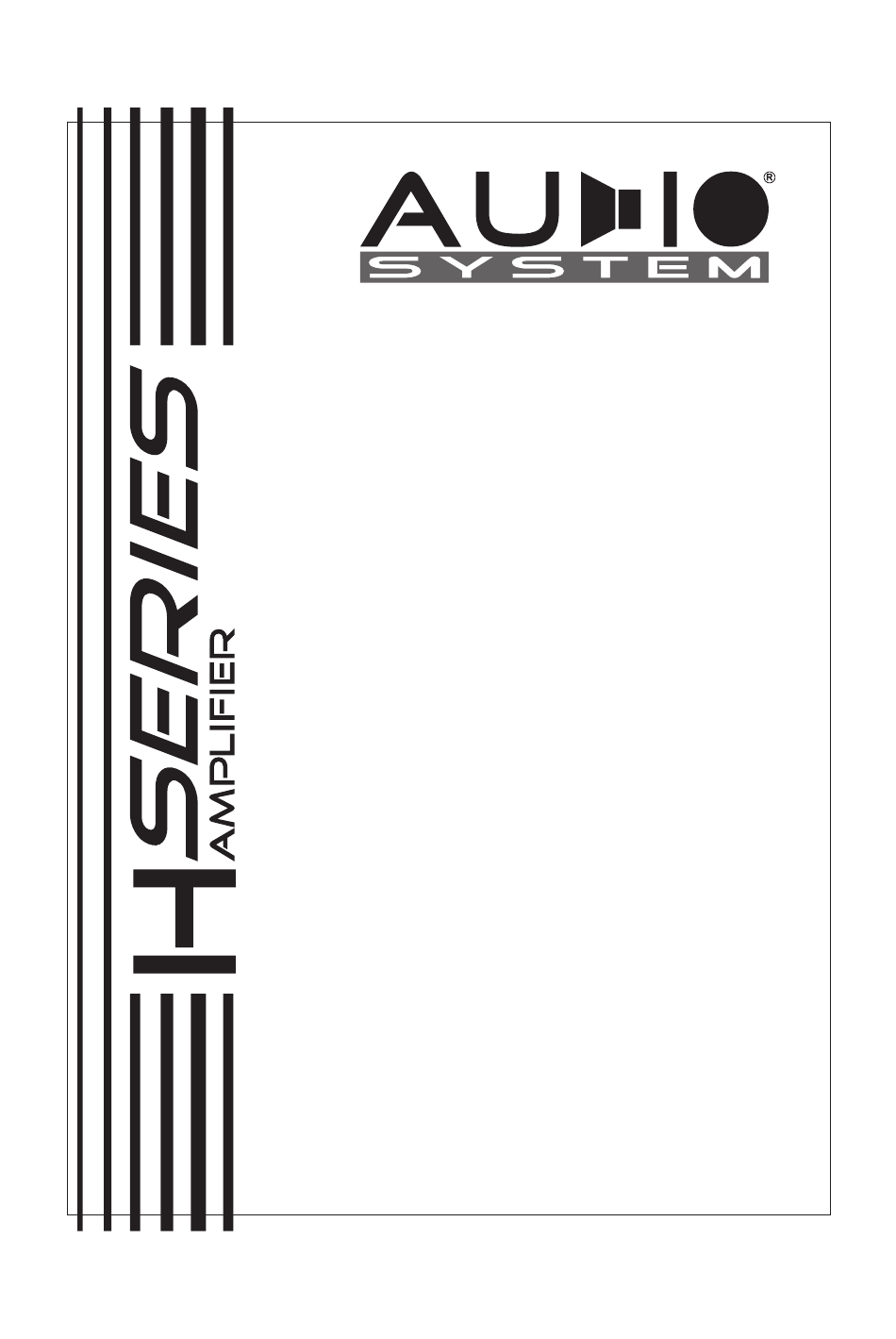

- Page 1 High-Performance Car- amplifier owner‘s manual H 3000.1 designed and engineered by audio system Germany...
- Page 2 Congratulations on your purchase of your new series amplifier. Before install your power amplifier, we recommend that youread the owner’s manual carefully and follow the instructionson making the proper connections and mounting We advice that the amplifier be install by an authorized service center as professional mounting and connections will prolong the warranty of your amplifier.
- Page 3 ower ONNECTION 3000.1 +12V SPEAKER-A SPEAKER-B Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. SPEAKER OUTPUT to REMOTE Turn-on from HEAD UNIT GROUND Recommended Ampere 300A (External Type Fuse) BATTERY Battery disconnection...
-
Page 4: Rca Connection
INPUT BR IN to "BR OUT " of the master unit The H SERIES amplifier offers RCA-Inputs, which are connected through cinch cables with the preamplifier-outputs of the head unit. In this regard, AUDIO SYSTEM recommends to adjust your amplifier through a Germany specialized service center, dealer or a specialist. - Page 5 peaker onnection 3000.1 1. Single Amp Speaker Connection +12V SPEAKER-A SPEAKER-B Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. SPEAKER OUTPUT to REMOTE Turn-on from HEAD UNIT GROUND Speaker Impedance...
- Page 6 peaker onnection 3000.1 2. Dual Amp Speaker Connection +12V SPEAKER-A SPEAKER-B Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. SPEAKER OUTPUT to REMOTE Turn-on from HEAD UNIT GROUND GROUND Recommended Ampere...
- Page 7 rouble hooting This power amplifier is featured with a efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. AMPLIFIER IS NOT - ground connection professional connected? POWERED UP, NO LED...
-
Page 8: Specifications
peCIFICATIONS 3000.1 Power Supply Voltage 10 -16 V Rated Power Output at 14,4 V -RMS power @ 2 ohm linkable/dual mono 5400W x 1CH -RMS power @ 1 ohm mono 3000W x 1CH -RMS power @ 2 ohm mono 1500W x 1CH -RMS power @ 4 ohm mono 750W x 1CH Signal to Noise Ratio...
