CHANGING THE CHANNEL PURGE FILTER
1. Turn off the Power Supply to the cabinet
2. Using the provided 8mm Allen wrench, remove the mechanical compartment font panel, if the unit has a side component
cabinet. For cabinets with components mounted in the top, remove the access panel or top (depending on model)
3. Take the tube off the barb of the Filter and unscrew the base from the tubing
4. Replace Filter, by screwing it onto the tubing and putting the tubing on the top barb of the filter. CAUTION: Make sure the
Filter and threaded fitting are exactly aligned. DO NOT OVERTIGHTEN
5. Press the RESET button on the Filter Cabinet Control Box. If using EndoTrack, go to the Service screen to reset the HEPA
Replacement Timer. Refer to the EndoTrack User Guide
6. Replace the mechanical compartment front panel, if the side component cabinet or cover plate Filters are mounted in
the top

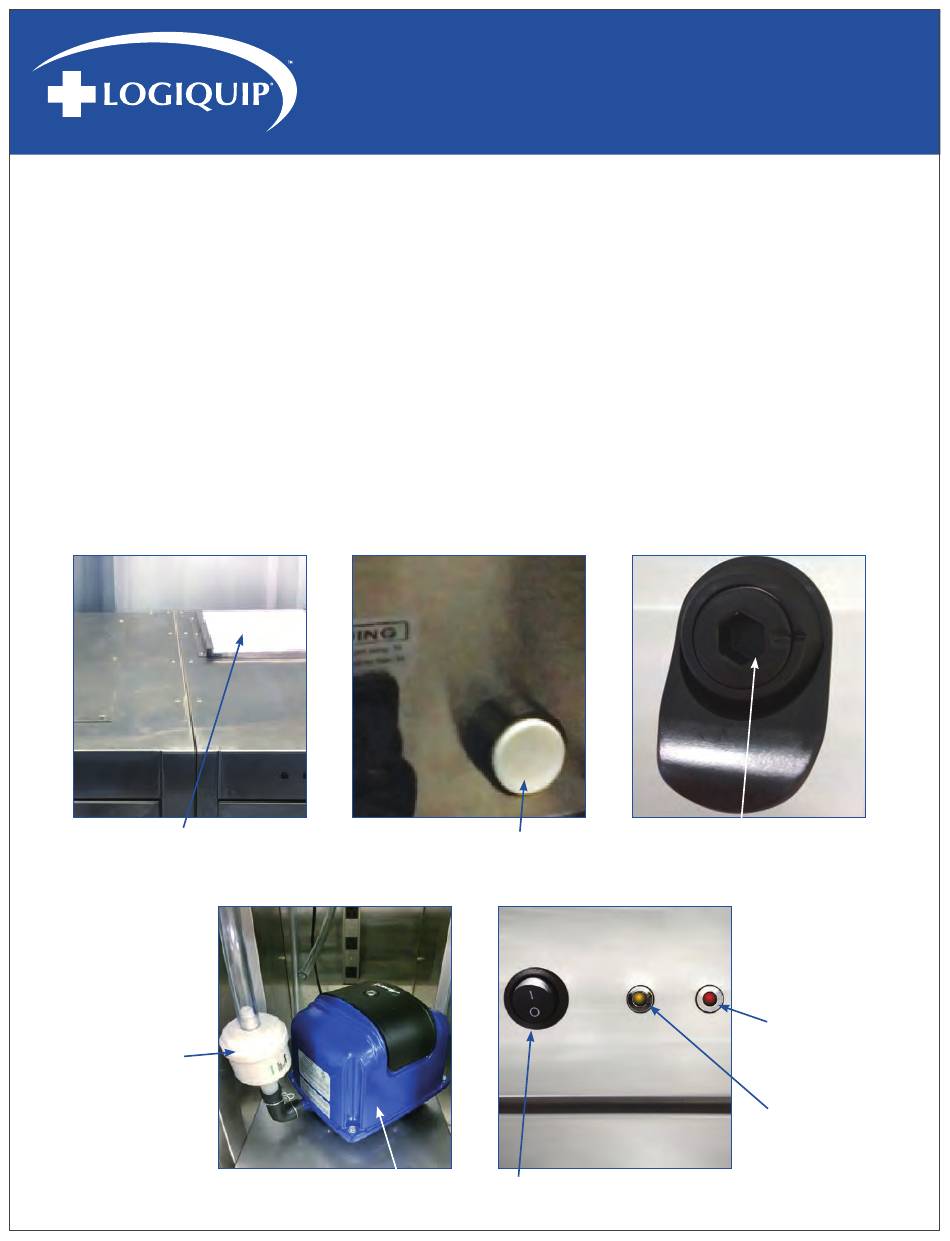

External Filter
(Side Mount Cabinet)
Channel Purge
HEPA Filter
www.logiquip.com
ENDOSCOPE DRYING CABINETS HEPA FILTER
Filter Reset Button - Resets Timer For
Channel Purge Filter Replacement
Channel Purge
Air Pump
Power Button
USER GUIDE
Side Cabinet Removal
Cabinet Filter
Alert LED
Channel Purge Filter
Alert LED
