OPERATION

• For instructions for using Dri-Stor EndoTrack, the touchscreen featuring controlled user access and indicator of
scope cleanliness life-cycle, please refer to the separate dedicated Dri-Stor EndoTrack User Guide
• The system consists of an enclosed cabinet that provides a clean source of HEPA Filtered air to ensure a
maintained environment for the Endoscope storage
• For the Endoscope Channel Purge, a series of Quick Connector ports are located in the cabinet. Each part
accepts one tubing set, and when connected, allows the flow of low pressure HEPA Filtered air into the respective
channels of the attached Endoscope to facilitate drying of the channels. If there is no tubing set connected to a
port, then that port is closed and there is no flow of air through it. The connectors are specific for every make and
model of Endoscope, and cannot be used for anything other that the Endoscope they were specified for. Please
contact LogiQuip if you require more tubing and connector sets or if your Endoscope inventory changes
• Once the system is plugged in and the power switch is turned on, the cabinet will purge HEPA Filtered air within
the cabinet and any Endoscope that has a tubing set connected in the cabinet. The air quality filtered by the
HEPA is to 0.3 micron at 99.97% efficiency. The cabin air runs constantly and the Channel Purge operation is 30
minutes on and 20 minutes off
• The light remains on at all times. There is a switch on the light if you wish to turn it off. For cabinets equipped with
EndoTrack, there is a light switch on the touchscreen
3
4
4 |

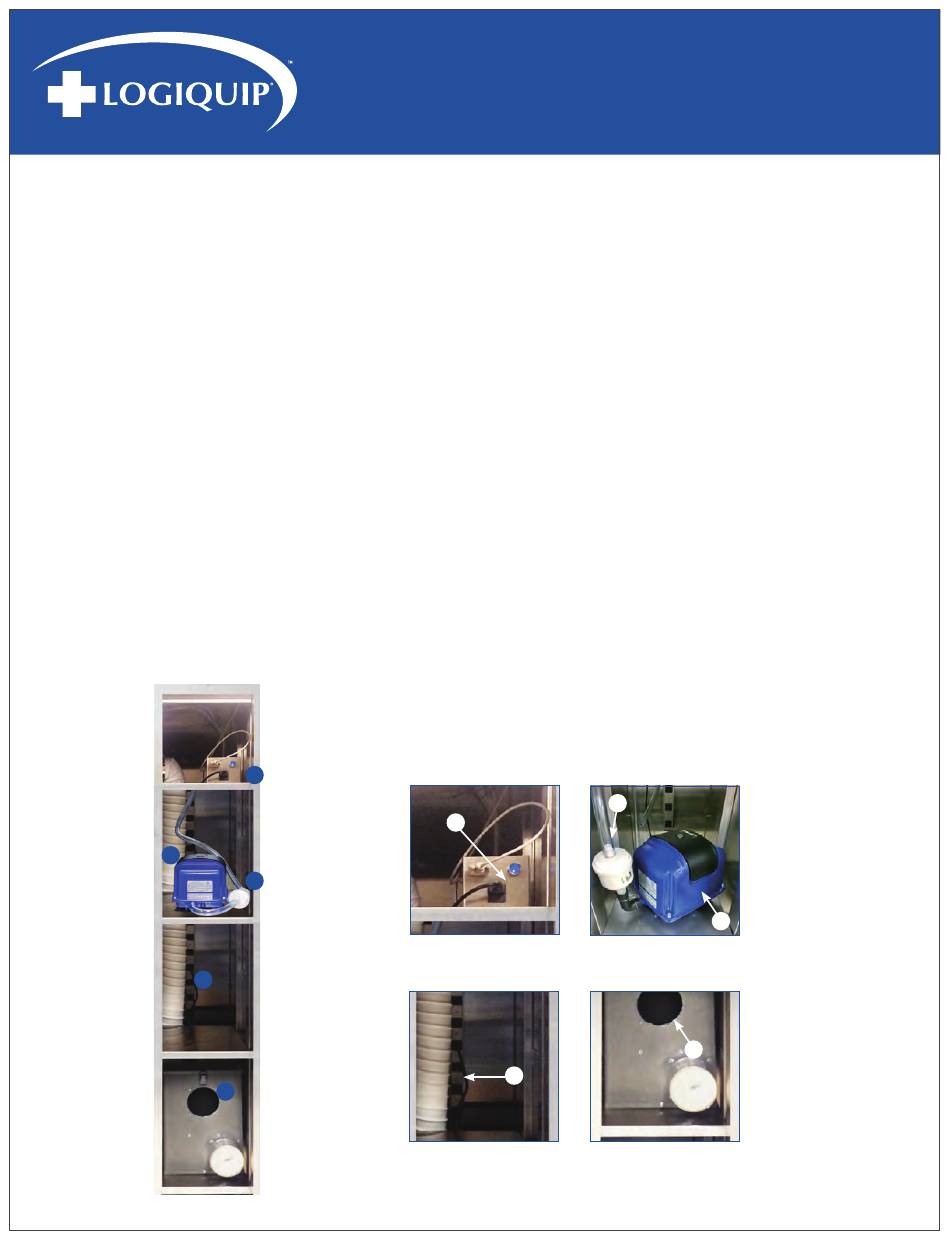

ENDOSCOPE DRYING CABINETS HEPA FILTER
1
2
5
Controller - Air Pumps for
Channel Purge are plugged
into this, which controls
pump interval time (Supports up to 10 scopes)
1
4
Power Strip
USER GUIDE
Channel Air Pump
2
3
Channel HEPA Filter
5
Cabinet HEPA Filter
