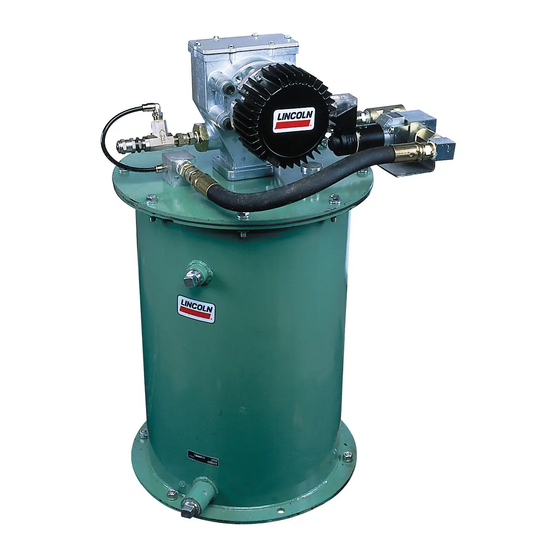

SKF Lincoln FlowMaster II Installation And Maintenance Manual
Rotary driven electric pump, 24 v dc
Hide thumbs
Also See for Lincoln FlowMaster II:
- User and maintenance instructions (76 pages) ,
- User and maintenance instructions (100 pages) ,
- User and maintenance instructions (60 pages)
Subscribe to Our Youtube Channel
Related Manuals for SKF Lincoln FlowMaster II
Summary of Contents for SKF Lincoln FlowMaster II
- Page 1 Installation and maintenance guide FlowMaster II rotary driven electric pump, 24 V DC Model 85728, series “A” Model 85729, series “A” Model 85730, series “A” May 2013 Date of issue Form number 404567 Section Page 356B...
-
Page 2: Table Of Contents
Table of contents Description W a r n i n g General description Do not exceed 3,000 psi (207 bar) max- Safety ......imum supply inlet electric pressure or Models 85728, 85729 and 82730 are 3,500 psi (241 bar) maximum outlet... -
Page 3: System Operation
System operation Installing the pump Putting pump into operation Operation with model 85530 Place the unit in the approximate location system controller making sure that electric power connections Filling reservoir are accessible. Mark center locations of the When model 85530 times out, it will initiate holes at the bottom of the reservoir. - Page 4 Outlet check service Follower Safety unloader valve The pump will not build up sufficient lubri- If follower foam appears to be damaged or Safety unloader valve (31) († fig. 3, and 4 cant pressure if the outlet check (7) is fouled. does not wipe the sides of the container page 6 and 7) is not serviceable and should Foreign material may lodge beneath the...
- Page 5 Fig. 1 Pump with controller Control wiring diagram using model Must have pressure switch 85530 lubrication system controller Bat - 24 V DC Bat + Cut 24 V DC pin Power sw Terminal B 24 V DC pin Terminal A Bat + Bat - 24 V DC...
-
Page 6: Dimensions
Fig. 3 Models 85728 and 85729 15-1/8 [384 mm] 13-7/8 [352 mm] Bolt hole circle 1/2 [12.7 mm] 18.7 Mounting holes 6 x 60 apart 40° 20° Section B-B "A" Section A-A Dimensions Model Dimension “A” 85728 29.2 in. (741 mm) 85729 37.4 in. - Page 7 Fig. 4 Model 85730 16-3/4 [425 mm] 15-1/2 [394 mm] Bolt hole circle 19/32 [15 mm] Mounting holes 20.0 4 x 90 apart 45° Section B-B 38.4 Section A-A...
- Page 8 Fig. 5 Outlet check assembly (7) / in. NPTF Fig. 6 Fig. 7 Electric vent valve (27) Low level port Fig. 8 Low level indicator...
- Page 9 Fig. 9 Follower assembly (36) SECTION C-C Section C—C...
-
Page 10: Repair Parts List
Fig. 10 Conduit box assembly (13) (model 85730 only) - Page 11 Service parts Item Description Qty. Model 85728 Model 85729 Model 85730 Hose assembly 272711 272711 272711 Hex head screw, -16 x 1 50015 50015 50015 Lockwasher, 66220 66220 66220 Male run tee 276370 276370 276370 Adapter 12989 12989 12989 Adapter 12213 12213 12213...
- Page 12 Service parts (continued) Item Description Qty. Model 85728 Model 85729 Model 85730 Cover, low level port 277681 277681 277681 Gasket, low level port 274540 274540 274540 Indicator bracket 361020 361020 361020 Retaining ring 68888 68888 68888 Cable assembly 276852 277421 278018 O-ring 249532...
-
Page 13: Troubleshooting
Troubleshooting Condition Possible cause Corrective action Pump does not operate. No electric power to pump. Turn on or connect electric supply to pump. • Motor Relay Failure Replace Relay • Motor Overheated Turn power off for 10 minutes and restart. •... - Page 14 Lincoln industrial Special limited 5 year warranty- This warranty gives you specific legal limited oil meters, limited fluid control standard warranty rights. You may also have other rights that valves, aod (air-operated diaphragm vary by jurisdiction. pumps) Customers not located in the Western Standard limited warranty Lincoln warrants the 712 series control Hemisphere or East Asia: Please contact...
- Page 15 This page left intentionally blank.
- Page 16 SKF brings innovative solutions to OEMs and production facilities in every major industry world- wide. These five competence areas include bearings and units, seals, lubrication systems, mechatronics (combining mechanics and electronics into intelligent systems), and a wide range of services, from 3-D...
