Original Instructions, Revision 1 August 2020
MICRO METER
Vari Speed

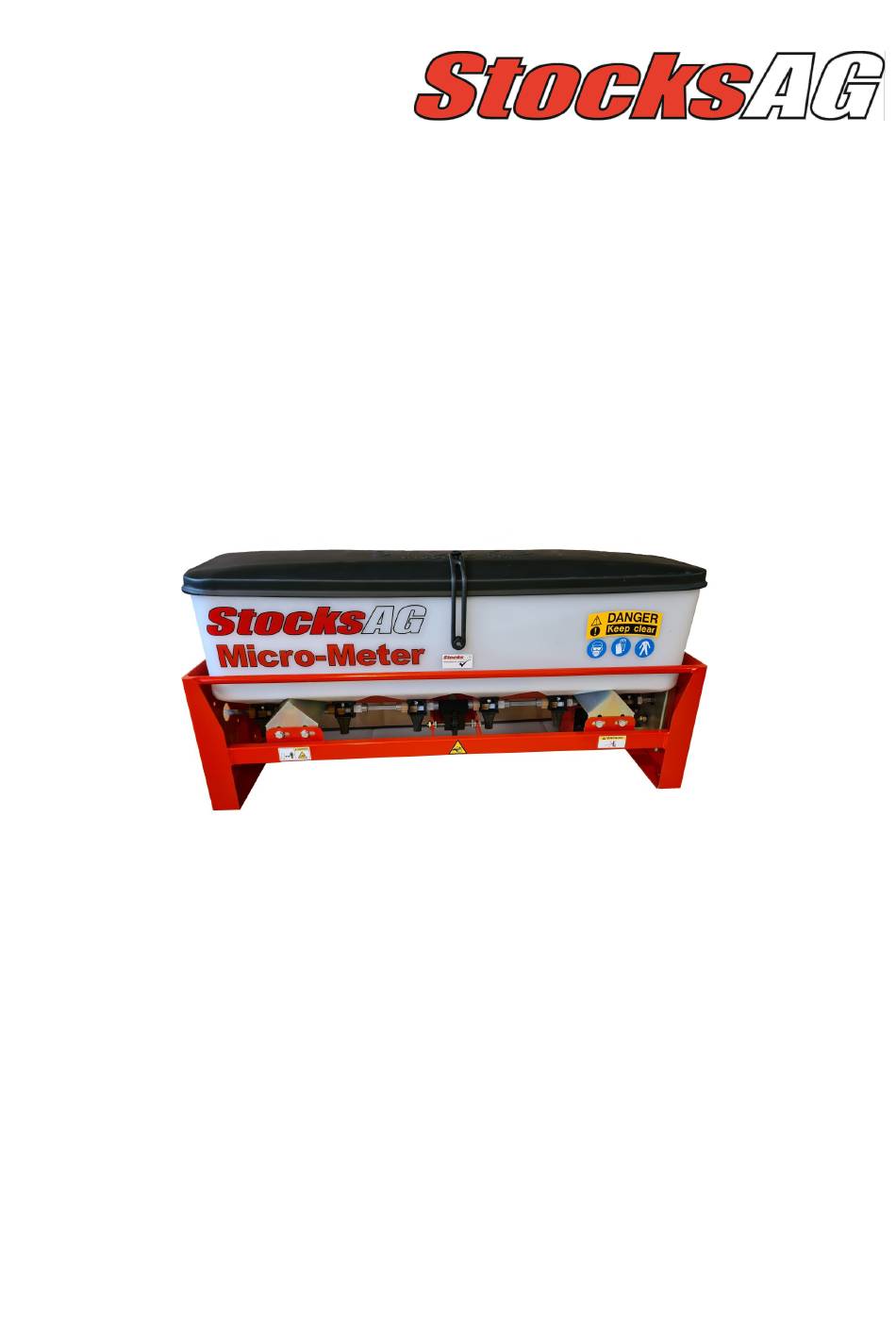

Original Operating Manual and parts list
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stocks AG Micro Meter Vari Speed
Summary of Contents for Stocks AG Micro Meter Vari Speed
- Page 1 Read carefully before installation and operation This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk...
-
Page 2: Table Of Contents
Index 2020 Section Page No. Index General information Technical data Intended use Unintended use Contents of the EC Declaration of Conformity Contents of the UKCA Declaration of Conformity Machine identification Warranty Safety Emergency Stop Instructions Maintenance Safety warning decals and safety signs 10-1 Clearing a blockage 10-2... -
Page 3: General Information

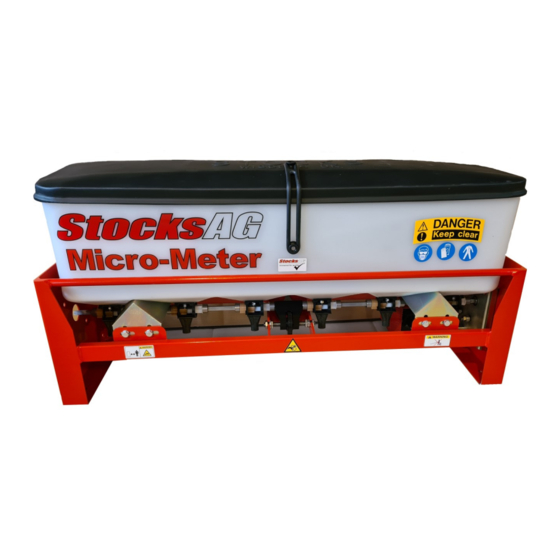

This Operating Manual forms part of the machine and must be readily available for the operator who must read and follow the points covered before use 3-2 Technical data Model: Micro Meter Vari Speed 60 litre hopper capacity; Net weight: 36kg... -
Page 4: Contents Of The Ec Declaration Of Conformity
Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:... -
Page 5: Contents Of The Ukca Declaration Of Conformity
Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:... -
Page 6: Machine Identification
MICRO METER MK 3 MODEL 217200 SERIAL No MANUFACTURED 2021 BY:- STOCKS AG LIMITED CROMWELL ROAD WISBECH, CAMBS. PE14 OSD, UK The machine the serial number decals are mounted on the steel chassis to one side of the hopper 6-2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine which will serve as a warranty certificate). -
Page 7: Safety
After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information. -
Page 8: Emergency Stop Instructions
8-1 Emergency Stop instructions 1. Power down the control system immediately by switching the main power switch on the left hand side of the cab control panel to the upper position A V ari Speed Control Panel 2. Disconnect the power supply by unplugging the power cable or removing the inline fuse. 8-2 Maintenance WARNING Always ensure the power supply is disconnected before any... -
Page 9: Safety Warning Decals And Safety Signs
9 Safety Warning Decals Important ; observe this safely decals on the machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger moving parts Risk of serious injury whilst the machine is in operation WARNING Risk of injury... -
Page 10: Clearing A Blockage
10-1 Clearing a blockage Disconnect the main power supply Ensure the parent machine is stationary, switched off, and parked on level ground Ensure the main power switch on the control panel is off and unplug the power supply cable or disconnecting the power cable from the vehicle battery. -
Page 11: Machine Mounting
11-1 Machine Mounting It is not practical to supply tailored mounting brackets for every implement on the market, and so the final attachment of the Micro Meter to the implement is the responsibility of the supplying dealer or end user. NOTE Vari Speed machines can be used in conjunction with a second hopper unit (see page 15) As Micro Meters are gravity fed machines hoses must be routed downhill with sufficient fall to allow the product to flow freely. -
Page 12: Electrical Components
12-1 Electrical Components 1. GA115B Control Panel 2. MM107B 5m Fused Power Cable 3. MM108B 6m Control Connector Cable 4. MM044C Feed Motor 12-2 Electrical Connections Power requirement is 12 volts with a minimum recommended continuous supply of 15 amps The machine is supplied with a control panel and all wiring Ensure the power supply cable (2) is connected direct to the vehicle battery to ensure maximum power. -
Page 13: Control Boxes
13 Vari Speed Control Panel This is a simple and effective low cost manually operated electric control used to instantly start and stop the feed motor at headlands, and uses a dial control to set the feed motor speed and thus the application rate. It is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain the rate, or can manually increase or decrease application rates on the move using the dial. -
Page 14: Feed Shaft Speed
14-1 Feed Shaft Speed Feed shaft speed is a combination of gearbox setting and motor speed Fitted with a 2 speed motor and 2 speed mechanical gearbox the machine offers 4 different shaft speed options. High and Low motor speeds are selected at the control panel (see page 13) Two long bolts and spacers locate the motor and its mounting plate to the gearbox. -
Page 15: Optional Add On Units
15-1 Optional Add On Unit To increase the number of outlets available or to increase the spread width an Add On Unit is available which is driven by the Vari Speed drive unit The Add On Unit can be bolted to the side of the Vari Speed drive unit or mounted to one side and driven by the 45cm feed shaft adaptor supplied (cut to length as required) -
Page 16: Product Calibration
16-1 Product Calibration You will have to perform a catch and weigh test to establish the flow rate of product, and will need a suitable container to collect the product being metered and an accurate set of scales to weigh kilograms and grams, and a timer. -
Page 17: Parts Drawing
17 Micro Meter Vari Speed Parts drawing... -
Page 18: Parts List (Page 1)
18 Micro Meter Parts list (page 1) Item Part # Description Remarks MM002G Gearbox Complete MM150 C’ Rail 2x1m MM021 Hopper (60Ltr) MM024 Feed Drive Shaft MM044C Metering Motor MM048 Drive Socket MM049A Square Drive Block MM100 Feed Cup MM101C Deep Groove Roller (Optional) (not shown MM102A Washer) MM101B... -
Page 19: Parts List (Page 2)
5m Fused Power Cable not shown MM108B 6m Connector Cable not shown Decal “Serial No. / CE UKCA Mark” not shown MD002 Decal “Stocks AG” not shown MD020 Decal “Stocks MICRO-METER” not shown MD052 Warning Decal Kit not shown MD024 Decal “Made in Britain”...
