H3C MSR3610-I Series Installation, Quick Start

H3C MSR3610-I Gateway Series Installation Quick Start-6W104
H3C MSR3610-I

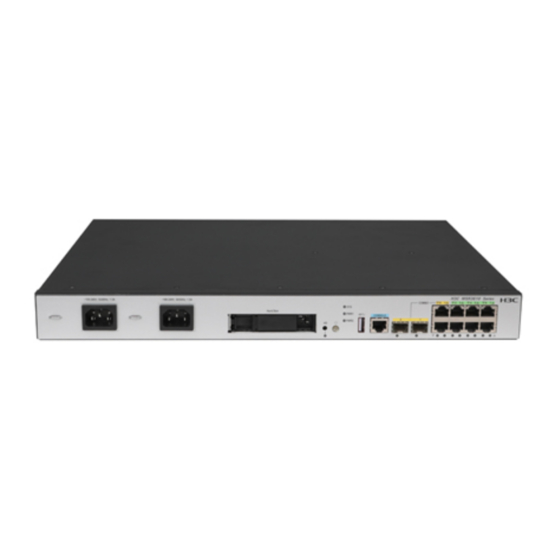

The installation methods for MSR3610-I gateways are similar. This document uses a MSR3610-I-DP
gateway as an example. MSR3610-I系列的安装方式类似，本手册仅以MSR3610-I-DP举例。

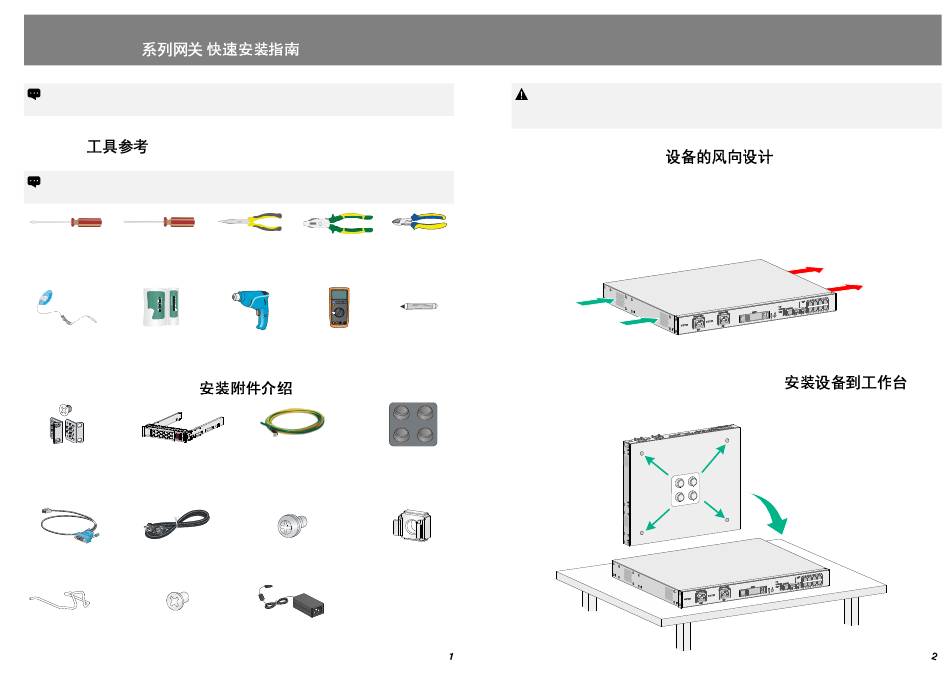

Tool list
No installation tools are provided with the device. Prepare them yourself as required.
设备不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flat-head screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
ESD wrist strap Network cable tester
防静电腕带 测线仪
Installation accessories
Mounting brackets
(including M4 screws)
Drive carrier
挂耳组件
硬盘盒
（含M4挂耳螺钉）
Console cable Power cord
配置电缆 电源线
Power cord retainer clip Drive fastening screw
电源线卡钩 硬盘紧固螺钉
-6W104
Needle-nose pliers Wire stripper Diagonal pliers
尖嘴钳 剥线钳
Heat gun Multimeter
热风枪 万用表
Grounding cable Rubber feet
接地线
M6 screw (user supplied) Cage nut (user supplied)
M6 机柜螺钉(用户自备) 浮动螺母(用户自备)
PoE adapter (supported only by
MSR3610-I-IG/3610-IE-IG)
PoE电源（仅MSR3610-I-IG/3610-IE-
IG支持）
When working with the device, always wear an ESD wrist strap, and make sure the strap makes good
!
skin contact and is reliably grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好接地。
Airflow of the device
Make sure the air inlet and outlet vents of the device are not blocked and the installation site has a good
ventilation system. 请确保设备的进、出风孔不被遮挡，并将设备安装在具有良好通风散热系统的环境中。
The device uses left-to-right air aisles. 设备采用左进右出的风道设计。
斜口钳
Marker
记号笔
Mounting the device on a workbench
脚垫
