H3C MSR2600-6-X1[2600-15-X1] Gigabit Ethernet Integrated Service Gateways Installation Quick Start-5W102

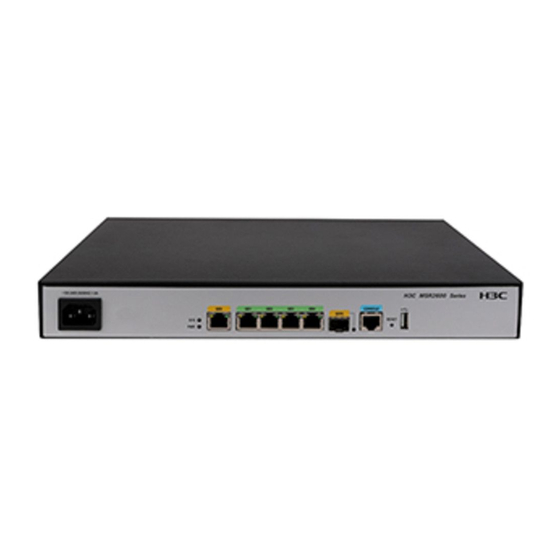

H3C MSR2600-6-X1[2600-15-X1]

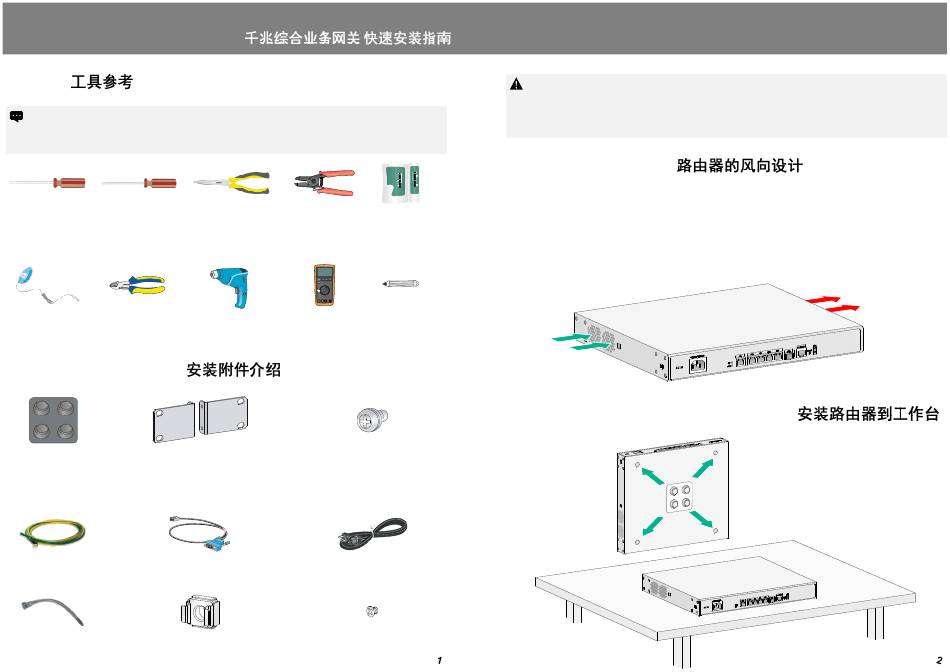

Tool list
The installation tools are not provided with the gateway. Prepare them yourself as
required.
路由器不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead Phillips
screwdriver screwdriver
一字螺丝刀 十字螺丝刀
ESD wrist strap Diagonal pliers
防静电腕带 斜口钳
Installation accessories
Mounting brackets
Rubber feet
脚垫
Grounding cable
Console cable
接地线 配置电缆
Cable tie Cage nut (user supplied)
扎带
浮动螺母(用户自备)
Needle-nose Wire-stripping
Network cable
pliers pliers
尖嘴钳 剥线钳
Multimeter
Heat gun
热风枪 万用表
4 × M6 screws (user supplied
挂耳 for the MSR2600-15-X1)
M6 机柜螺钉×4
（MSR2600-15-X1需要用户自备）
Power cord
电源线
4 × M4 screws
M4 挂耳螺钉×4
-5W102
When working with the gateway, always wear an ESD wrist strap, and make sure the
!
strap makes good skin contact and is reliably grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良
好接地。
Airflow of the gateway
Make sure the air inlet and outlet vents of the gateway are not blocked and the installation site
has a good ventilation system.
tester
The gateway uses left-to-right air aisles.
测线仪
请确保路由器的进、出风孔不被遮挡，并将路由器安装在具有良好通风散热系统的环境中。
MSR2600-6-X1/2600-15-X1路由器采用左进右出的风道设计。
Marker
记号笔
Mounting the gateway on a workbench
