ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a nor-
mal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

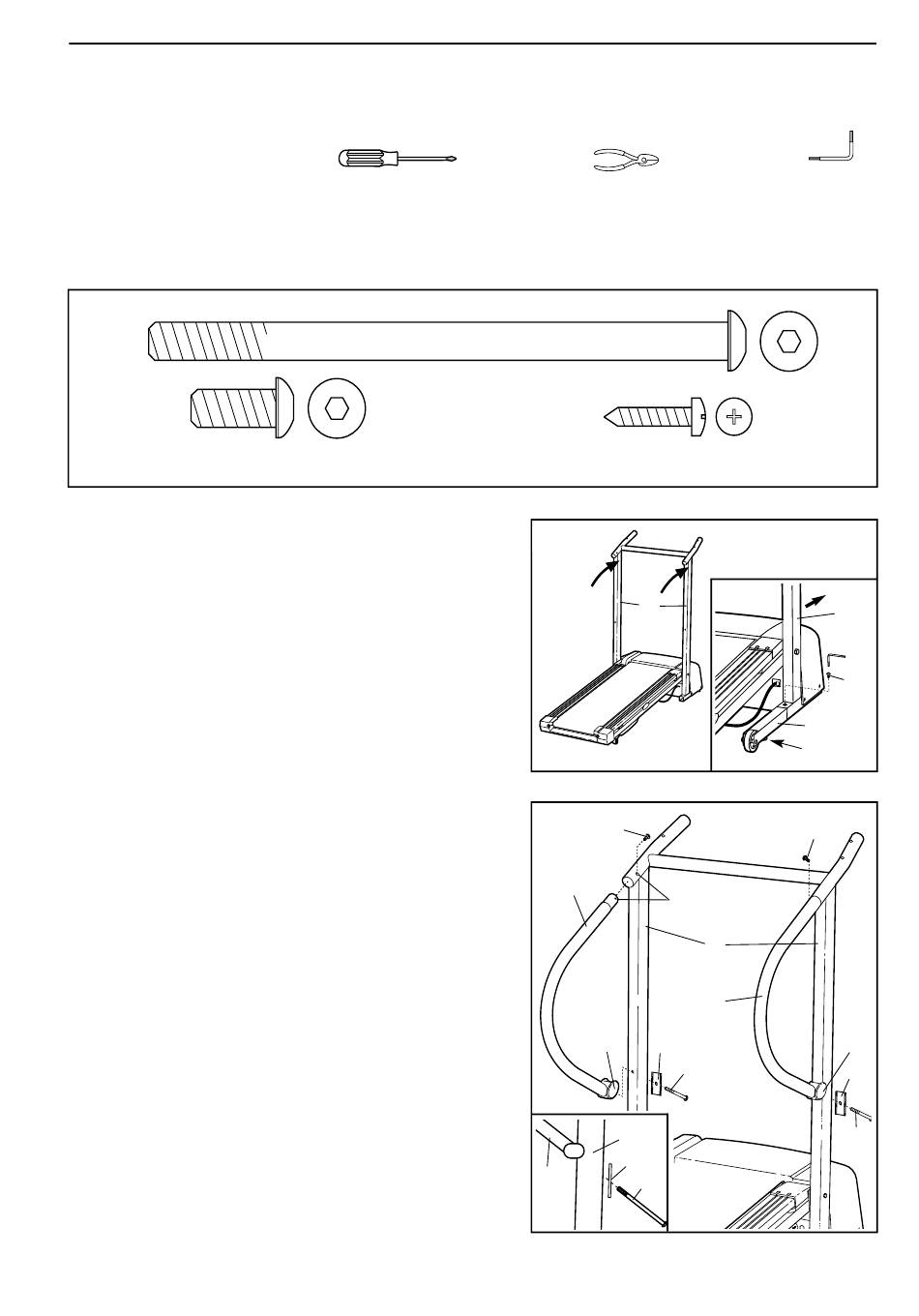

Extension Leg Screw/Handrail Screw (53)–4
1. Carefully raise the Uprights (11) until the treadmill is in
the position shown.
Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert the
Extension Leg.) Make sure that the Base Pad (40) is on
the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it. Attach the other Extension
Leg (not shown) in the same way.
2. Slide a Handrail Cap (41) onto one of the Handrails (1)
as shown. Insert the Handrail (1) into the tube at the top
of the left Upright (11). Slide a Handrail Bolt (78) onto a
Handrail Bracket (91). Finger tighten the Handrail Bolt
(78) at an angle (see the inset drawing) into the Upright
and the Handrail. Make sure that the Handrail Cap (41)
is around the Upright.
Press the top of the Handrail (1) into the left Upright (11).
Align the indicated hole in the Handrail with the hole in
the Upright, and tighten a Handrail Screw (53) into the
Upright and the Handrail. Then, tighten the Handrail Bolt
(78).
Attach the other Handrail (1) as described above.
All manuals and user guides at all-guides.com
and wire cutters
Handrail Bolt (78)–2
5
.
Console Screw (88)–8
1
11
2
53
1
Holes
11
91
41
78
11
91
1
78
11
53
34
40
53
1
41
91
78
