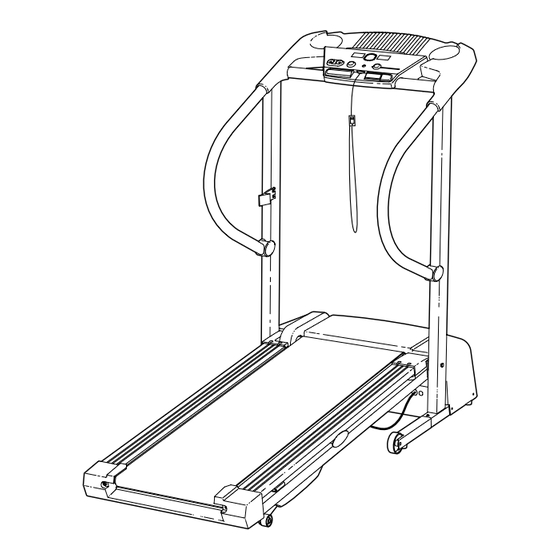

Model No. PCTL69030
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manu-
al for future reference.
All manuals and user guides at all-guides.com
USER'S MANUAL
Visit our website at
www.proform.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 485 Pi and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Form 485 Pi

Summary of Contents for Pro-Form 485 Pi

  • Page 1 All manuals and user guides at all-guides.com Model No. PCTL69030 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 1-888-936-4266 Mon.–Fri.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS IMPORTANT PRECAUTIONS .............2 BEFORE YOU BEGIN .
  • Page 3 All manuals and user guides at all-guides.com 13. Keep the power cord and the surge suppres- AND MOVE THE TREADMILL on page 10.) sor away from heated surfaces. You must be able to safely lift 20 kg (45 lbs) to raise, lower, or move the treadmill. 14.

  • Page 4: Before You Begin

    And when you’re not exercising, the treadmill is PCTL69030. The serial number can be unique 485 Pi can be folded up, requiring less than found on a decal attached to the treadmill (see the half the floor space of other treadmills.

  • Page 5: Assembly

    All manuals and user guides at all-guides.com ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own phillips screwdriver and wire cutters Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 6 All manuals and user guides at all-guides.com 3. Place the Console Base (46) on the tubes on the Uprights (11). Pull out the two Wires (21) just enough to connect them to the two connectors in the Console Base. Make a loop with the indicated plastic tie and insert the end through the tie holder on the bottom of the Console Base.

  • Page 7: Operation And Adjustment

    All manuals and user guides at all-guides.com OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge Your treadmill features a walking belt coated with suppressor, and plug the surge suppressor into an PERFORMANT LUBE , a high-performance lubricant.
  • Page 8 All manuals and user guides at all-guides.com CONSOLE DIAGRAM Note: If there is a sheet of clear plastic Clip on the face of the console, remove it. CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turning on the power.
  • Page 9 All manuals and user guides at all-guides.com Follow the steps below to operate the console. Follow your progress with the LED track and the displays. Insert the key fully into the power switch. The LED Track—The Inserting the key will track in the center of the not turn on the dis- console represent a dis-...

  • Page 10: How To Fold And Move The Treadmill

    All manuals and user guides at all-guides.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 20 kg (45 lbs.) in order to raise, lower, or move the treadmill.
  • Page 11 All manuals and user guides at all-guides.com HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left thumb, press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch.

  • Page 12: Troubleshooting

    All manuals and user guides at all-guides.com TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-936-4266, Monday through Friday, 8h00 until 18h30 eastern time (excluding holidays).
  • Page 13 All manuals and user guides at all-guides.com PROBLEM: The incline system does not function properly SOLUTION: a. Make sure that the two wires under the console are fully plugged in (refer to assembly step 4 on page 6). WARNING: Do not disconnect or connect the wires while the treadmill power cord is plugged in.

  • Page 14: Conditioning Guidelines

    All manuals and user guides at all-guides.com CONDITIONING GUIDELINES is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand WARNING: Before beginning on the heart to pump blood to the muscles, and on the this or any exercise program, consult your lungs to oxygenate the blood.

  • Page 15: Ordering Replacement Parts

    (excluding holidays). When ordering parts, please be prepared to give the following information: • the MODEL NUMBER of the product (PCTL69030) • the NAME of the product (PROFORM 485 Pi treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) •...

  • Page 16: Limited Warranty

    All manuals and user guides at all-guides.com LIMITED WARRANTY ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser.
  • Page 17 All manuals and user guides at all-guides.com PART LIST—Model No. PCTL69030 R0803A Qty. Description Qty. Description Handrail Front Roller/Pulley Key/Clip Front Roller Adj. Bolt Incline Leg Pivot Bolt Incline Wheel Battery Cover Extension Leg Screw/Handrail Screw Foot Rail Power Cord Lift Motor Power Cord Grommet Rear Roller...
  • Page 18 All manuals and user guides at all-guides.com REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see page 15 of the User’s Manual.
  • Page 19 All manuals and user guides at all-guides.com EXPLODED DRAWING—Model No. PCTL69030 R0803A...
