TOOLS REQUIRED FOR ASSEMBLY
Cordless drill with phillips head Bit & magnetic extension,
3/8" Magnetic socket bit.
BEFORE ASSEMBLING THE WORKBENCH
Read through the assembly instructions to
familiarize yourself with the order in which the
parts are assembled. We suggest that you clear
& vacuum the area where the bench is to be
assembled. It is important that the bench is
assembled in the same sequence as instructed.
HARDWARE & GMI COMPONENTS
All assembly hardware is provided. Full size photos
accompany each step where hardware is needed.

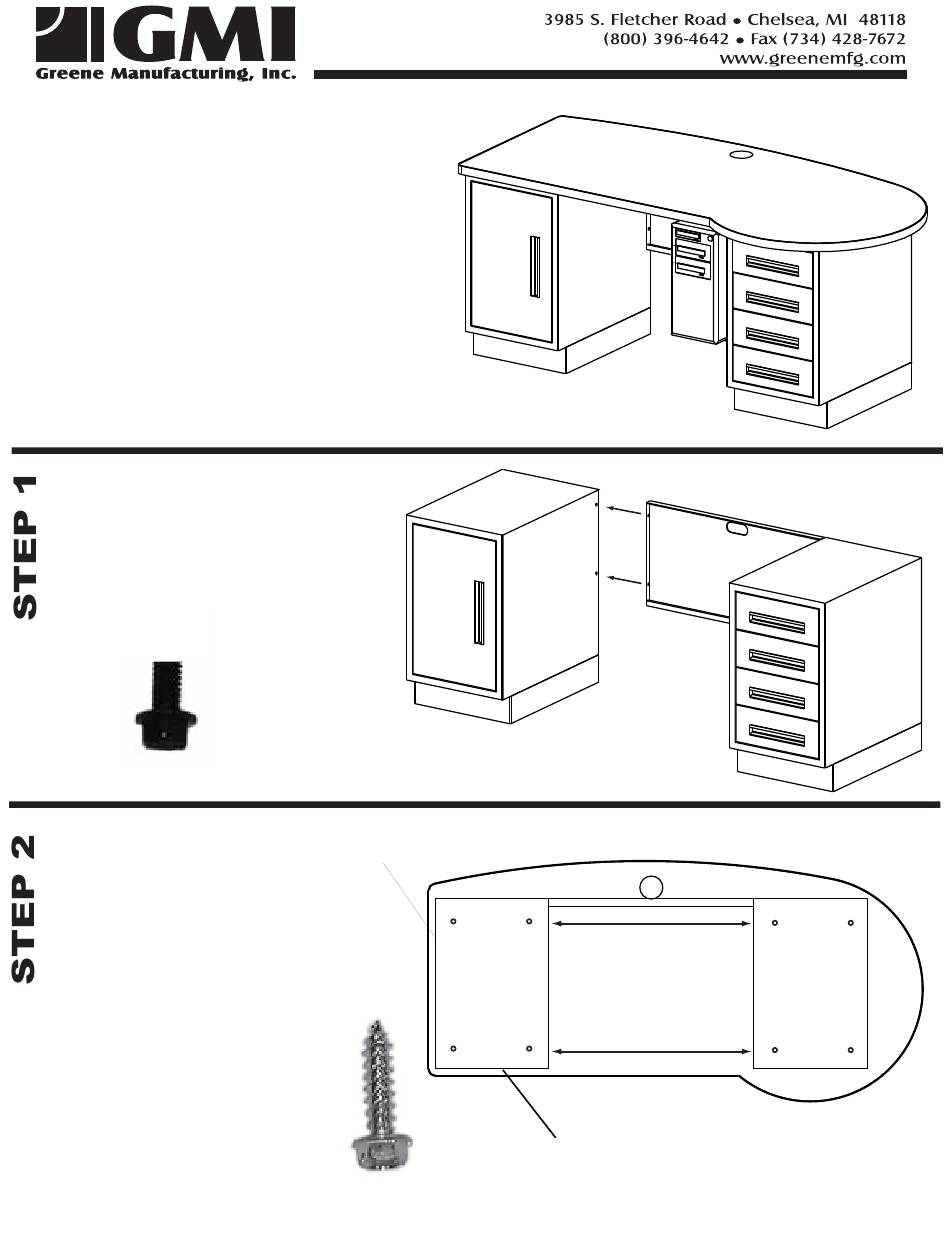

Attach the modesty panel to the base
cabinets. Use four 1/4-20 x 1/2" Bolts.
Hand start all bolts or you may strip the
threaded insert.
**Your base cabinets may be different than
those shown. Follow the same instructions**
Place the top on the assembled base.
Adjust until it matches the view to the
right.
Attach the top to the bases. (You must
remove the top drawer(s) from drawer
cabinets).
Use #14 x 1" Lag Screws. 4 for Cabinets
6 for Leg pedestals.
1" Left Side
SRE-100 INSTRUCTOR STATION
Modesty Panel
Same Distance
Front & Back
1" Front
Advertisement
Table of Contents
Related Manuals for GMI SRE-100
Summary of Contents for GMI SRE-100
- Page 1 SRE-100 INSTRUCTOR STATION TOOLS REQUIRED FOR ASSEMBLY Cordless drill with phillips head Bit & magnetic extension, 3/8" Magnetic socket bit. BEFORE ASSEMBLING THE WORKBENCH Read through the assembly instructions to familiarize yourself with the order in which the parts are assembled. We suggest that you clear &...
- Page 2 The wire cover covers the cables as they run from the grommet hole to the CPU on the front side of the modesty panel. Adhesive velcro holds the bottom Wire Cover lip of the cover to the modesty panel. Use #8 x 5/8" black screws to attach the cover to the top.
