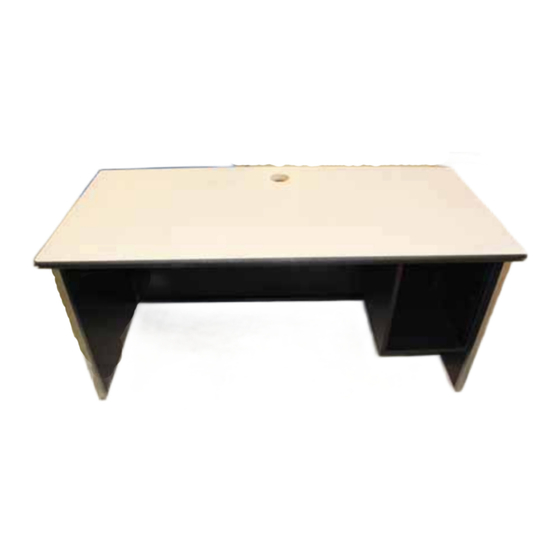

GMI SRI-105-1BF Assembly Instructions

TOOLS REQUIRED FOR ASSEMBLY

Socket Set, Electric Hand Drill, Phillips Head Bit, 3/8"

Magnetic Hex Driver Bit.

Read through the assembly instructions to familiarize

yourself with the order in which the parts are

assembled.

We suggest that you clear & vacuum the area where

the desk is to be assembled.

It is important that the desk is assembled in the same

sequence as instructed.

All assembly hardware is provided.

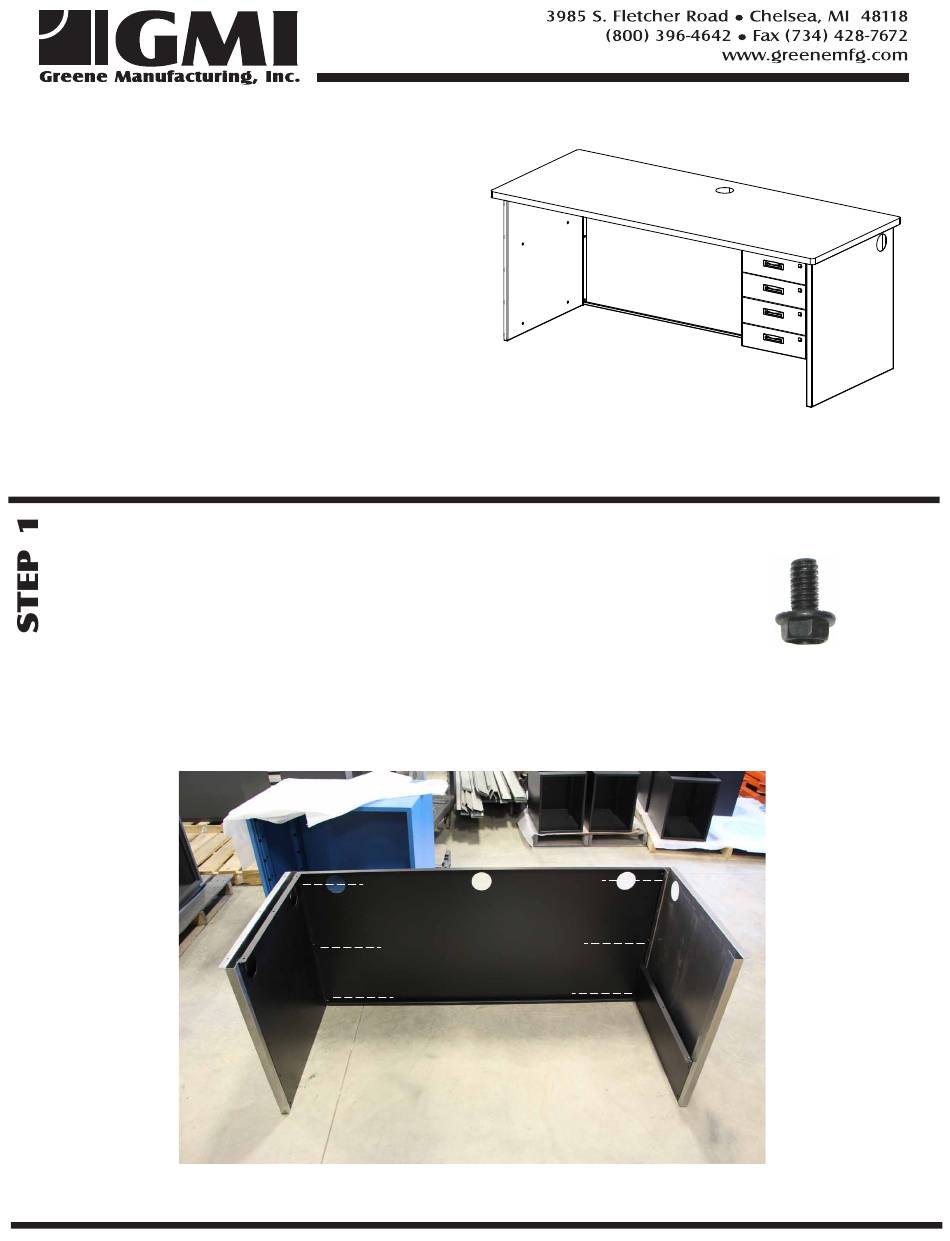

Attach the left and right leg panels to the

modesty panel using (3) 1/4-20 x 3/4" flange

head bolts per side. Panels must be oriented

as shown below.

SRI-105-1BF

1/4-20 x 3/4"

Flange Head Bolt

Table of Contents

Do you have a question about the SRI-105-1BF and is the answer not in the manual?

Page 1 SRI-105-1BF TOOLS REQUIRED FOR ASSEMBLY Socket Set, Electric Hand Drill, Phillips Head Bit, 3/8" Magnetic Hex Driver Bit. BEFORE ASSEMBLING THE WORKBENCH Read through the assembly instructions to familiarize yourself with the order in which the parts are assembled. We suggest that you clear & vacuum the area where the desk is to be assembled.
Page 2 Remove drawers from side cabinet assembly to access mounting holes. Install side cabinet by inserting the six tabs on the side of the cabinet into the rectangle slots of the leg panel (See left image below). It is recommended to have two people to help line up all six tabs into the leg, if all six are not properly lined up the cabinet will not mount flush to the leg.
