GMI SRI-205 Assembly Instructions

TOOLS REQUIRED

FOR ASSEMBLY

Socket Set, Electric Hand Drill, Phillips Head Bit, 3/8"

Magnetic Hex Driver Bit.

Read through the assembly instructions to

familiarize yourself with the order in which the parts

are assembled.

We suggest that you clear & vacuum the area where

the desk is to be assembled.

It is important that the desk is assembled in the

same sequence as instructed.

All assembly hardware is provided.

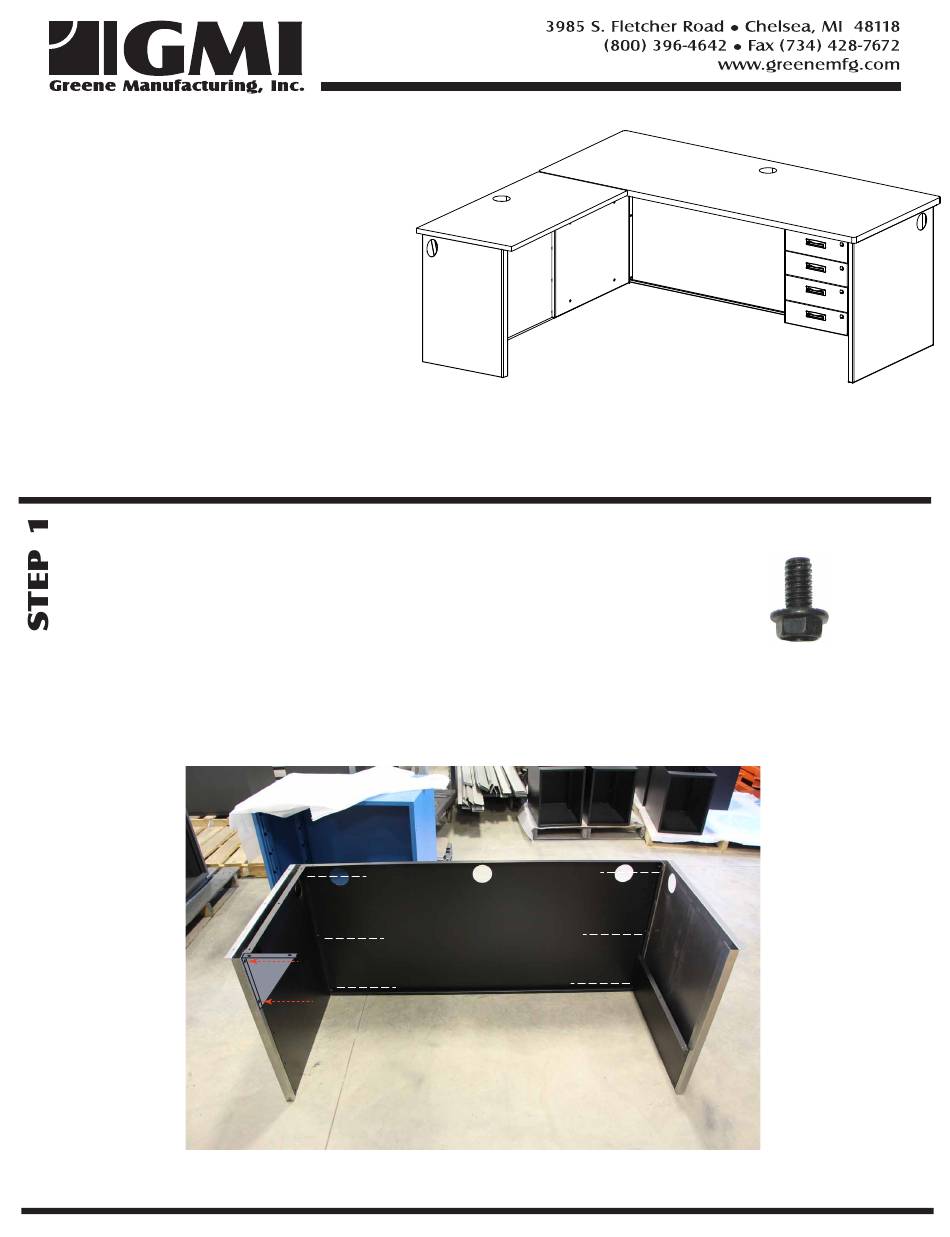

Attach the left and right leg panels to the

modesty panel using three 1/4-20 x 3/4"

flange head bolts per side. Panels must be

oriented as shown below. Attach the

triangular shape top support bracket to the

inside of the leg as shown by the red arrow

using (2) 1/4-20 x 3/4" flange head bolts.

SRI-205

1/4-20 x 3/4"

Flange Head Bolt

Table of Contents

Need help?

Do you have a question about the SRI-205 and is the answer not in the manual?

Page 1 SRI-205 TOOLS REQUIRED FOR ASSEMBLY Socket Set, Electric Hand Drill, Phillips Head Bit, 3/8" Magnetic Hex Driver Bit. BEFORE ASSEMBLING THE WORKBENCH Read through the assembly instructions to familiarize yourself with the order in which the parts are assembled. We suggest that you clear & vacuum the area where the desk is to be assembled.
Page 2 Remove drawers from side cabinet assembly to access mounting holes. Install side cabinet by inserting the six tabs on the side of the cabinet into the rectangle slots of the leg panel (See left image below). It is recommended to have two people to help line up all six tabs into the leg, if all six are not properly lined up the cabinet will not mount flush to the leg.
Page 3 Attach the return leg base assembly to the main desk leg base assembly using (3) 1/4-20 X 3/4” flange head bolts. Panels must be oriented as shown below. 1/4-20 x 3/4” Flange Head Bolt Place the desks tops on. Attach the two sections of top together using the connector plate on the underside of the tops.
