2.3.3 Type B POT for output signal

a. Power source：
100-240V AC power source
b. Wiring illustration：
Power cable illustration is as the same as 2.3.2

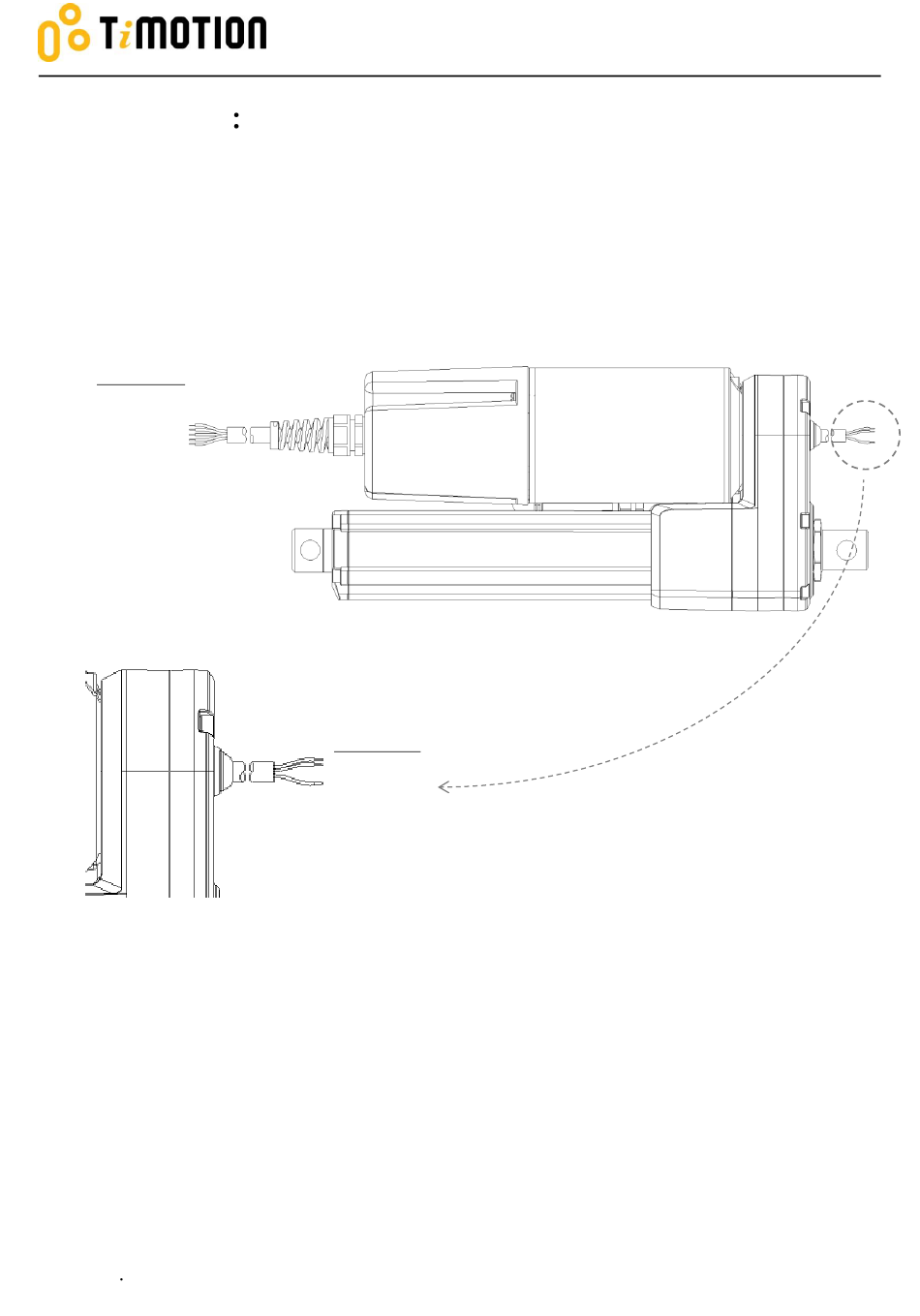

Signal cable illustration is as below
Power cable:
Black
Grey
Brown
Blue
Green/Yellow
Version B July 2020
Signal cable:
Red (PIN1)
White (PIN2)
Black (PIN3)
User Manual-MA1_AC Version
