2.3.2 Type A Without output signal
a. Power source：
100-240V AC power source

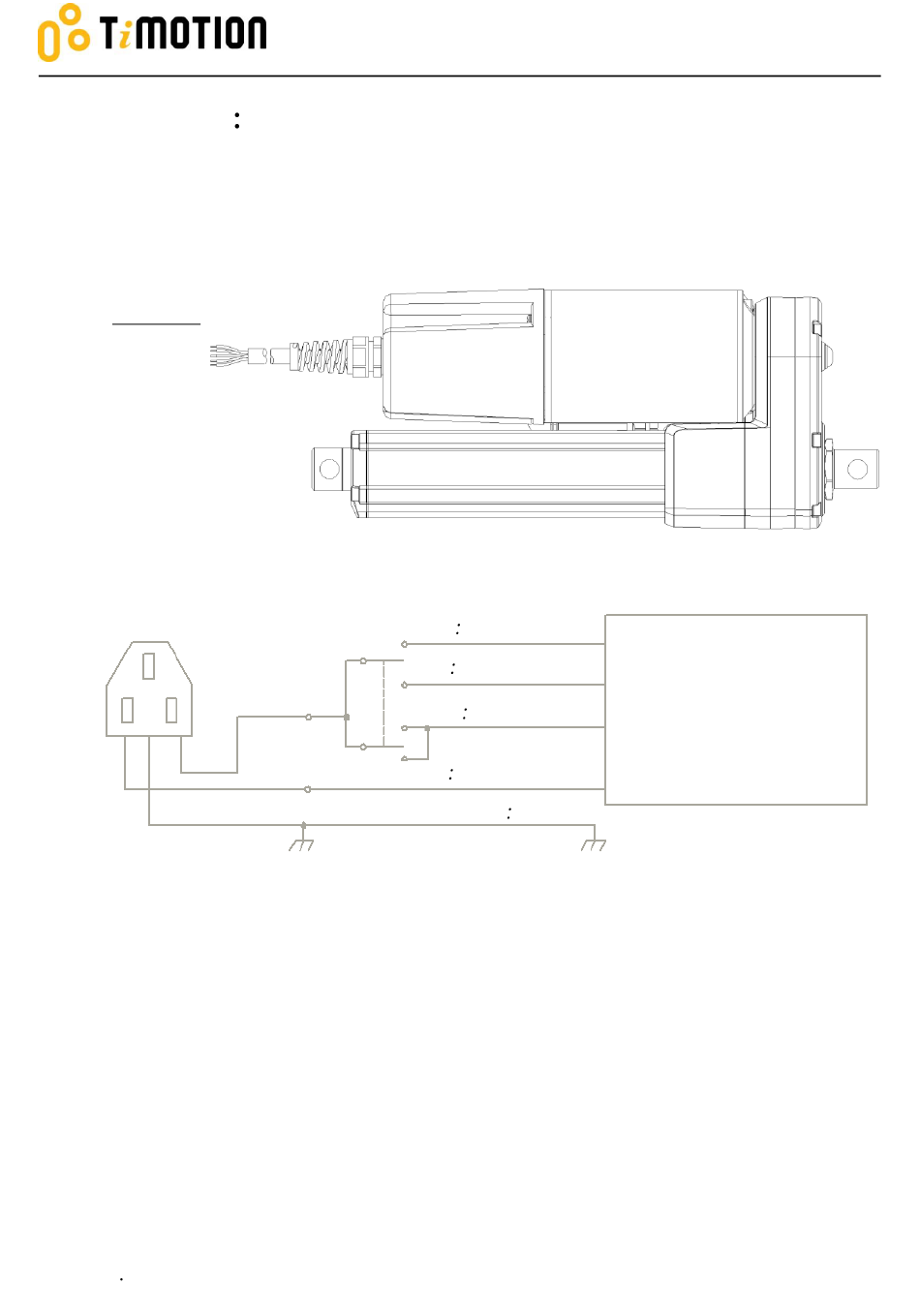

b. Wiring illustration：
Power cable:
Black
Grey
Brown
Blue
Green/Yellow
AC Plug
Version B July 2020
Black Retract+
Grey Stretch+
Brown PCBA+
Blue Neutral
Green/Yellow GND
User Manual-MA1_AC Version
Actuator
Actuator housing
