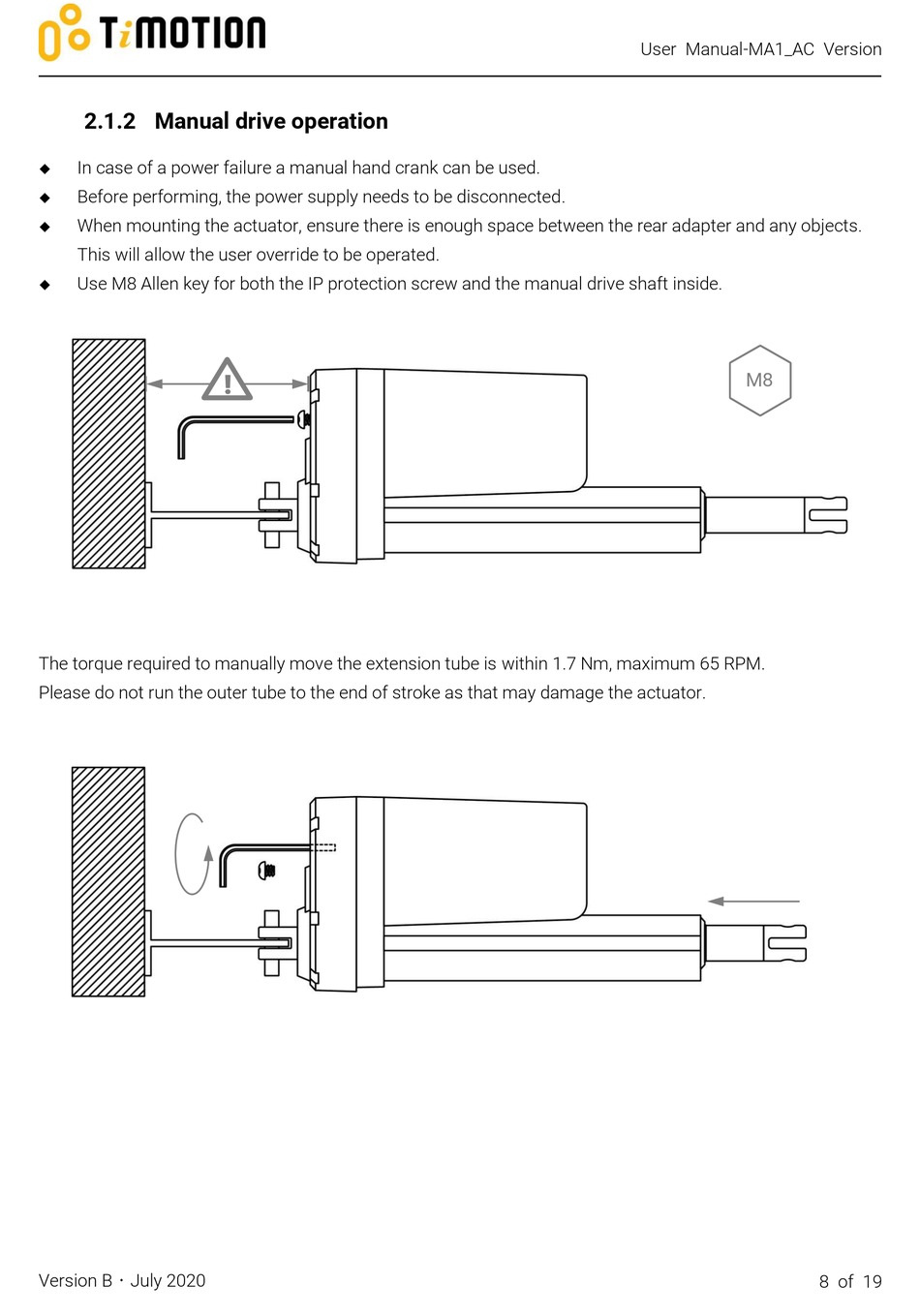

2.1.2 Manual drive operation
In case of a power failure a manual hand crank can be used.
Before performing, the power supply needs to be disconnected.
When mounting the actuator, ensure there is enough space between the rear adapter and any objects.
This will allow the user override to be operated.
Use M8 Allen key for both the IP protection screw and the manual drive shaft inside.
The torque required to manually move the extension tube is within 1.7 Nm, maximum 65 RPM.
Please do not run the outer tube to the end of stroke as that may damage the actuator.
Version B July 2020
!
User Manual-MA1_AC Version
M8
8 of 19
