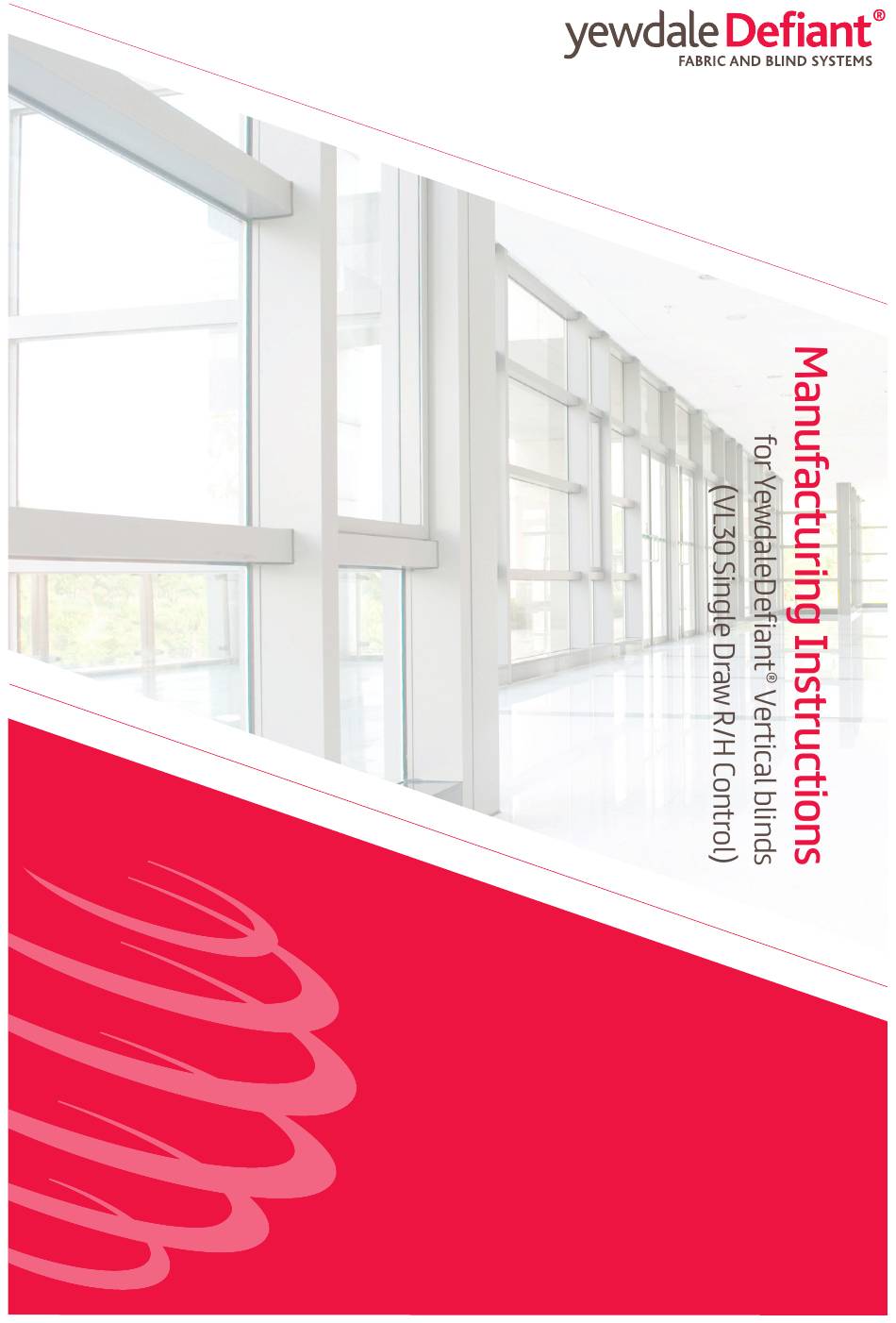

- Page 1 Manufacturing Instructions for YewdaleDefiant Vertical Blinds ® (VL30 Single Draw R/H Control) yewdale.co.uk Part no: 998...
- Page 2 Manufacturing Instructions YewdaleDefiant Vertical blinds (VL30 Single Draw R/H Control) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children.
- Page 3 VL30 Single Draw R/H Control: 926325W 927000W Top fix brackets white Aluminium headrail 927006 Aluminium control rod 926310 927010 Shallow frame Stop ring with face fix brackets slotted screw 927004W Shaft support with magnet 927017W Cord drive 927007 runner white...
- Page 4 Manufacturing Instructions YewdaleDefiant Vertical blinds (VL30 Single Draw R/H Control) ® VL30 Single Draw R/H Control: Check the profile - part number (927000W), and spline – (927006), are free from damages Cut the profile (927000W) 17mm less than the blind width Cut spline (927006) 28mm less than the blind width.
- Page 5 To remove any surplus trucks from the ready linked stacks, cut the metal spacer line 5mm ahead of the leading truck. Using the chart below, insert the appropriate tubular spacers (927007W) onto the drive end of the spline. VL30 89mm Single draw VL30 127mm Single draw Control End Control End...
- Page 6 Manufacturing Instructions YewdaleDefiant Vertical blinds (VL30 Single Draw R/H Control) ® Slide the shaft support with magnet onto the spline (927004W). Cut the cord (7250W) to the correct length using the formula below. Actual blind with + drop x 2 minus 400mm...
- Page 7 Now insert the spline and trucks into the profiled channel (92700W), slotting the drive end of the control set into the correct end of the channel. Slide the lead truck down the channel. Using the workings below, insert the appropriate tubular spacer (927007W) onto the spline on the inside edge of the idle end of the control set.
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
