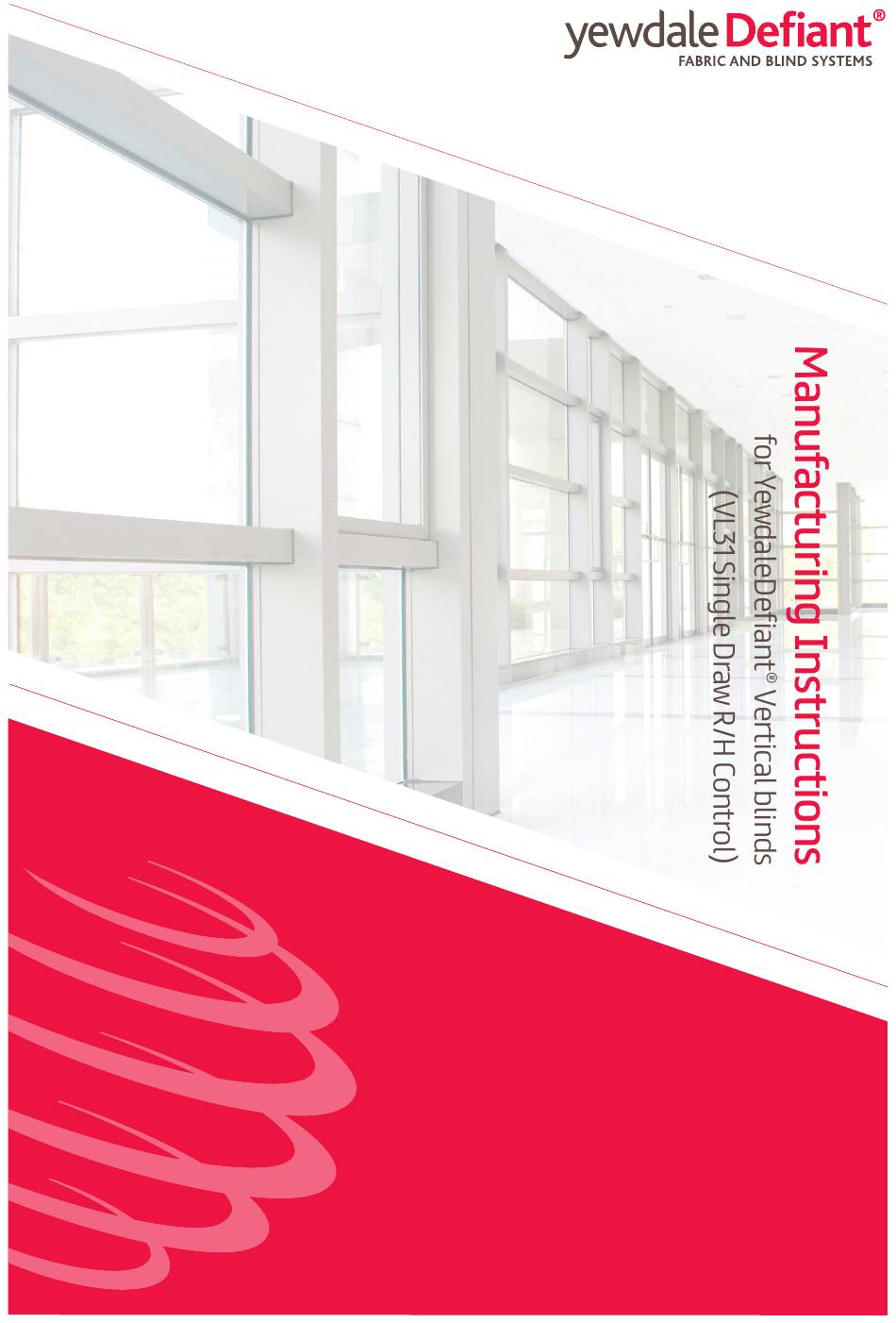

- Page 1 Manufacturing Instructions for YewdaleDefiant Vertical blinds ® (VL31 Single Draw R/H Control) yewdale.co.uk Part no: 1001...
-
Page 2: Safety Instructions
Manufacturing Instructions YewdaleDefiant Vertical blinds (VL31 Single Draw R/H Control) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. - Page 3 VL31 Single Draw R/H Control: 926325W 927000 927006 926310/14W 927010 927015W 927004W 927015W 927002/3W 927007 927011/12 927016W 928750/54W 928850/54W Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 4 Manufacturing Instructions YewdaleDefiant Vertical blinds (VL31 Single Draw R/H Control) ® VL31 Single Draw R/H Control: Please note, eye, hand and ear protection must be worn whilst manufacturing this blind. Check the profile - part number 92700W, and spline - Part number 927006,...
- Page 5 Using the formula below calculate the correct amount of trucks. Actual blind width ÷ actual link length For example, for a 400mm blind: 89mm louvre (the actual link length is 79mm) 400÷79mm = 5pcs 127mm louvre (the actual link length is 115mm) 400÷115mm = 4pcs Round the figure up to next whole number.
- Page 6 Manufacturing Instructions YewdaleDefiant Vertical blinds (VL31 Single Draw R/H Control) ® Loading the trucks onto the spline, with the links facing away from the stack position, insert a stop ring (927010), onto the spline between the first and second truck.
- Page 7 Using the workings below, insert the appropriate tubular spacer part number 927007W onto the spline on the opposite end to the stack position. VL30 89mm single draw VL30 127mm single draw Control Idle Control Idle Insert the second control set onto the spline and fix in place using a stop ring (927010) and fasten with slotted screwdriver.
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
