Section 7: Cable Management

FIT Cable Management (LCD Cart Only)

WARNING: DO NOT BUNCH CABLES TOGETHER ON ONE CABLE GUIDE-CHANNEL. USE SEPARATE CHANNELS FOR
EACH CABLE.

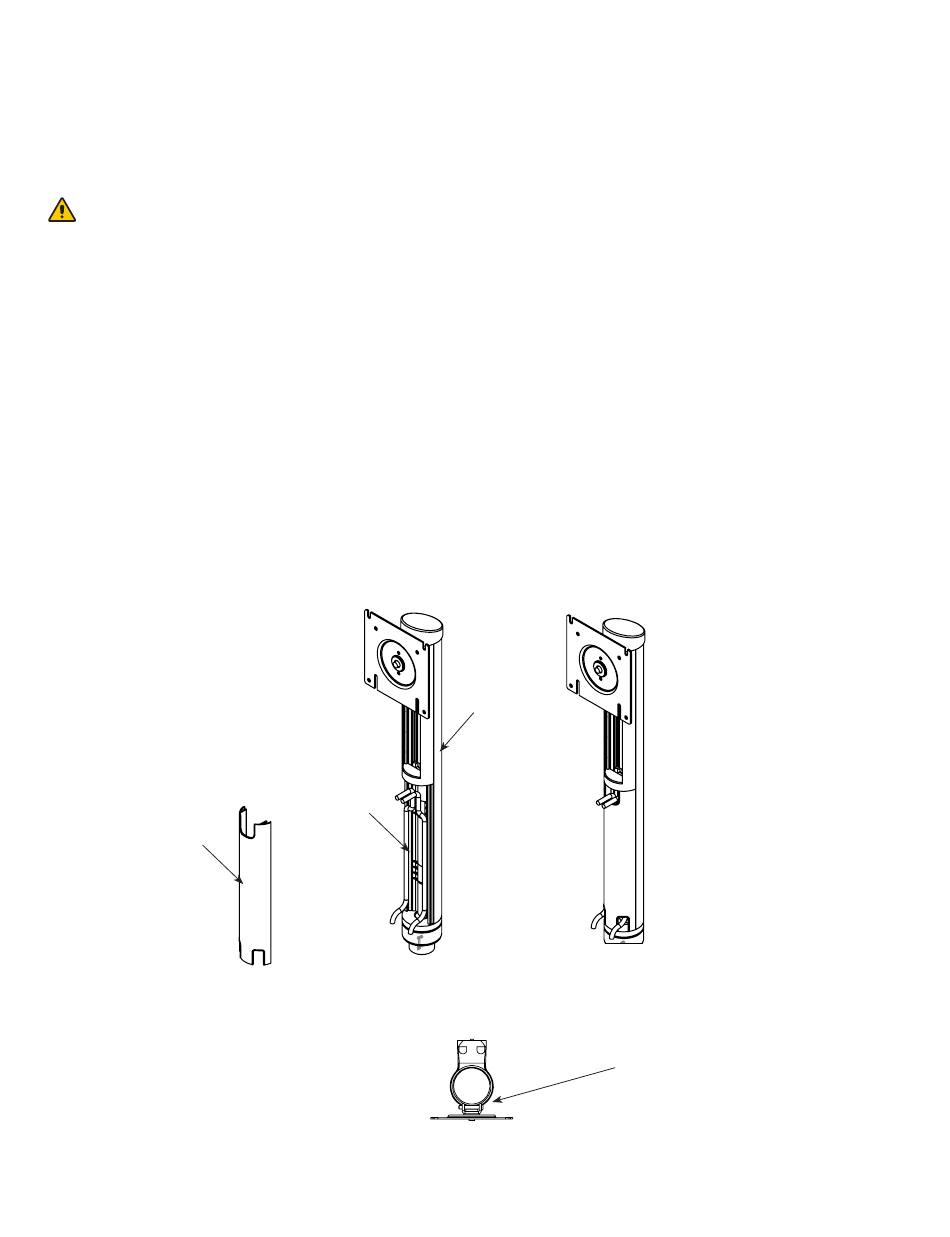

1. There are 2 FIT cable guide-channels in the Swivel-Post (shown below), which is covered by the Swivel-Post Cable
Cover.
2. Remove the Swivel-Post Cable Cover and place the cables carefully into the guide channels.
3. Push-fit the Swivel-Post Cable Cover so that the cables pass through the hole on the top and the 2 holes on the
bottom (or equivalent) of the Swivel-Post Cable Cover.
4. Ensure there is enough slack in the cables to allow for normal monitor adjustment.
ECT #:
T VALID TOP LEVEL PART NUMBER GROUPING HERE) SE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
5. With the Work Surface open, slide out the FIT Access Door and route the cables from the Swivel-Post into the Main
TIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY.
Bin (and into the computer).
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
6. Slide the FIT access door back in before attempting to close the Work Surface.
Swivel-Post
Cable Cover
35 Amico Accessories Inc.
5 5
Swivel-Post
Cable Guide
Channels
