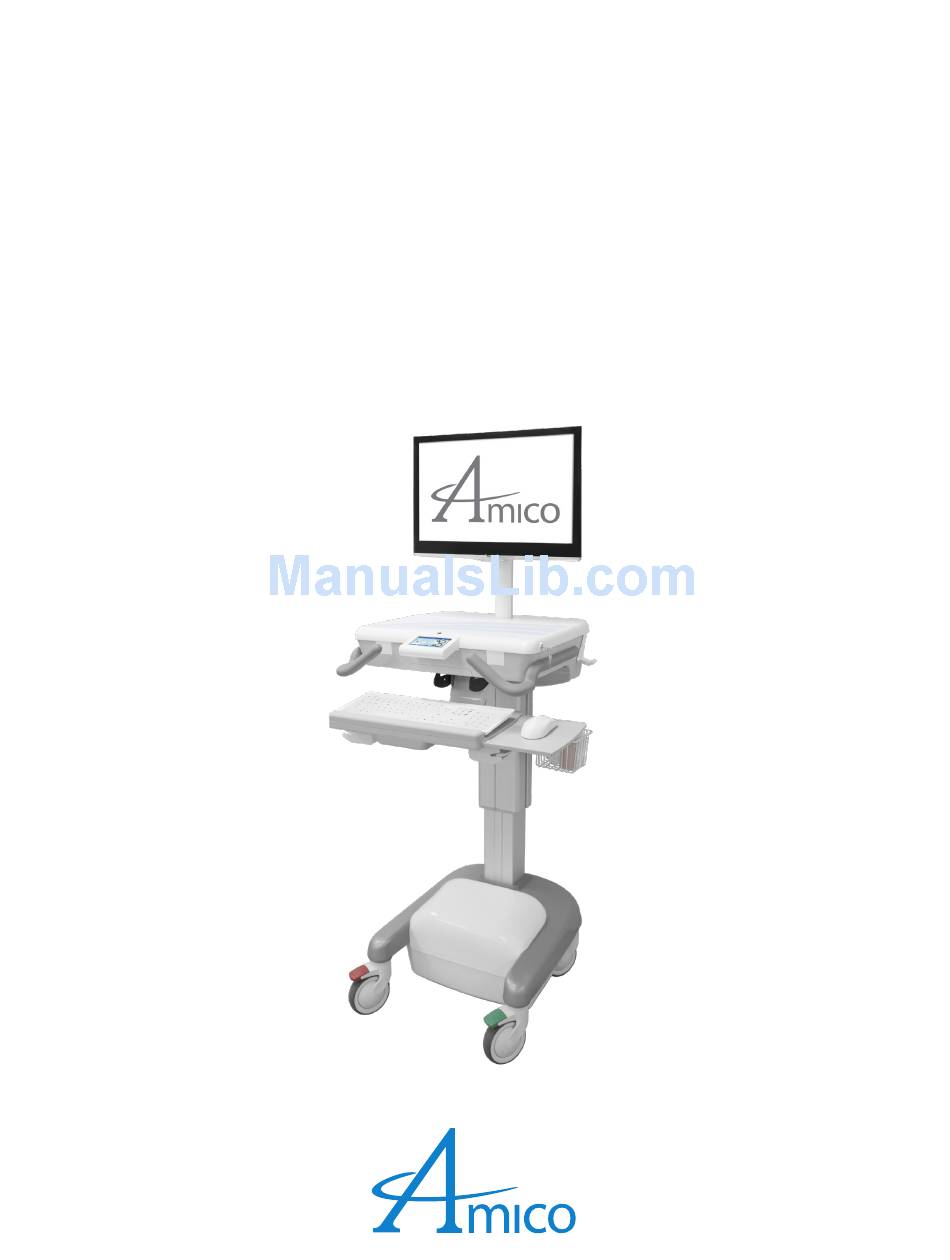

- Page 1 Installation Instructions Hummingbird Computer Workstation on Wheels w w w . a m i c o . c o m...
- Page 2 This Instruction Manual is your guide to ensure that you get the best performance out of the equipment. Amico Accessories Inc. is not responsible for any damage as a result of (but not limited to) abuse and other problems that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
-
Page 3: Table Of Contents
Troubleshooting 24 - 25 Preventative Maintenance Product Classification 27 - 30 Hummingbird Mobile Workstation – Powered for LCD Hummingbird Mobile Workstation – Powered for Laptop Hummingbird Mobile Workstation – Non-Powered for LCD Hummingbird Mobile Workstation – Non-Powered for Laptop Cleaning... -
Page 4: Section 1: Product Specifications
Worksurface with Spill Guard Lockable PC Compartment Control Interface Auxiliary USB Ports LED Keyboard Light Mouse and Barcode Battery Storage Scanner Holders Accessory Mounting Rails Total Lock Caster (Red) Height Adjustable LED Base Light Directional Lock Caster (Green) Amico Accessories Inc. -
Page 5: Features
(5 lbs max) height adjustability height adjustability height adjustability height adjustability Lighting Worksurface, Keyboard Keyboard Tray and Base Keyboard Tray Keyboard Tray Tray and Base www.amico.com... - Page 6 FROM THE CART IF NECESSARY. IF DETACHED, ENSURE CABLE IS FULLY PLUGGED IN BEFORE RESUMING USE. Various optional storage solutions and additional workstation column mountable accessories are available (Amico approved accessories and are within footprint of cart only, with some exceptions. Refer to www.amico.com for more information).
-
Page 7: Section 2: Installation Preparation
WARNING: DO NOT ATTEMPT TO CARRY THE CART UP/DOWN STAIRS OR OVER/AROUND OBSTACLES. FAILURE TO FOLLOW THESE GUIDELINES COULD RESULT IN SERIOUS INJURY. WARNING: DO NOT ALLOW BATTERY COMPARTMENT (AMICO POWER SYSTEM) TO COME IN CONTACT WITH LIQUIDS. DO NOT OPERATE THE POWER SYSTEM IF WET. -
Page 8: Section 3: Mounting Platform
Section 3: Mounting Platform The Hummingbird Mobile Workstation is intended for use on flat surfaces (carpet, tile, wood, laminate) in an indoor environment and on inclines of up to 10°. The Hummingbird Mobile Workstation includes a directional locking caster (green) to aid in movement and maneuvering corners, and a total locking caster (red) to prevent movement as well as 2 handles for steering. -
Page 9: Section 4: Device Installation
Remove the 2 bottom screws from the VESA plate, and loosen the top 2 screws. Carefully lift the monitor off the VESA plate. M4 mounting holes M4 mounting holes for VESA-75 for VESA-100 Figure 1: VESA Plate www.amico.com... -
Page 10: Mounting A Keyboard And Mouse
6. Route the cords through the bottom of the main bin (Figure 6). Ensure that there is enough slack in the cords for full adjustability of the keyboard tray. WARNING: DO NOT OVERLOAD OR LEAN ON THE KEYBOARD TRAY (MAX LOAD = 10 LBS). Dual Locking Coins Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Amico Accessories Inc. -
Page 11: Mounting A Computer (Lcd Carts Only)
Section 4: Device Installation Mounting a Computer (LCD Carts Only) 1. To open the Worksurface, insert the key (provided by Amico) into the lock on the Worksurface and turn counterclockwise (ccw) to unlock the Worksurface. 2. Lift the Worksurface upwards (as shown in Figure 1) to access the interior of the main bin. -
Page 12: Mounting A Laptop (Laptop Carts Only)
Section 4: Device Installation Mounting a Laptop (Laptop Carts Only) 1. To open the Worksurface, insert the key (provided by Amico) into lock on Worksurface and turn counterclockwise (CCW) to unlock the Worksurface (Figure 1). 2. Lift the Worksurface upwards to access the interior of the main bin. -
Page 13: Section 5: Adjustments
NOTE: THE LIGHT INTERFACE MUST BE PLUGGED INTO A POWERED USB OUTLET ON A COMPUTER (OR EQUIVALENT) TO FUNCTION. NOTE: THE POWER CORD IS EASILY DETACHABLE AND CAN BE DISCONNECTED FROM THE CART IF NECESSARY. IF DETACHED, ENSURE THE CABLE IS FULLY PLUGGED IN BEFORE RESUMING USE. www.amico.com... -
Page 14: Standard Interface (Powered Manual Carts Only)
The Lighting Indicator/Switch (capacitive touch) is used to turn the lights on the Hummingbird mobile workstation on/off and will be illuminated when the lights are on. To adjust the brightness of the Hummingbird lights, hold the Lighting Switch until the brightness begins to cycle. Release the switch when desired brightness is achieved. -
Page 15: Standard Interface With Automatic Height Control
The Lighting Indicator/Switch (capacitive touch) is used to turn the lights on the Hummingbird mobile workstation on/off and will be illuminated when the lights are on. To adjust the brightness of the Hummingbird lights, hold the Lighting Switch until the brightness begins to cycle. Release the switch when desired brightness is achieved. -
Page 16: Advanced Interface/Advanced Interface With Automatic Height Control
1. To create a new profile, tap on Name in top left corner (Guest or Equivalent) and tap New User. NOTE: IF LOGGED INTO THE ADMIN ACCOUNT (PASSWORD: AMICO), YOU MUST FIRST LOG OUT BY TAPPING ON ADMIN AND SELECTING “LOG OUT”. - Page 17 Figure 2 Figure 3 NOTE: “RECOVERY MODE” IS SHOWN BY A YELLOW CHARGE PROGRESS INDICATOR WITH AN “R” IN THE CENTER. NOTE: A TEMPERATURE WARNING WILL BE SHOWN BY A THERMOMETER ICON APPEARING NEXT TO THE CHARGE PROGRESS INDICATOR. www.amico.com...
-
Page 18: Manual Height Adjustment
0 - 9.9 (0 - 4.49 kg) 10 - 19.9 (4.54 - 9.03 kg) 20 - 29.9 (9.07 - 13.6 kg) 30 - 39.9 (13.61 - 18.14 kg) 40 - 49.9 (18.15 - 22.68 kg) Worksurface Manual Height Adjustment Amico Accessories Inc. -
Page 19: Automatic Height Adjustment Standard Interface
4. To adjust position, hold the Up Touch Button to move up or the Down Touch Button to move down. NOTE: AT IDEAL OPERATING HEIGHT, THE OPERATOR’S FOREARMS SHOULD BE PARALLEL TO THE FLOOR WHEN USING THE KEYBOARD/MOUSE (90° BEND AT ELBOWS). Standard Interface Worksurface Standard Interface Recovery Battery Level Up/Down Touch Buttons www.amico.com... -
Page 20: Automatic Height Adjustment Advanced Interface
7. From the Main Menu, tap on Standing or Sitting icon to raise or lower to the saved heights. Peter 07/10/2014 4:50 pm 10h:50m Standing Icon Up/Down Icons Pulse Settings Notes Timer Sitting Icon Middle Bottom Figure 1 Amico Accessories Inc. -
Page 21: Monitor Adjustments (Lcd Carts Only)
Adjusting tilt tension: Tighten or loosen the tension screw on the mounting bracket. NOTE: YOU MAY NEED TO REMOVE THE CAP AND COVER ON THE FIT POST. +/- 15° Small Screws 180° Large Screw PROJECTION www.amico.com www.amico.com DESCRIPTION: PART NO:... -
Page 22: Worksurface
Section 5: Adjustments Worksurface 1. To open the Worksurface, insert the key (provided by Amico) into the lock on the Worksurface and turn counterclockwise (CCW) to unlock the Worksurface. 2. Lift the Worksurface upwards to access the interior of the main bin. -
Page 23: Ergonomic Keyboard Tray
The ergonomic keyboard tray can be tilted up and down, rotated 180°, elevated and is able to slide in and out as shown below: Standard Keyboard Tray The standard keyboard tray slides in and out of the cart as shown below: www.amico.com... -
Page 24: Lockable Casters And Transport Position
Section 5: Adjustments Lockable Casters and Transport Position The Hummingbird Mobile Workstation includes a Directional Locking Caster (green) to aid in movement in straight lines, and a Total Locking Caster (red) to prevent movement. 1. To lock the casters, step on the Locking Lever (on each caster) such that it clicks in the down position. -
Page 25: Spring Adjustment (Lcd Carts Only)
4. Replace the VESA Plate, re-attach the Top Plate with the screws and replace the Top Cap and the Swivel-Post Cover. Top Cap Screws Top Plate Hex Nut Gas Spring Swivel-Post Swivel-Post VESA Plate Cover Figure 1 Figure 2 www.amico.com... -
Page 26: Section 6: Cable Management
Fax: (905) 763.8587 Fax: (905) 763.8587 DESCRIPTION: DESCRIPTION: THIS PRINT IS PROPERTY OF AMICO ACCESSORIES THIS PRINT IS PROPERTY OF AMICO ACCESSORIES AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN PART NO: PART NO: [TOP LEVEL P.N.]... -
Page 27: Section 7: Troubleshooting, Preventative Maintenance And Product Classification
FIT Post Spring weight rating (page 3) Too easy or too difficult to utilize the • Damaged hardware • Please contact Amico Accessories portrait landscape feature (LCD Carts Only) The Monitor Head is not secure; it is •... -
Page 28: Troubleshooting
• FIT Access Door is open • Ensure the FIT Access Door is closed and not interfering with the Worksurface If the above solutions do not solve your symptoms or you are in need of parts/hardware, please contact Amico Accessories, 1-877-264-2697. Amico Accessories Inc. -
Page 29: Preventative Maintenance
Section 7: Troubleshooting, Preventative Maintenance and Product Classification Preventative Maintenance WARNING: HUMMINGBIRD WORKSTATIONS REQUIRE PERIODIC INSPECTION AND MAINTENANCE TO PERFORM OPTIMALLY AND ACHIEVE MAXIMUM OPERATION LIFE. WARNING: THE INTERVALS SHOWN ARE RECOMMENDED. MAINTENANCE SCHEDULES SHOULD BE MORE FREQUENT FOR HIGHER USE AREAS. -
Page 30: Product Classification
Section 7: Troubleshooting, Preventative Maintenance and Product Classification Product Classification Hummingbird Mobile Workstation - Powered for LCD HMF - 60 - 57 - Lifting Spring Cart Cart Battery Control Cold Handle Keyboard Bucket Mount Strength Power Power Type Panel Boot Tray 0 - 9.9 lbs... -
Page 31: Hummingbird Mobile Workstation - Powered For Laptop
Section 7: Troubleshooting, Preventative Maintenance and Product Classification Product Classification Hummingbird Mobile Workstation - Powered for Laptop HML - 70 - 57 - Lifting Cart Cart Battery Control Cold Handle Keyboard Power Power Type Panel Boot Tray 0 - 9.9 lbs... -
Page 32: Hummingbird Mobile Workstation - Non-Powered For Lcd
Section 7: Troubleshooting, Preventative Maintenance and Product Classification Product Classification Hummingbird Mobile Workstation - Non-Powered for LCD HMF - 60 - Lifting Spring Cart Cart Handle Keyboard Bucket Mount Strength Power Power Tray 0 - 9.9 lbs Outlet Low Profile Handle No Bucket (0 - 4.49 kg) -
Page 33: Hummingbird Mobile Workstation - Non-Powered For Laptop
Section 7: Troubleshooting, Preventative Maintenance and Product Classification Product Classification Hummingbird Mobile Workstation - Non-Powered for Laptop HML - 70 - Lifting Cart Cart Handle Keyboard Power Power Tray 0 - 9.9 lbs Outlet Low Profile Handle (0 - 4.49 kg) -
Page 34: Cleaning
Damage caused by the use of unapproved substances or processes will not be warranted. It is recommended that you test any cleaning solution on a small area of the Hummingbird that is not visible to verify compatibility. Never submerge the Hummingbird and do not allow liquids to enter it. -
Page 35: Amico Warranty Policy
Amico Accessories Inc. warrants all mounting accessories and electrical systems to be free from defects in material and workmanship for a period of twelve (12) months from the date of shipment. Within this period Amico Accessories Inc. will repair or replace any part which is proven to be defective. - Page 36 Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada 71 East Industry Court, Deer Park, NY 11729, USA Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587 Email: info@amico.com | www.amico.com AA-IM-HUMMINGBIRD 12.08.2017...
