左、右开门更换
4.4
左右换门
Door reversal

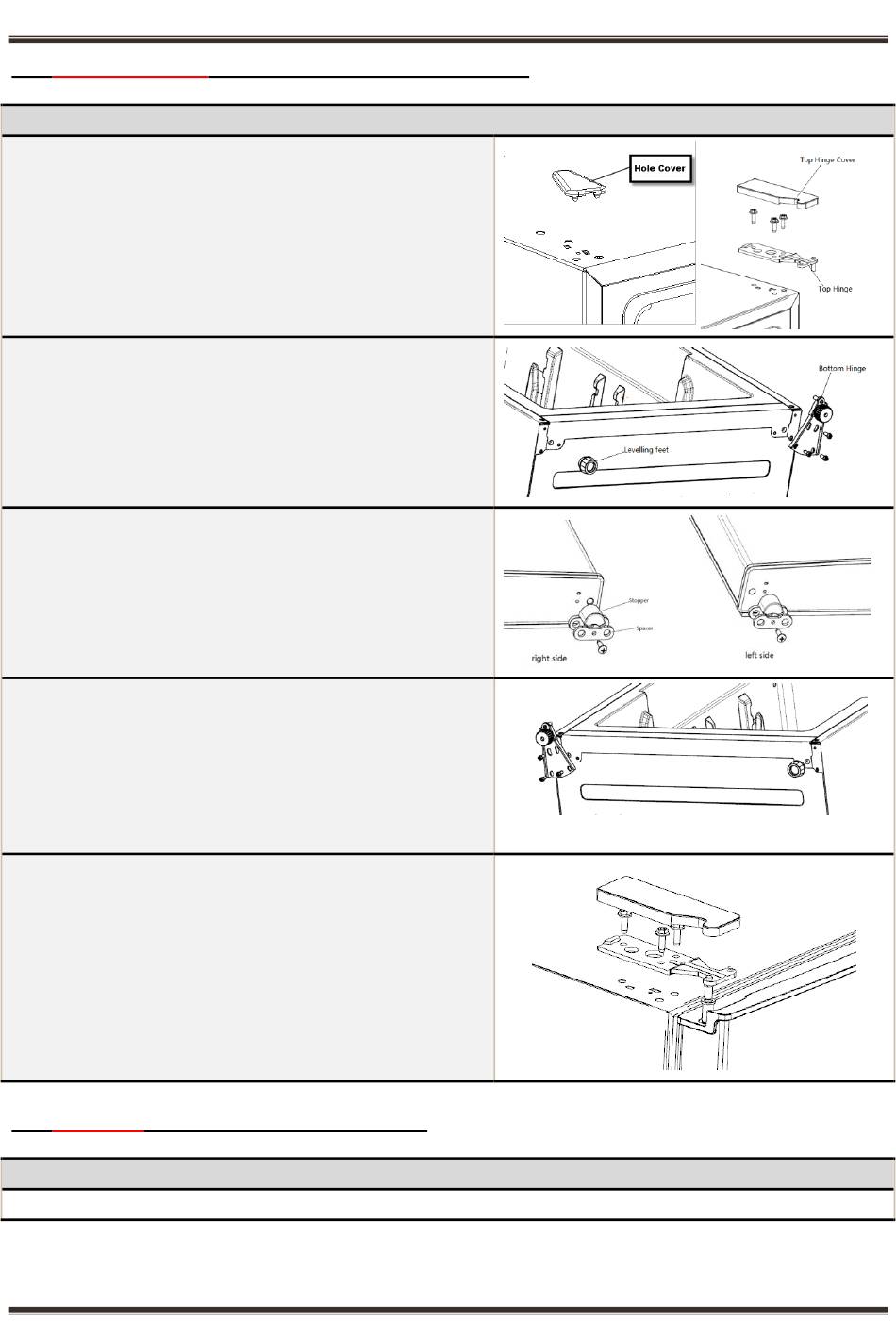

断开冰箱电源，移除门搁架上面的所有食物；
1)
your refrigerator and remove all food from the door shelves.
用一字螺丝刀拆下左边的孔盖和右上铰链罩， 然后用十
2)
字螺丝刀拆下固定上铰链的 3 个螺栓，拆下上铰链。
Remove the left cover plate and the right top hinge cover,
then unscrew and remove the right top hinge. Keep the
screws to reuse
地上放上垫块，把冰箱卧倒，用套筒拆除固定下铰链的
3)
3 颗螺栓，移除下铰链和调节脚。
Put on the cushion block, lie down the refrigerator, remo
ve the 3 bolts fixed the lower hinge with the sleeve, remo
ve the lower hinge and adjust the foot.
拆下冷藏室门体冷冻室门体右下端的门止档， 并将其安
4)
装到门体左下端。
Remove the door block from the bottom,
right side of the door and attach it to the other side.
5) 用螺栓将下铰链固定在冰箱左侧，调节脚安装到右侧。
6) 将冷藏室门在开门状态下垂直放在下铰链轴上。
5) Fix the lower hinge on the left side of the refrigerator
with the bolts and adjust the foot to the right side.
6) Place the refrigerator door vertically on the lower hing
e shaft in the open door state.
7)安装上铰链，用三个螺丝固定，盖上左上铰链罩，箱体
右侧安装上之前拆下的孔盖。attach the top left hinge to
the top of refrigerator. Cover the hinge with the top left
hinge cover and cover the screw holes on the right side
of the top with the cover plate you previously removed.
把手安装
4.5 Installation of handle(None)
把手安装
Installation of handle
把手安装
Installation of handle
Left or right open door reversal
Unplug
