Installation and operating instructions

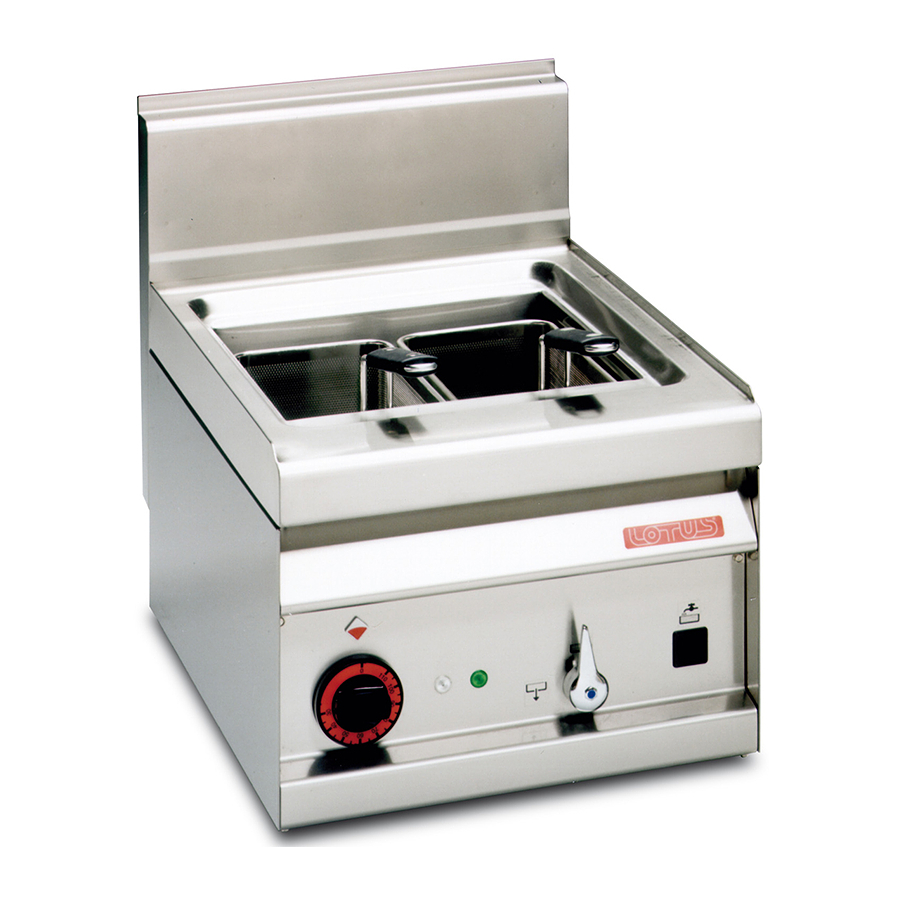

ELECTRIC PASTA COOKER FOR
PROFESSIONAL USE
CP-4ET CP-6ET
Model LIBR.ISTR.CP65E
Code 563003500
Review 1
Edition date 19/04/2019
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Advertisement
Table of Contents
Related Manuals for Lotus CP-4ET
Summary of Contents for Lotus CP-4ET
- Page 1 Installation and operating instructions ELECTRIC PASTA COOKER FOR PROFESSIONAL USE CP-4ET CP-6ET Model LIBR.ISTR.CP65E Code 563003500 Review 1 Edition date 19/04/2019 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020 +39 0438 778277 Translation of the original instructions...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation ......................... Electrical/gas connections ......................Water connection and drainage.................... -
Page 3: Introduction
INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 CP..4-6..E A Data Plate B Electrical connection D Water connection R 3/4"M E Water discharge Ø 20 mm Translation of the original instructions... - Page 4 INTRODUCTION WIRING DIAGRAM CP-4ET 1 Power supply terminal board 2 Switch 3 Thermostat 4 White indicator light 5 Green indicator light 6 Heating element 7 Button 8 Water solenoid Translation of the original instructions...
- Page 5 INTRODUCTION WIRING DIAGRAM CP-6ET 1 Power supply terminal board 2 Switch 3 Thermostat 4 White indicator light 5 Green indicator light 6 Heating element 7 Button 8 Water solenoid Translation of the original instructions...
-
Page 6: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 7: User Information, Raee Directive On Waste Electrical And Electronic Equipment
DIMENSION POWER CABLE WATER MODEL POWER SUPPLY ABSORPTION POWER CONNECT silicon type OUTLET (kW) 400V~2N 50Hz CP-4ET 40x65x30h 4 x 1.5 mm² R 3/4 "M Ø 20 mm 415V~2N 50Hz 10.5 4.35 400V~3N 50Hz CP-6ET 60x65x30h 5 x 1 mm²... - Page 8 GENERAL INFORMATION DESIGN ASSEMBLY/TRANSFORMATION ELECTRICAL LINKING TERMINAL BLOCK PERNIONS (see technical data table) · POWER SUPPLY CONNECTION · HEATING ELEMENT CONNECTION Translation of the original instructions...
-
Page 9: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 10 INSTALLATION Warning Installation operations, any conversion to other types of gas and start-up must only be performed by qualified personnel, in accordance with current regulations. Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
-
Page 11: Water Connection And Drainage
INSTALLATION Water connection and drainage · It is advisable to connect the appliance to the hot water pipe (max. 60 °C) to reduce heating times; we also recommend installing a shut-off valve up-line of the appliance · The discharge pipe must be connected to a suitable drain in compliance with applicable legislation. It is advisable to connect pipes without bends to avoid bottlenecks or siphon effects. -
Page 12: Instructions For Use
INSTRUCTIONS FOR USE 4 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. -
Page 13: Characteristics Of The Feed Water
INSTRUCTIONS FOR USE Characteristics of the feed water The inlet must be supplied with drinkable water having the specific characteristics listed below, otherwise the warranty will be forfeited · Total hardness between 0.5 and 5 French degrees to reduce the formation of scale ·... -
Page 14: Maintenance
MAINTENANCE 5 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... -
Page 15: Spare Parts
MAINTENANCE Spare parts It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on the type of appliance) or the gas pipes easily and quickly. To replace such parts, proceed as follows: ... -
Page 16: Cleaning
CLEANING 6 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
