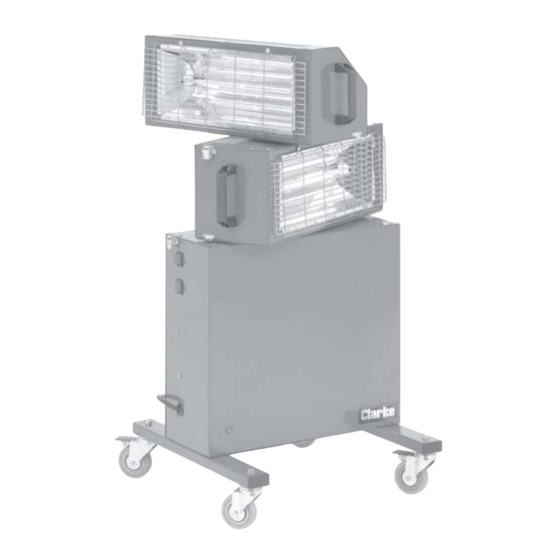

- Page 1 Multi-Directional Quartz Multi-Directional Quartz Halogen Infra Red Heater Halogen Infra Red Heater MODEL No: Devil 355MD Part No: 6925117 OPERATING & MAINTAINENCE INSTRUCTIONS 1008...
-
Page 2: Specifications
GUARANTEE This CLARKE product is guaranteed against faults in manufacture for 12 months from purchase date. Please keep your receipt as proof of purchase. This guarantee is invalid if the product has been found to have been abused in any way, or not used for the purpose for which it was intended, or to have been tam- pered with in any way. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS • This heater is for indoor use only. • ALWAYS disconnect from the mains supply before moving or performing any maintenance tasks. • DO NOT use this heater in a bathroom or shower room. • DO NOT use this heater in the vicinity of a swimming pool. •... -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS 230 VOLT MODELS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. WARNING! THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 5: Spare Parts
SPARE PARTS DEVIL355MD No. Description Part No. Handle. DADEV355MD01 Guard. DADEV355MD02 IR Halogen Lamp. DADEV355MD03 Castor (with brake). DADEV355MD04 Castor (standard). DADEV355MD05 Securing Knob. DADEV355MD06... -
Page 6: Operation
OPERATION Tools Required: 2 x 13mm spanners and 1 x Pozidrive screwdriver (medium). Fig 1 ASSEMBLY Bolt and Washer To reduce the risk of transit damage, the support legs (2), castors (4) and the halogen lamps (2) are not fitted. Attach the four castors to the support legs using the bolts, washers and nuts supplied. -
Page 7: Maintenance
Inspect the mains cable for damage. Heat damage will cause the cable to stiffen and crack. If this is found, have the cable replaced (refer to your CLARKE dealer), check cable routing and ensure it is well away from the heat source.
