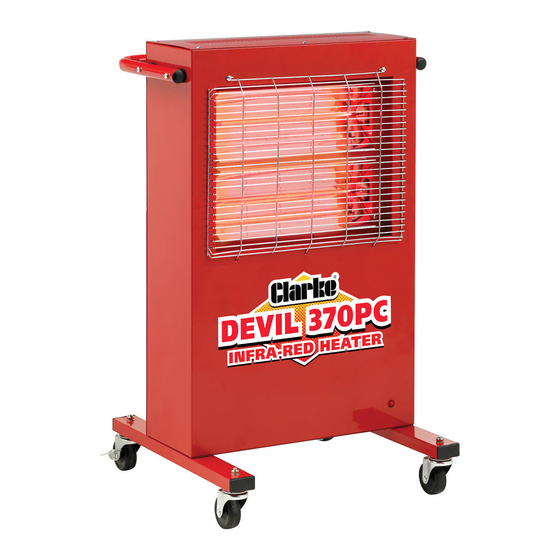

Quartz halogen heater

Advertisement

DEVIL QUARTZ HALOGEN HEATER
MODEL NO: DEVIL 370PC
PART NO: 6926003
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC1218 ISS 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEVIL 370PC and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke DEVIL 370PC

  • Page 1 DEVIL QUARTZ HALOGEN HEATER MODEL NO: DEVIL 370PC PART NO: 6926003 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1218 ISS 1...
  • Page 2: Specifications

    INTRODUCTION Thank you for purchasing this CLARKE Quartz Halogen Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES 1. These heaters are for INDOOR USE ONLY. 2. DO NOT expose the heater or power cable to rain or wet conditions. Any water entering the heater will increase the risk of electric shock. DO NOT use this heater in a bathroom, shower room or any other wet environment. 3.
  • Page 4: Service And Repairs

    7. Check the heater for damage before use. DO NOT use if the heater tubes are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer. SERVICE & REPAIRS 1.
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE POWER SUPPLY. The 230v models are provided with a 13 amp BS 1363 plug, fitted with a 13amp fuse and MUST be connected to a standard, 230 Volt (50Hz) electrical supply, preferably through a suitably fused isolator switch.
  • Page 6: Unpacking And Assembly

    UNPACKING AND ASSEMBLY UNPACKING Before assembling, please check contents against the following list and advise your dealer immediately if any parts are missing. 1 x Heater 2 x Support Legs with castors (2 with brakes) 2 x Halogen tubes 1 x Handle 1 x Fixings pack 1 x Remote control unit ASSEMBLY...
  • Page 7: Using The Remote Control

    OPERATION WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ THESE INSTRUCTIONS BEFORE USE. USING THE REMOTE CONTROL All operations must be done using the remote control. • 2 x AAA batteries are required and are installed as shown by the diagram found inside the remote control unit.
  • Page 8: Programming The Timer

    • The left one controls the upper heating element and the right one controls the lower. 5. Press the ON/OFF button on the remote control to switch the elements on. • The secondary switches will each illuminate to show that the heating element is in use.
  • Page 9 6. Press the TIME button to set the Minutes. 7. Use the + and - buttons to scroll to the minutes you require. 8. Press the TIME button to finish the time and day set up. • The current time and day will show as a constant when the WEEK TIMER is activated.
  • Page 10: Setting Further Programs

    • The second set of digits will flash. 5. Use the + and - arrow keys to select the starting minutes and press the WEEK TIMER button to confirm. • The display will show OF and the first two digits of the clock will flash. You can now set the time the heater will turn off.
  • Page 11: Cleaning And Maintenance

    3. Ensure heating tubes are clear of dust (use compressed air to clean if possible. (ALWAYS wear a dust mask if performing this operation). 4. Refer to your CLARKE dealer if internal repair is required. 5. When storing the heater, allow it to cool down, then place it in its packing box for storage in a dry, ventilated place.
  • Page 12: Fault Finding

    Fuse blown. Replace if necessary and investigate the cause. If fuse blow repeatedly, consult your Clarke dealer. No power at socket Insert plug into a suitable outlet. socket. Tilt safety switch is Ensure unit is upright. If disabling unit.
  • Page 13: Parts Diagram

    PARTS DIAGRAM Description Description Castor (standard) Bolt Castor with Brake Support Frame Ceramic End Cap Control panel assembly Halogen Tube PCB control unit (not shown) Wire Guard Tilt safety switch (not shown) Power cable ON/OFF switch (power) Handle ON/OFF switches (lamps) Plastic spacers Remote control unit (not shown) Parts &...
  • Page 14: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15 NOTES _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
