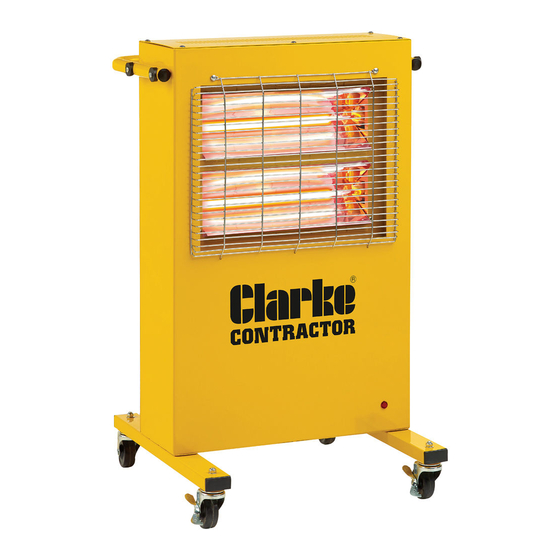

- Page 1 DEVIL QUARTZ HALOGEN HEATER MODEL NO: 371PC PART NO: 6950020 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1119 ISS2...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: General Safety Rules
GENERAL SAFETY RULES 1. These heaters are for INDOOR USE ONLY. 2. DO NOT expose the heater or power cable to rain or wet conditions. Any water entering the heater will increase the risk of electric shock. DO NOT use this heater in a bathroom, shower room or any other wet environment. 3. -
Page 5: Service And Repairs
7. Check the heater for damage before use. DO NOT use if the heater tubes are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer. SERVICE & REPAIRS 1. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS DEVIL 371PC (110V) UNITS The 110V model is fitted with a 32 amp, three pin industrial plug to EN 60309 and MUST be connected to a 110 volt, 1 phase 50 Hz supply through a suitably fused isolator switch. On no account must a 230V, 13 amp (BS1363) plug be used. -
Page 7: Unpacking And Assembly
UNPACKING AND ASSEMBLY UNPACKING Before assembling, please check contents against the following list and advise your dealer immediately if any parts are missing. 1 x Heater 2 x Support Frames with castors (2 with brakes) 2 x Halogen tubes 1 x Handle 1 x Fixings pack 1 X Remote control unit ASSEMBLY... -
Page 8: Using The Remote Control
OPERATION WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ THESE INSTRUCTIONS BEFORE USE. USING THE REMOTE CONTROL All operations must be done using the remote control. • 2 x AAA batteries are required and are installed as shown by the diagram found inside the control unit. -
Page 9: Programming The Timer
• The left one controls the upper heating element and the right one controls the lower. 5. Press the ON/OFF button on the remote control to switch the elements on. • The secondary switches will each illuminate to show that the heating element is in use. - Page 10 6. Press the TIME button to set the Minutes. 7. Use the + and - buttons to scroll to the minutes you require. 8. Press the TIME button to finish the time and day set up. • The current time and day will show as a constant when the WEEK TIMER is activated.
-
Page 11: Setting Further Programs
• The second set of digits will flash. 5. Use the + and - arrow keys to select the starting minutes and press the WEEK TIMER button to confirm. • The display will show OF and the first two digits of the clock will flash. You can now set the time the heater will turn off. -
Page 12: Cleaning And Maintenance
3. Ensure heating tubes are clear of dust (use compressed air to clean if possible. (ALWAYS wear a dust mask if performing this operation) 4. Refer to your CLARKE dealer if internal repair is required. 5. When storing the heater, allow it to cool down, then place it in its packing box for storage in a dry, ventilated place. -
Page 13: Fault Finding
Fuse blown. Replace if necessary and investigate the cause. If fuse blow repeatedly, consult your Clarke dealer. No power at socket Insert plug into a suitable outlet socket. Tilt safety switch is Ensure unit is upright. If... -
Page 14: Component Parts
COMPONENT PARTS Description Description Castor (standard) Bolt Castor with brake Support frame Ceramic end cap Control panel assembly Halogen tube PCB control unit (not shown) Wire guard Tilt safety switch (not shown) Power cable ON/OFF switch (power) Handle ON/OFF switches (lamps) Plastic spacers Remote control unit (not shown) Parts &... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
