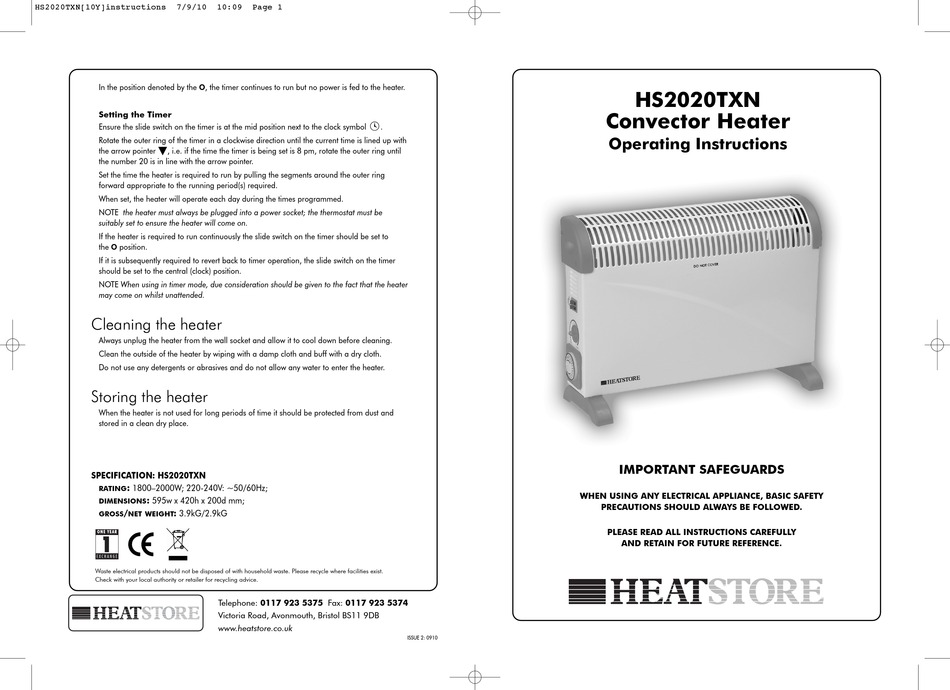

Heatstore HS2020TXN Operating Instructions

HS2020TXN[10Y]instructions 7/9/10
In the position denoted by the O, the timer continues to run but no power is fed to the heater.
Setting the Timer
Ensure the slide switch on the timer is at the mid position next to the clock symbol
Rotate the outer ring of the timer in a clockwise direction until the current time is lined up with
M
the arrow pointer , i.e. if the time the timer is being set is 8 pm, rotate the outer ring until
the number 20 is in line with the arrow pointer.
Set the time the heater is required to run by pulling the segments around the outer ring
forward appropriate to the running period(s) required.
When set, the heater will operate each day during the times programmed.
NOTE the heater must always be plugged into a power socket; the thermostat must be
suitably set to ensure the heater will come on.
If the heater is required to run continuously the slide switch on the timer should be set to
the O position.
If it is subsequently required to revert back to timer operation, the slide switch on the timer
should be set to the central (clock) position.
NOTE When using in timer mode, due consideration should be given to the fact that the heater
may come on whilst unattended.
Cleaning the heater
Always unplug the heater from the wall socket and allow it to cool down before cleaning.
Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
Do not use any detergents or abrasives and do not allow any water to enter the heater.
Storing the heater
When the heater is not used for long periods of time it should be protected from dust and
stored in a clean dry place.
SPECIFICATION: HS2020TXN
: 1800–2000W; 220-240V: ~50/60Hz;
RATING
:
595w x 420h x 200d mm;
DIMENSIONS
/ : 3.9kG/2.9kG
GROSS NET WEIGHT
O N E Y EAR
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
10:09 Page 1
Ç
.
Telephone: 0117 923 5375 Fax: 0117 923 5374
Victoria Road, Avonmouth, Bristol BS11 9DB
www.heatstore.co.uk
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
ISSUE 2: 0910
HS2020TXN
Convector Heater
Operating Instructions
IMPORTANT SAFEGUARDS
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE.
