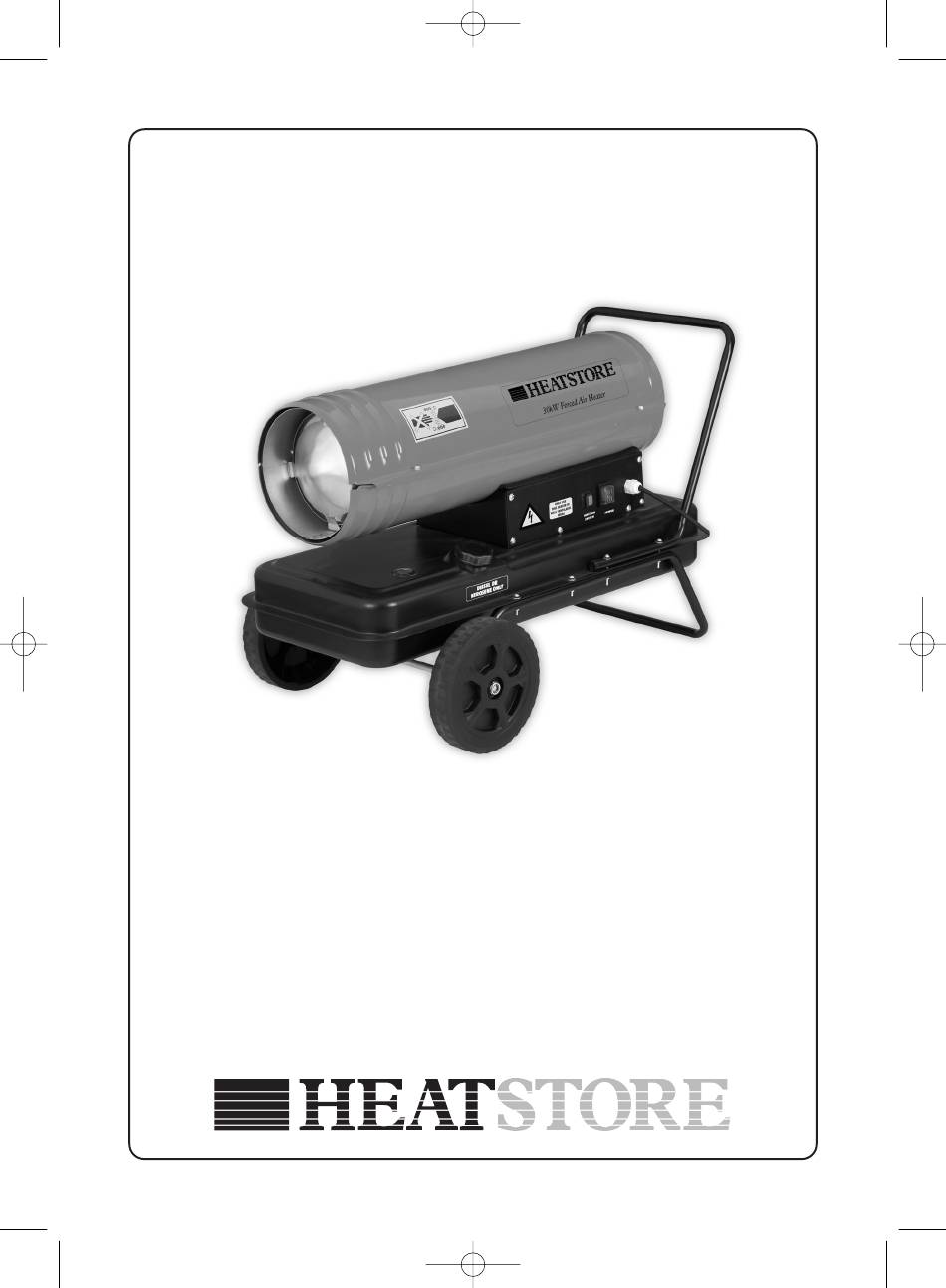

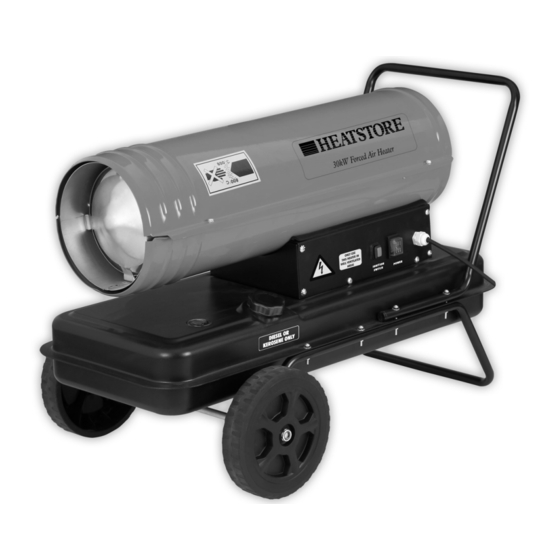

HSFAH30
Forced Air Heater
Installation and Operating Instructions

IMPORTANT SAFEGUARDS

WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSFAH30 and is the answer not in the manual?

Questions and answers

Related Manuals for Heatstore HSFAH30

Summary of Contents for Heatstore HSFAH30

  • Page 1: Important Safeguards

    HSFAH30_instructions 13/7/15 12:55 Page 1 HSFAH30 Forced Air Heater Installation and Operating Instructions IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS...

  • Page 2: Important Safety Instructions

    HSFAH30_instructions 13/7/15 12:55 Page 2 Important Safety Instructions General Safety • DANGER! Risk of carbon monoxide poisoning. Failure to provide proper ventilation could result in serious illness or death. • Check that the heater is in sound condition and good working order.
  • Page 3 HSFAH30_instructions 13/7/15 12:55 Page 3 • DO NOT use the heater in closed rooms, living areas, basements or below ground level. • DO NOT allow unauthorised persons or children to operate the heater. • DO NOT move or handle the heater when hot, without wearing protective gloves.

  • Page 4: Electrical Safety

    HSFAH30_instructions 13/7/15 12:55 Page 4 • DO NOT use an external fuel tank. Only use the tank that is fitted to the heater, and only fill it when the heater has cooled down. • Ensure that the heater is correctly turned off. •...
  • Page 5 HSFAH30_instructions 13/7/15 12:55 Page 5 electrical appliances, if used on business premises, are tested by a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year. • The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and the safety of the appliance operators.
  • Page 6 HSFAH30_instructions 13/7/15 12:55 Page 6 that the restraint is tight. Overview of heater parts and dimensions A Hot air outlet B Upper shell C Front handle D Air inlet guard Motor assembly Fuel tank G Lower tube frame H Power plug Power switch Start-up switch K Control panel...

  • Page 7: Before Operation

    HSFAH30_instructions 13/7/15 12:55 Page 7 Figure 3 Frame Assembly Assembling wheels and tube frame Insert the wheel axle to the corresponding hole of lower tube frame, set bush G at the two ends of wheel axle H. Then slide the wheel F over the wheel axle H, put on the wheel cap E.
  • Page 8 HSFAH30_instructions 13/7/15 12:55 Page 8 How to fill the tank Make sure the power plug is removed from the power source and the power switch is in OFF position “0”. Place the appliance on stable and level ground, remove the fuel cap and fill the fuel tank – see figure 4.
  • Page 9 HSFAH30_instructions 13/7/15 12:55 Page 9 Turning off the heater When you shut off the heater, make sure the flame is out before you leave the heater. Put the power switch to position “0” waiting as the fan stop working and the indicator extinguishes, then remove the plug from the socket.

  • Page 10: Maintenance

    HSFAH30_instructions 13/7/15 12:55 Page 10 blades, enters the flame steady plate and the burner, supplying additional oxygen to the burner, making the burning more efficient. The fan dissipates heat from the burner interior to the outside, so that the burner surface will not overheat.

  • Page 11: Troubleshooting

    HSFAH30_instructions 13/7/15 12:55 Page 11 Trouble Shooting Please use the guide below before returning the product. YMPTOM ROBLEM OLUTION Heater does not start No power Make sure the power is connected Power-cut Switch the unit on when power is restored Smoke/dust/fire from outlet Low Voltage Ensure unit is supplied the correct voltage...

  • Page 12: Fuel Consumption

    HSFAH30_instructions 13/7/15 12:55 Page 1 Specification: HSFAH30 RATING 30kW, 10500BTU; 25,800 Kcal/h; : 180W; MOTOR POWER OPERATING PRESSURE @ 30kW, output: 0.75 Bar; AIR OUTPUT 752m /h, continuous usage – 9 hours; : Diesel Oil/Kerosene; FUEL TYPE : 2.5 litre/h;...
