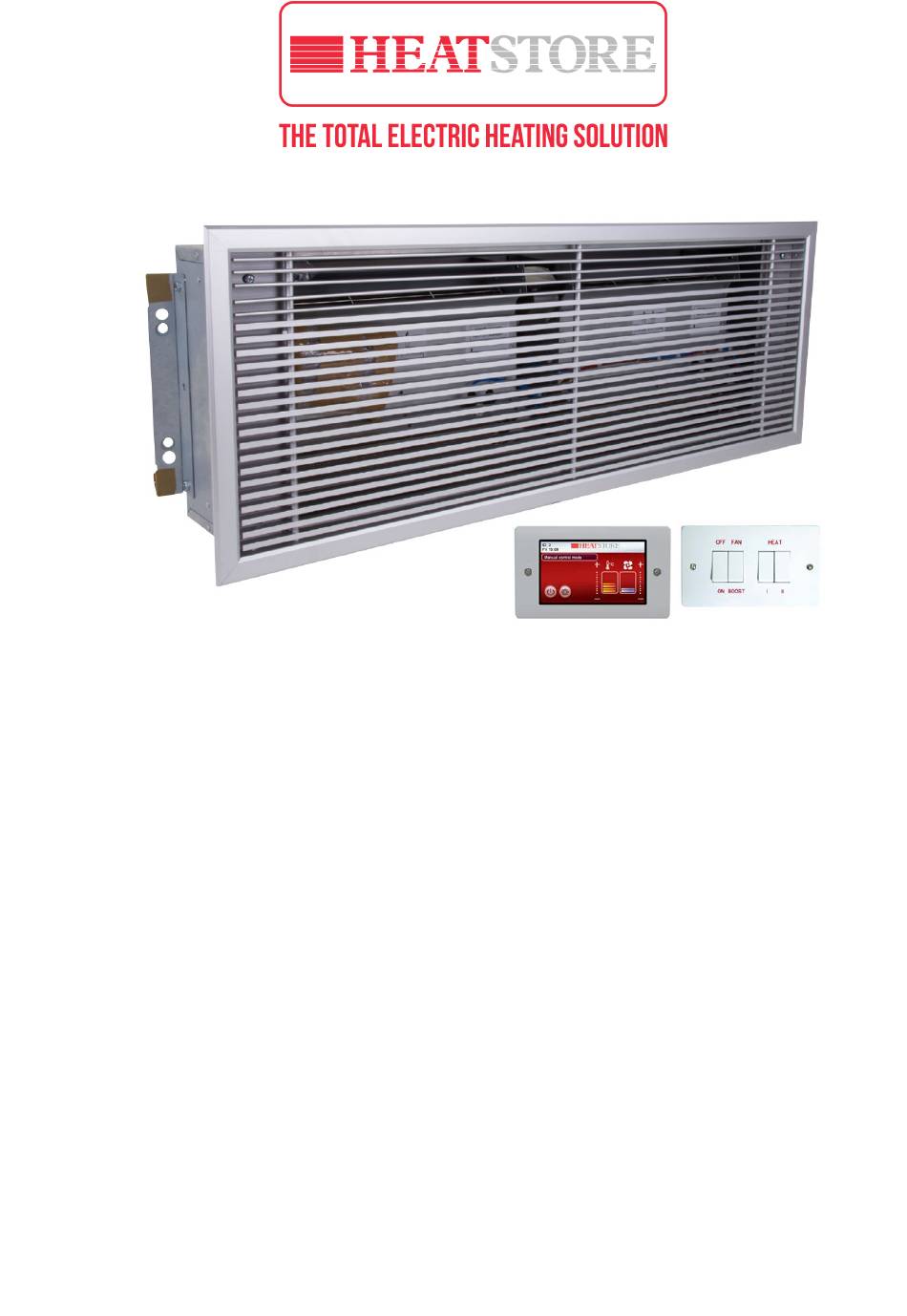

Recessed Warm Air Curtains
Installation and Operating Manual
HSACR9000XE, HSACR12000XE
All electrical appliances produced by the company are guaranteed for two years against
faulty materials or workmanship. This applies only if the appliance has been used for
purposes in accordance with the instructions provided and has not been connected to an
unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by
any person not authorised by us. This guarantee is offered to you as an extra benefit and does not
affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing.
In the interest of progress the company reserve the right to vary specifications from time to time
without notice.
Advertisement
Table of Contents
Related Manuals for Heatstore HSACR9000XE
Summary of Contents for Heatstore HSACR9000XE
- Page 1 Recessed Warm Air Curtains Installation and Operating Manual HSACR9000XE, HSACR12000XE All electrical appliances produced by the company are guaranteed for two years against faulty materials or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.
-
Page 2: Table Of Contents
5 Technical Specification 5.1 Specification 6 Wiring Details 6.1 Installer Wiring 6.2 Factory Wiring - Convertible - HSACR9000XE 6.3 Factory Wiring - Non Convertible - HSACR12000XE 6.4 Network Wiring - Controller 6.5 Network Wiring - Mechanical Switches 7 Modifying the heater to single phase operation 7.1 Internal Wiring Modifications. -
Page 3: General Information
Heatstore will void operation of the air curtain. The discharge manufacturer’s warranty and potentially opening should be as close to the top of create a hazard. -
Page 4: Introduction
2. Introduction 2.1 Warnings 2.3 Touchscreen Controller This instruction manual describes the recessed The HSACMC is an electronic controller (not range of air curtains. They are designed for supplied with the heater) giving options for discreet positioning above the doorways of retail eight fan and eight heat settings can be or commercial premises up to 3.4m ceiling mounted up to 50m from the air curtain(Not... -
Page 5: Dimensions & Fixing Locations
3. Dimensions & Fixing locations 3.1 Air Curtain Dimensions... -
Page 6: Installation Details
4. Installation Details 4.1 Mounting All units should be installed horizontally directly over the door opening. Before fitting or wiring the air curtain, ensure the outlet is facing the doorway. Care must be taken to allow complete free air movement into the inlet grilles of the unit to ensure correct working operation of the air curtain. -
Page 7: Grille Removal
4. Installation Details 4.4 Grille Removal —Remove Step 1 all screws on air outlet side — Loosen all Step 2 screws on air inlet side. They are in keyhole slots and do not need to be fully removed. Step 3—An EARTH lead is connected to the lid from the unit * this screw is only... -
Page 8: Technical Specification
5. Technical Specifications... - Page 9 5. Technical Specifications...
-
Page 10: Wiring Details
6. Wiring Details 6.1 Installer Wiring CAT5 cable... -
Page 11: Factory Wiring - Convertible - Hsacr9000Xe
6. Wiring Details 6.2 Factory Wiring - Convertible (HSACR9000XE) -
Page 12: Factory Wiring - Non Convertible - Hsacr12000Xe
6. Wiring Details 6.3 Factory Wiring - Non Convertible (HSACR12000XE) -
Page 13: Network Wiring - Controller
6. Wiring Details 6.4 Network Wiring - Controller To connect the air curtain with a controller, switch the first three switches to 100X with X being dependant on the installation height (refer to page 13). The CAT5 cable with RJ45 connectors can be used to network up to seven air curtains in a daisy-chain configuration. -
Page 14: Network Wiring - Mechanical Switches
6. Wiring Details Network Wiring - Mechanical Switches The air curtain can be also controlled by mechanical switches. In this configuration touchscreen controller or BMS controls will not work. To operate heater by mechanical switches, the DIP switches on the main PCB need to be set to 000X. -
Page 15: Internal Wiring Modifications
7. Modification for use on single phase HSACR9000XE are supplied as 3 phase only appliance. In order to use the appliance with a single phase supply, the internal wiring has to be modified. The appliance is supplied with a single phase conversion kit. - Page 16 7. Modification for use on single phase 7.2 Modification of internal wiring of the heating element for single phase operation Step 2. Step 1. Step 4. Step 3.
- Page 17 7. Modification for use on single phase 7.3 Modification for use on single phase (HSACR9000XE)
-
Page 18: Fault Detection And Leds
8. Fault detection and LEDs 8.1 Fault detection Secondary Main PCB Number Fault of flashes Main PCB Power measurement when triacs switched off: Response: Auto run motor Motor fault Response: Disable heating Triac heatsink overheat: Response: Reduce heating Main PCB Low power measurement when triacs switched on: Causes: Thermal cut-out operated,... -
Page 19: Bms Connection Modbus Protocol
9. BMS Connection MODBUS Protocol 16 Bit Input Registers: 9.1 BMS Connection 1 Status The heater is compatible with BMS systems using 2 Temp 1 MODBUS protocol. 3 Temp 2 4 Temp Heatsink The connection to BMS system can be made 5 Temp External using one of the RJ45 connectors. -
Page 20: Touchscreen Controller Operation
The PIN can be completely disabled, enabled for settings only or all functions. The default Pin is set as 1234, but can be changed using the Change Pin button. If the PIN is forgotten contact Heatstore technical help. 10.5 Timer All functions and settings are available from this menu. -
Page 21: External Switches
10. Touchscreen Controller Operation - cont. 10.6 Timer SW2 is intended for a remote switch that can be used to disable the air curtain from a remote location. Usually this would be a simple BMS or external timer connection. Once disabled using remote switch, the air curtain can’t be controller by the touchscreen controller and will remain disabled until enabled remotely. -
Page 22: Automatic Mode
10. Touchscreen Controller Operation - cont. 10.12 Temperature Mode 2 10.10 Automatic Mode This operating mode is suitable for situations Automatic Mode is the best choice for easy where the heater is used to maintain the room to setup efficiency and comfort. Set the temperature or where the requirement is to height by moving the slider to the required adjust the heat output based on the indoor/... -
Page 23: Energy Usage
10. Touchscreen Controller Operation - cont. 10.13 Heater status 10.13 Heater status - cont. The general status screen shows details about the The Status screen provides an overview of heater and all of the internal blower units. The values from all connected heaters. The heater needs to be run before some of the heaters need to be run before some of the values can be calculated. -
Page 24: Declaration Of Conformity
BS EN 60335.2.30 (2009) • ETSI BSEN 303 645 HSACR9000XE, HSACR12000XE • Martyn Field ESPONSIBLE ERSON Technical Manager OSITION 30/10/24 Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Telephone: 0117 923 5375 Email: enquiries@heatstore.co.uk http://www.heatstore.co.uk VERSION 02 10/24 HI5_01_2024...
