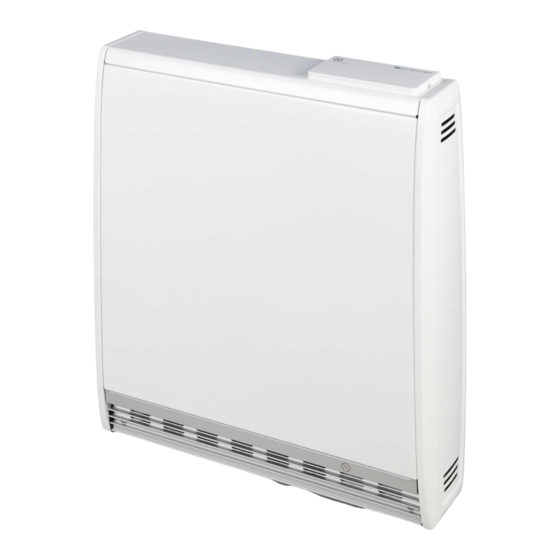

- Page 1 OPERATING MANUAL Dynamic High Heat Retention (HHR) Storage Heater Models: HSDHHR050, HSDHHR070, HSDHHR100 HSDHHR125, HSDHHR150 08/83007/0 ISSUE: 1 - 1 -...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance Warnings in this document are identifi ed by a warning triangle against a grey background. Keywords at the start of a warning indicate the type and seriousness of the ensuing risk if measures to prevent the risk are not taken.
- Page 3 CAUTION: Do not use if either of the heater’s mains power leads become damaged. If the supply cord is damaged it must be replaced by the installer or an approved Heatstore service partner. Do not sit or stand on the heater.
- Page 4 ELECTRICAL INSTALLATION continued The heater is not fi tted with a mains cable, this should be fi tted by the installer. Cable type (minimum size) H05VV-F 1.5mm² three core for peak and 2.5mm² three core for off-peak for connection to the fi xed wiring of the premises through suitable isolation devices positioned adjacent to the heater.
- Page 5 This document is customer property and is to remain with this unit. These instructions do not cover all the different variations of systems nor does it provide for every possible contingency to be met in connection with installation. WARNING EARTHING This appliance must be earthed in accordance with the manufacturers recommendations and in accordance with IEE regulations for electrical equipment.
- Page 6 WARNING To avoid a fi re hazard the cardboard insert within the heater core must be removed before the heater is switched on. Also ensure all polystyrene packaging is removed before the heater is operated. Leaving combustible packaging in the appliance could lead to fi...
- Page 7 - 7 -...
-
Page 8: Technical Details
Type of heat output / room temperature control Electronic room temperature control plus week timer Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Tel: 0117 923 5375 This product meets the Ecodesign requirements for an electric storage local space heater. Commission Regulation (EU) 2015/1188. - Page 9 1/N/PE ~230-240V (Single Supply) 230-240V / 50Hz Class I Traffi c White (RAL 9016), Colour / Finish Grille RAL7035 Storage Core High-density bonded magnetite energy cells Approvals CE, BEAB 2 Years Guarantee 10 Years extended available with registration Country of Origin United Kingdom Heatstore Manufacturer - 9 -...
-
Page 10: Product Clearances
Product Clearances WARNING: DO NOT PLACE OBJECTS WITHIN 300mm OF THE FRONT OF THE HEATER AND 150mm EITHER SIDE 250mm 150mm 150mm 300mm Single Supply It is important to be aware of how your Dynamic storage heater has been installed electrically. If your heater has only one electrical connection, it must be carefully confi... -
Page 11: First Time Power-On
First Time Power-On A setup wizard will display when the product is powered on for the fi rst Important time. This will set the following: During initial heat-up, some odour may be emitted due to the newness of materials • Time, Date, Daylight Savings Time used in manufacture. -
Page 12: Operation
Operation WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE The controls are located on the top of the heater consisting of a display screen and three buttons and a Dial. Display Screen ‘Menu’ Button Ou t A l l D a y ADVANCE ‘Back’... -
Page 13: User Timer
The heater controls can be easily adjusted by using the Dial and buttons on the User Interface. 1. The Home Screen shows the options available at each stage of User Timer adjustment. Here the current target room temperature is displayed along with the mode of operation. -
Page 14: Timer Modes
Timer Modes Timer Modes offer the most effi cient mode of operation for a predictable heat demand. Additional functions such as Advance and Boost allow the User to make temporary adjustments to timer schedules for a more fl exible operation. Each timer is broken down into 4 defi... - Page 15 Available Timer Modes To choose a timer mode, press Menu from the home screen. Rotate the Dial to highlight ‘Modes’, then press Dial to select. ‘Timer Mode’ should be highlighted, press the Dial to select. Manual Main Menu Modes ADVANCE ADVANCE ADVANCE Boost...
-
Page 16: Copy And Paste
Modifying a Timer Mode Each timer is broken down into 4 defi nable ‘Heating On’ periods and temperatures NOTE: Once modifi ed a Timer Mode per day. must be selected if you want to begin using it. When Modify is chosen, ‘Heating On’ period 1 of 4 for the current day is displayed. -
Page 17: Away Mode
The ‘Advance’ Function The Advance button is only used when a Timer Mode is active and allows the timer schedule to be changed temporarily. This button allows a ‘Heating On’ period to begin or end early. This is useful if you are at home when you had not planned to be, or need to leave when you had planned to have the heating on. If the heater displays ‘Heating Off’... - Page 18 Return Return Timer Mode ADVANCE ADVANCE ADVANCE Date/Time Date/Time User Timer Saturday MENU MENU MENU Home All Day 31-2-18 Out All Day 07:00 Away BACK BACK BACK ° Away Set ADVANCE Away NOTE: ° The Back button can be used to end MENU the Away Mode countdown early.
-
Page 19: Boost Mode
Boost Mode Boost can be activated at any time, when the product is set to any Timer or Continuous heat mode; even if Advance is active, this mode will provide a temporary ‘Boost’ of heat. For settings, see Boost settings on page 21. Boost Mode can be activated from the Home Screen by pressing ‘Menu’... - Page 20 Product Locks Product Locks are methods of locking the heater’s controller to restrict access to functions. This can be activated and confi gured via the Settings Menu. When Product Lock is activated, the heater continues to run in whichever mode is currently active and any/all wireless communications remain active if enabled.
- Page 21 PIN Lock Exceptions It is possible to allow the ‘Advance’ and ‘Boost’ functions to be enabled/disabled when PIN Lock is active. There are up to 4 exceptions. These exceptions include: - Advance • Ability to activate using the ‘Advance Button’ - Boost •...
- Page 22 Settings To navigate to the Settings Menu, from the Home Screen: Main Menu Settings Heater Lock Boost Boost Press the Menu button to access the Main Menu. Rotate the Dial to highlight Setback Modes Date / Time ‘Settings’, then press the Dial. Each of the following headings relate to an item Sound Settings Comms Adaptive...
- Page 23 Boost Settings Default Boost Target Temperature This is the default Boost Target Temperature that is used when ‘Boost Mode’ is activated. Max Boost Duration This is the maximum length of time that the user is able to activate ‘Boost’ for. Shown in minutes (when under an hour) or hours (if over an hour) in the following increments: 30 mins, 1 hour, 2 hours, 3 hours, 4 hours.
- Page 24 Adaptive Settings Open Window Detection This is a global setting that can interrupt any active mode. Activating this setting enables Open Window Detection to switch the Heater to a ‘Heating OFF’ state if it detects an open window in the room it’s operating in. Adaptive Start Adaptive Start is predictive function that only modifi...
-
Page 25: Error Codes
Error Codes Error codes are to be defi ned as a list. Each error code must be defi ned as a perimeter that Central Control can read. Fault Code Description Component thermistor hardware fault Component overheat Internal serial comms error Heating element fault Open window detected Low water... -
Page 26: Battery Replacement
Battery Replacement IMPORTANT: Before replacing the battery ensure the heater is isolated from the electricity supply. NOTE: Battery should be disposed of in an appropriate manner This product is fi tted with a replaceable battery in the controls. To replace the battery, follow the steps below: 1. - Page 27 Important During the initial operation, some odour may be noticed due to the newness of materials used in manufacture. This is normal and will disappear after a short period of use. It is however advisable to keep the room well ventilated Cleaning WARNING - ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING...
- Page 28 If you are a consumer and you experience a problem with your Heatstore product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Heatstore Guarantee will cover repair or - at the discretion of Heatstore –...
- Page 29 You must provide to Heatstore or its authorised agents on request the original receipt as proof of purchase and - if required by Heatstore - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
- Page 30 - 30 -...
- Page 31 - 31 -...
- Page 32 Tel: 0117 923 5375 enquiries@heatstore.co.uk Heatstore Unit 12, Access 18, Bristol, BS11 8HT © Heatstore. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Heatstore. - 32 -...
