Grizzly T27946 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T27946 4-Drawer Rolling Tool Cabinet
requires some assembly. Follow the instructions
below for assembly, operation, and maintenance.

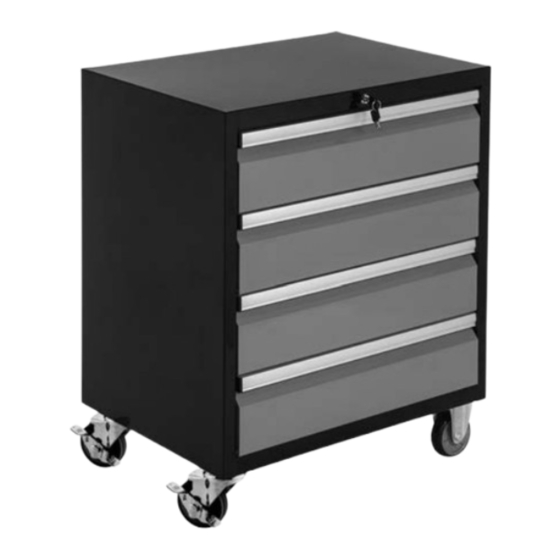

Figure 1. Model T27946.
Inventory
• Tool Cabinet with Drawers ........................... 1
• Keys ............................................................. 2
• Fixed Casters .............................................. 2
• Swivel Casters w/Brake ............................... 2
• Slot Head Screws M8-1.25 x 12 ................ 16
• Flat Washers 8mm .................................... 16
• Lock Washers 8mm ................................... 16
COPYRIGHT © MAY, 2017 BY GRIZZLY INDUSTRIAL, INC., REVISED MAY, 2017 (KB)
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 05/17) #JH18537 PRINTED IN CHINA
4-DRAWER ROLLING
• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Only open one drawer at a time.
— Only move or transport cabinet with all
drawers closed and locked.
• Do not exceed weight capacities:
— Max individual drawer weight limit
is 200 lbs.
— Max total tool cabinet weight limit
(including contents) is 800 lbs.
• To prevent accidental rolling, always lock
caster brakes after moving cabinet.
• Do not allow children to have unsupervised
access to cabinet.
Assembly
The Model T27946 comes with two fixed casters
and two swivel casters with brakes.
To install casters:
1. With help from another person, lay cabinet
Qty
upside down on floor (see Figure 2).
Note: We recommend sweeping the floor
clean and laying down a piece of cardboard
or a blanket to prevent scratching the finish
during this step.
MODEL T27946
TOOL CABINET
INSTRUCTIONS
V2.05.17
