Hooker Furniture 5300-75410 Assembly Instruction

Splatback side chair

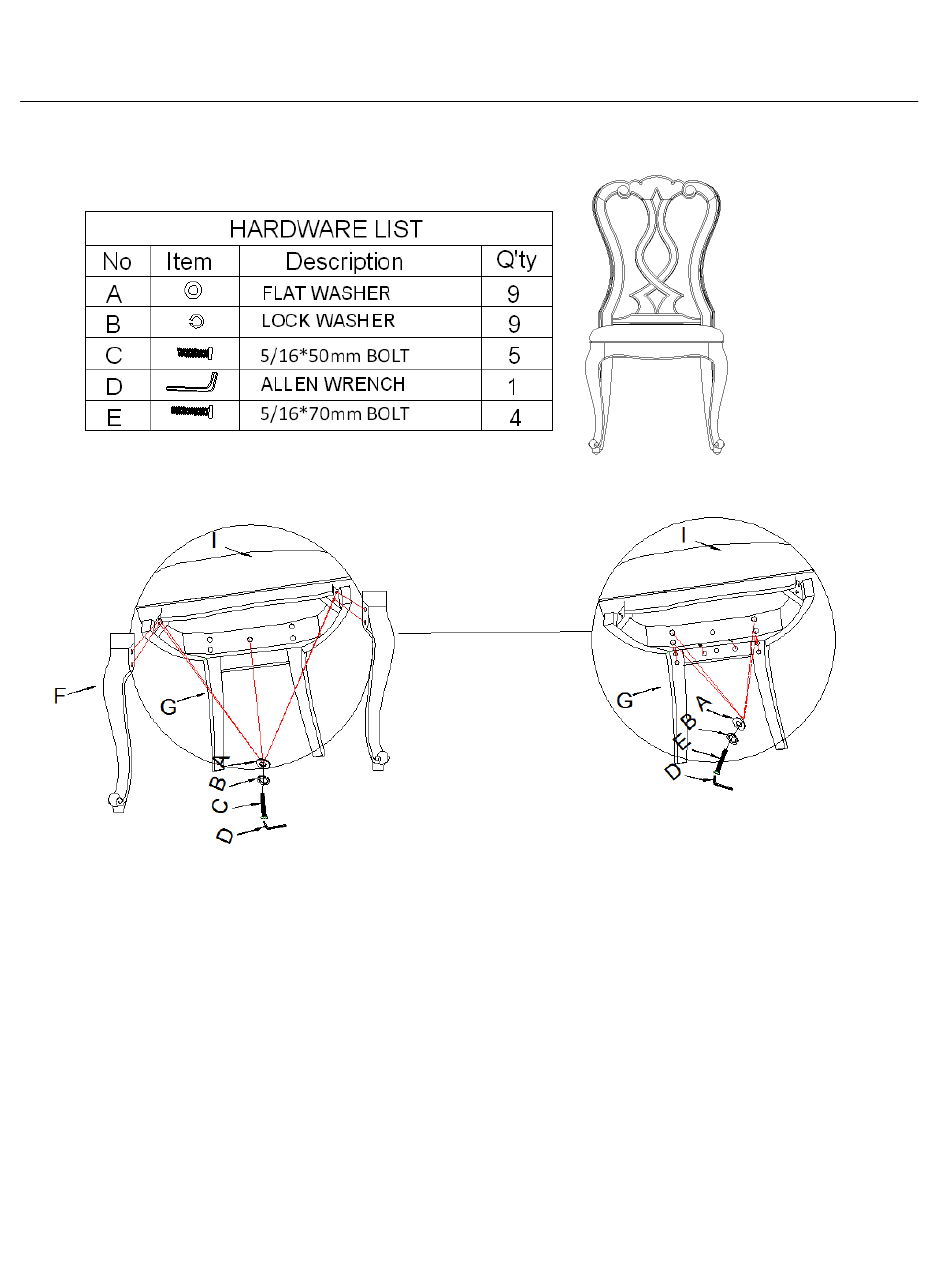

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair

during assembly.

1. Place chair back (G) on a clean surface.

2. Tighten seat frame (I) to chair back (G) by using bolt (C), lock washer (B) and flat washer (A) at the

center location. (see diagram 2) Then, tighten seat frame (I) to chair back (G) by using bolts (E),

lock washers (B), flat washers (A). (See diagram 1)

3. Assemble front legs (F) with front corner blocks of seat frame (I), using 4 bolts (C), 4 lock washers

(B) and 4 flat washers (A). Tighten all bolts by hand. (See diagram 2)

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following the "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

Item#: 5300-75410 Splatback Side Chair-2 per carton

DIAGRAM 2

1/2

DIAGRAM 1

Table of Contents

Do you have a question about the 5300-75410 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 5300-75410 Splatback Side Chair-2 per carton ** Please make sure you have all parts indicated below prior to assembly. Assembly Steps: DIAGRAM 2 DIAGRAM 1 There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair during assembly.
Page 2 PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE CHAIRS CHAIR LEVELING INSTRUCTION SUPPLEMENT Chair leveling procedures: To make the assembly process easy and efficient, please read the entire instruction sheet prior to assembling of the chair. Make sure all hardware listed is included. To properly assemble the chair, none of the bolts should be fully tightened until all components are attached to the chair.
