DirectCX
Camera
Installation Manual
TC-B5501X
TC-B5501XP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DirectCX TC-B5501X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DirectCX TC-B5501X

Summary of Contents for Idis DirectCX TC-B5501X

  • Page 1 DirectCX Camera Installation Manual TC-B5501X TC-B5501XP...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

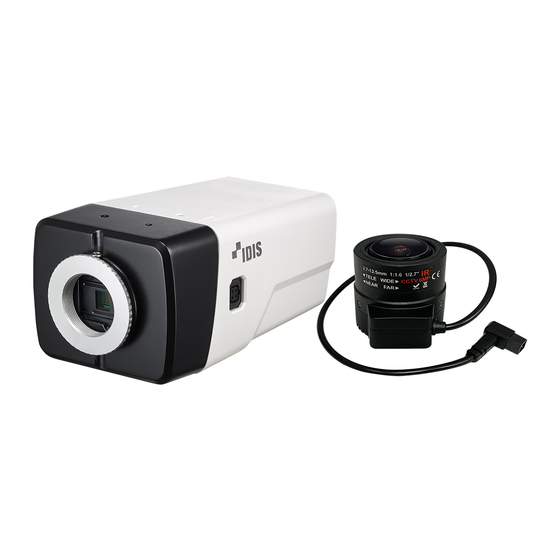

    Part 1 – Introduction Product Features TC-B5501X/XP is an analog camera that transmits video over coaxial. • Support for DC 12V and PoC (coaxial force) PoC: TC-B5501XP Model Only • Wide dynamic range compensation (True WDR) for improved video quality in high-contrast situations •...

  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Camera C-Mount Ring Installation Parts Protective Cover (attaches to camera) Quick Guide...

  • Page 8: Overview

    Part 1 – Introduction Overview • Mount Bracket Installation Hole This bracket can be installed on either top or bottom of the camera. Use 1/4–20 UNC (20-thread), 2.5mm +/- 0.2mm (ISO standard), or 0.197 (ASA standard) Product color and design may vary depending on the standard screw.

  • Page 9: Rear

    Part 1 – Introduction Rear TC-B5501XP TC-B5501X Power LED BNC Video Out Power (DC 12V) OSD button Power LED • Power LED BNC Video Out Displays the system operating status. OSD button • BNC Video Out Connect to the PoC Power unit •...

  • Page 10: Installation

    Part 1 – Introduction Installation C-Mount Lens The lens must be purchased separately. If you'd like to purchase a lens, contact your camera retailer. This camera supports manual iris lenses and DC type auto iris lenses, it can be mounted with CS-mount or C-mount type when connect to the camera.

  • Page 11: Dimensions

    Part 1 – Introduction Dimensions Front 74mm 60mm 74mm 60mm 121.8mm Side 121.8mm...

  • Page 12: Part 2 - Camera Connection

    Part 2 - Camera Connection DirectCX DVR Layout TC-B5501X TVI Camera Power VGA Monitor Out Network HDMI Monitor Out iRAS Remote Monitoring...
  • Page 13 Part 2 - Camera Connection TC-B5501XP PoC Power Unit TVI Camera Power VGA Monitor Out Network HDMI Monitor Out iRAS Remote Monitoring...

  • Page 14: Part 3 - Appendix

    Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. If using the PoC power, check the connection of the coaxial cable. • Check the power outlet. If using the PoC power, check the device power. I can't see Live videos.

  • Page 15: Specifications

    Part 3 - Appendix Specifications These product specifications may change without prior notice. Camera Image Sensor 1/2.8" CMOS Max. Resolution 2592x1944 Scanning Mode Progressive Scan Lens type Optional (CS/C-Mount) Iris Control Manual iris, DC type auto iris (megapixel recommended) Min. Illumination COLOR : 0.12Lux @ F 1.3 B&W : 0.06Lux @F 1.3 Dynamic Range...
  • Page 16 Part 3 - Appendix Video Video Output TVI / AHD / SD Max. Frame Rate 20fps : 2592 x 1944 12.5fps : 2592 x 1944 30fps : 2560 x 1440 30fps : 1920 x 1080 30fps : 720 x 480 Supported Resolution 2592 x 1944, 2560 x 1440, 1920 x 1080, 720 x 480 General...
  • Page 18 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
