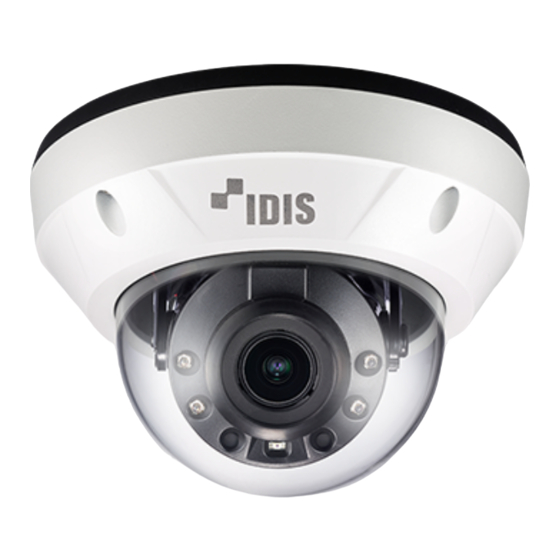

- Page 1 DirectCX Camera Quick Guide TC-D5531RX TC-D5531RXP TC-D5531WRX TC-D5531WRXP TC-D5532RX TC-D5532WRX...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. Item Camera Quick Guide Screws and Anchors (each 2 ea.) ( TC-D5531RX/RXP , TC-D5532RX Screws and Anchors (each 3 ea.) ( TC-D5531WRX/WRXP, TC- D5532WRX only) only) Desiccant, Double-sided Tape ( TC-D5531WRX/WRXP , TC-...
- Page 5 Wall/Ceiling Installation Hole Lens Safety Hook Wall/Ceiling Installation Hole Desiccant Insertion Location Bottom Cover Clamp I/O Device Port TC-D5531RX/D5531WRX, TC-D5532RX/ WRX Power In (DC 12V / AC 24V) AC 24V —TC-D5532RX/ WRX only BNC Video Out (Yellow Cable) OSD Button...
-
Page 6: Camera Installation
Camera Installation TC-D5531RXP/D5531WRXP Removing the Dome Cover TC-D5531RX/D5531RXP, TC-D5532RX BNC Video Out (Black Cable) Turn the dome cover counterclockwise. OSD Button Remove the dome cover. Quick Guide... - Page 7 • Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. TC-D5531RX/D5531RXP, TC-D5532RX Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling.
- Page 8 Desiccant is presented for preventing moisture. Attach the the desiccant to the designated area by using the enclosed double-sided tape. Angle Adjustment Desiccant TC-D5531RX/TC-D5531RXP, TC-D5532RX Desiccant Insertion Location Double-sided Tape Secure the desiccant with the clamp to prevent it from falling off.
- Page 9 Closing the Dome Cover TC-D5531RX/D5531RXP, TC-D5532RX Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. TC-D5531WRX/D5531WRXP, TC-D5532WRX Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera.
-
Page 10: Specifications
No FCC and CE certification for TC-D5531RXP/TC-D5531WRXP. External TC-D5531RX/RXP, 122mm x 103.4mm (4.8" x 4.07") Dimensions (Ø x H) TC-D5532RX TC-D5531WRX/WRXP, 155mm x 105mm (6.10" x 4.13") TC-D5532WRX Weight (Main Unit) TC-D5531RX 0.285kg (0.62lb) TC-D5531RXP 0.315kg (0.69lb) TC-D5531WRX 0.81kg (1.78lb) TC-D5531WRXP 0.84kg (1.85lb) TC-D5532RX 0.3kg (0.66lb) - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
