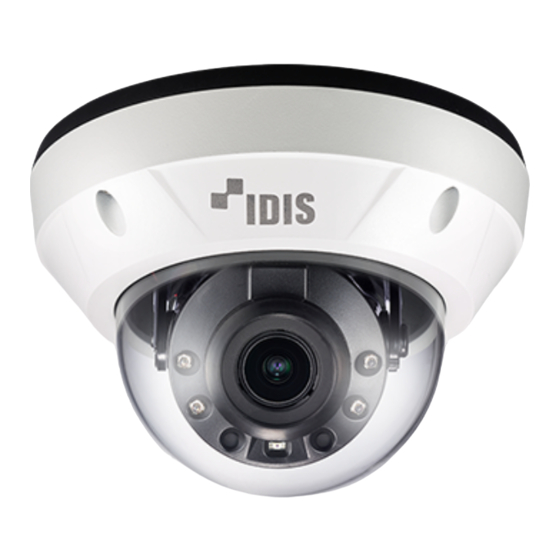

Idis TC-D5531RX Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Digital Camera
  5. TC-D5531RX
  6. Operation manual

Idis TC-D5531RX Operation Manual

Directcx camera
Hide thumbs Also See for TC-D5531RX:
Table of Contents

Advertisement

Quick Links

Download this manual
DirectCX
Camera
Operation Manual
TC-D5531RX
TC-D5531RXP
TC-D5531WRX
TC-D5531WRXP
TC-D5532RX
TC-D5532WRX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-D5531RX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis TC-D5531RX

Summary of Contents for Idis TC-D5531RX

  • Page 1 DirectCX Camera Operation Manual TC-D5531RX TC-D5531RXP TC-D5531WRX TC-D5531WRXP TC-D5532RX TC-D5532WRX...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS camera.Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Menu Setup ......... . 6 Lens .

  • Page 6: Part 1 - Menu Setup

    Part 1 - Menu Setup Lens Use the OSD button equipped on the I/O device port to set up the OSD menu. Press the OSD button to launch the MENU screen. From the MENU screen, move the yellow indicator to the LENS using the UP or DOWN button.

  • Page 7: Motorized

    • The shutter speed value of the MANUAL mode • TC-D5531RX/WRX, TC-D5532RX/WRX: Zoom and is adjustable from 1/30 to 1/30,000. focus work simultaneously. • The WDR MODE in the BACK LIGHT menu does not •...

  • Page 8: White Balance

    Part 1 - Menu Setup White Balance • MANUAL: From the C-TEMP, set appropriate color temperature and then adjust the R-GAIN and the B-GAIN seeing the colors of subjects. The WHITE BALANCE function allows you to change color representation in difficult lighting conditions. From the MENU screen, move the yellow indicator to the WHITE BAL using the UP or DOWN button.

  • Page 9: Backlight Compensation

    Part 1 - Menu Setup Backlight Compensation • BLC: When a subject is against strong light, BLC allows you to see the background of the subject clearly. You can set up the applying area so that the area can be seen obvious. The BACKLIGHT function allows you to choose HLC, BLC, ACE, and WDR MODE for correcting overly-bright backlit sceneries.
  • Page 10 Part 1 - Menu Setup • WDR: When objects are not identified and seen dark, POLYGON WDR allows you to see the screen vivid and clear. Select the applying area in the shape of polygon. The four vertexes can be moved in order to adjust LENS function does not work while the WDR mode is a range.

  • Page 11: Day&Night Function

    Part 1 - Menu Setup Day&Night Function • COLOR: Always displays the screen in color. • B&W : Always displays the screen in black and white. The DAY&NIGHT function allows you to define screen in COLOR or B&W(black & white). From the MENU screen, move the yellow indicator to the DAY&NIGHT using the UP or DOWN button.

  • Page 12: Dynamic Noise Reduction

    Dynamic Noise Reduction Image Compensation The DNR(Dynamic Noise Reduction) function lets you The IMAGE function allows you to optimize the image eliminate or reduce the image noise produced in low- quality by adjusting various options. light conditions. Equipment of 3DNR technology in this product excellently reduces the noise.
  • Page 13 • D-ZOOM: You can enable the camera to perform - CB LEVEL: Adjust the blue color range of the zone. digital zooming. The magnifying power value is (0~20) adjustable from 1.0x to 16.0x. Increasing magnifying - CR LEVEL: Adjust the red color range of the zone. power value makes the resolution lower.

  • Page 14: Motion Detection

    Part 1 - Menu Setup Motion Detection - CB LEVEL: Adjust the blue color range of the zone. (0~20) - CR LEVEL: Adjust the red color range of the zone. The MOTION function enables the camera to detect (0~20) moving objects. - TRANS: Adjust the transparency of the zone.

  • Page 15: System

    Part 1 - Menu Setup System Additional settings can be specified at SYSTEM. From the MENU screen, move the yellow indicator to the SYSTEM using the UP or DOWN button. Press the OSD button to display the submenus of the SYSTEM. - WINDOW USE: Select the detection window.
  • Page 16 Part 1 - Menu Setup • LANGUAGE: Select one of the languages. (ENG/CHN/ CHN[S]/JPN/KOR) • CAM TITLE: Display the name of the camera in a certain area of the screen. (OFF/RIGHT UP/LEFT DOWN) After selecting the area, press OSD button to name the camera.

  • Page 17: Save & Exit

    Part 1 - Menu Setup Save & Exit Press SAVE&EXIT button to save the settings and exit. V1.2...
