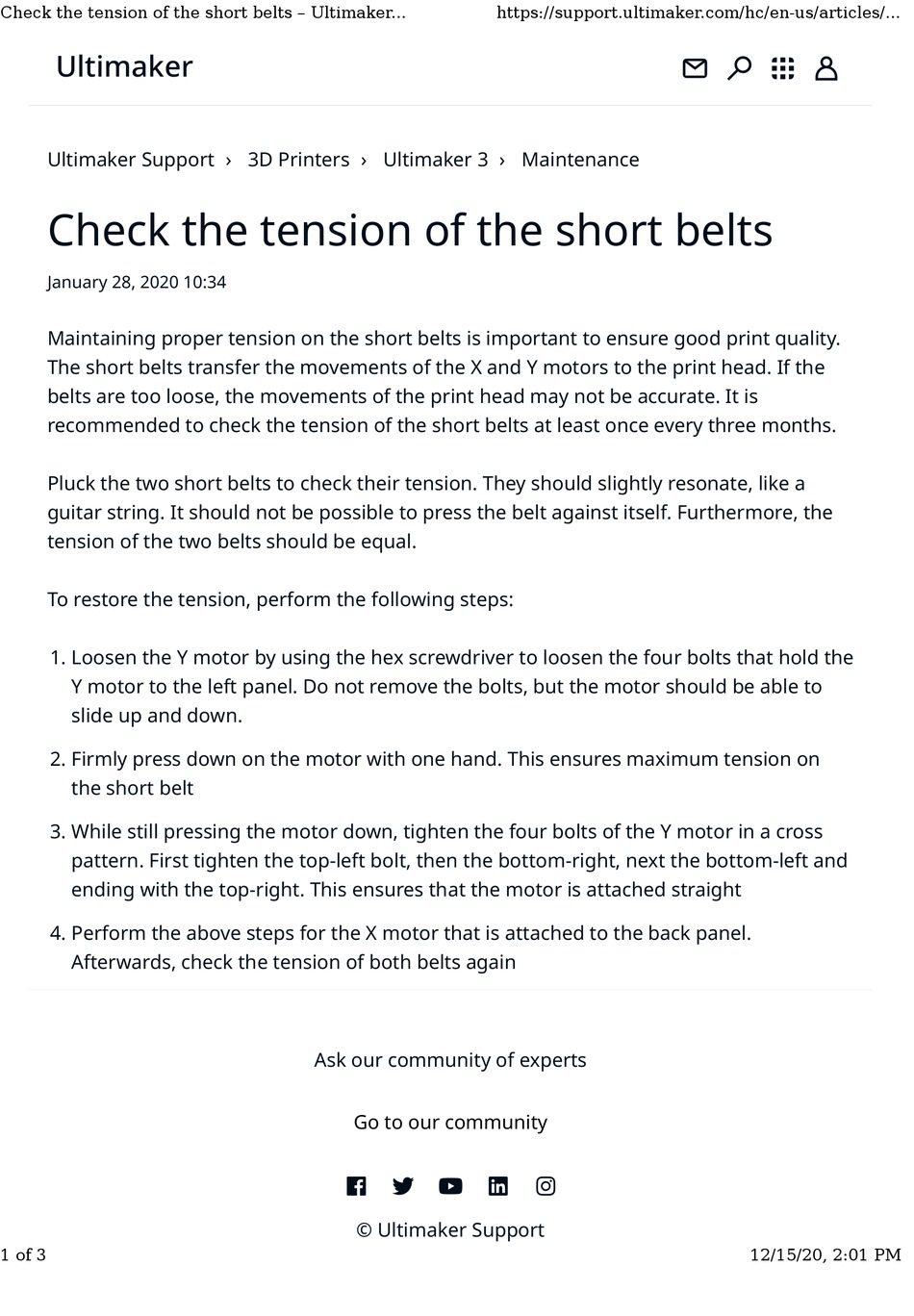

Check the tension of the short belts

January 28, 2020 10:34
Maintaining proper tension on the short belts is important to ensure good print quality.
The short belts transfer the movements of the X and Y motors to the print head. If the
belts are too loose, the movements of the print head may not be accurate. It is
recommended to check the tension of the short belts at least once every three months.
Pluck the two short belts to check their tension. They should slightly resonate, like a
guitar string. It should not be possible to press the belt against itself. Furthermore, the
tension of the two belts should be equal.
To restore the tension, perform the following steps:
1. Loosen the Y motor by using the hex screwdriver to loosen the four bolts that hold the
Y motor to the left panel. Do not remove the bolts, but the motor should be able to
slide up and down.
2. Firmly press down on the motor with one hand. This ensures maximum tension on
the short belt
3. While still pressing the motor down, tighten the four bolts of the Y motor in a cross
pattern. First tighten the top-left bolt, then the bottom-right, next the bottom-left and
ending with the top-right. This ensures that the motor is attached straight
4. Perform the above steps for the X motor that is attached to the back panel.
Afterwards, check the tension of both belts again
