Ultimaker 3 Quick Start Manual

Ultimaker 3
Quick
start
guide
What's in the box

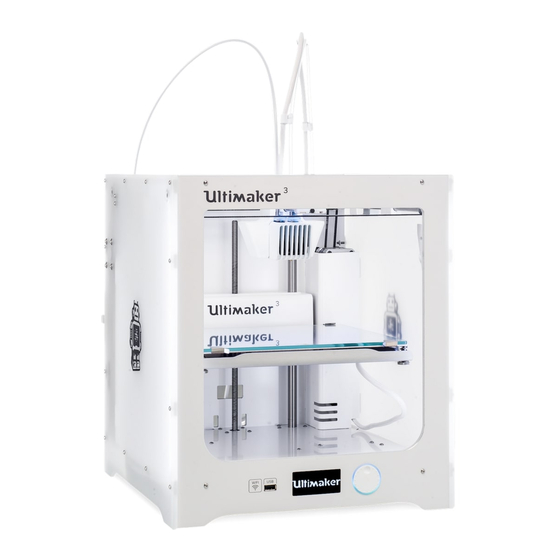

• Ultimaker 3
• Print Core AA 0.4
• Print Core AA 0.4
• Print Core BB 0.4
• Glass plate
• Cable cover
• Spool holder with
NFC cable
• Material guide
• Material spool PLA
• Material spool PVA
• Ethernet cable
• USB stick
• Glue stick
• Machine oil
• Magnalube grease
• Hex screwdriver
• XY calibration sheet
• Calibration card
• Quick start guide
• Power adapter
• Power cable
• Test print
1. Download the Ultimaker app
The app offers an extended version of this quick start guide
for your Ultimaker 3. It has tons of Ultimaker tips, support
guides, and helps you find local support when you need it.
Download it from the App Store, Google Play or from:
www.ultimaker.com/app
2. Remove the packaging
Lift the printer out of the cardboard box using the nylon strap. Carefully remove the
styrofoam packaging, the accessory box and the packaging material under the build plate.
Please retain all packaging for warranty purposes.
3. Install the printer
Gently place the printer on its side. Connect the cable of the spool holder
Insert the spool holder into the back to the NFC socket. The flat side of
panel and push until it snaps into the connector faces away from the
place. bottom panel.
Insert the cable cover into the back Open the front build plate clamps
panel to keep the cable in place. to insert the glass plate. Make sure
Gently place the printer upright the glass plate slides into the rear
again. clamps and close the front clamps.
Guide the cable through the cut-out
in the back panel. Any remaining
cable can be coiled up against the
back panel.
Connect the power supply to a wall
socket and connect it to the printer.
The flat side of the connector faces
downwards.
