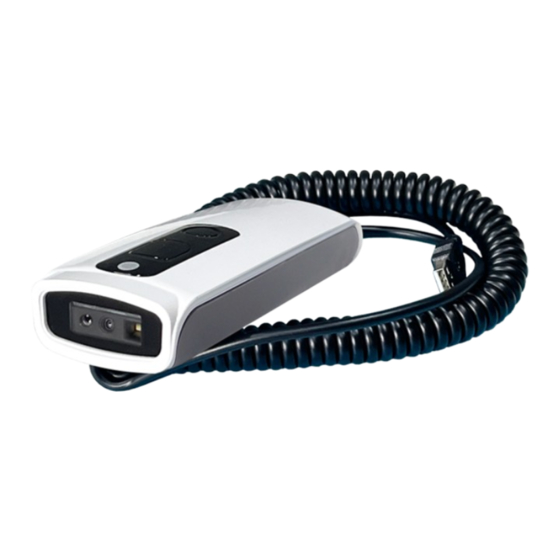

Marson MT8225HF User Manual

2d/hf handheld scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MT8225HF User's Manual V1.0
MT8225HF
2D/HF Handheld Scanner
User's Manual
Version 1.0
DATE: 2024/08/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT8225HF and is the answer not in the manual?

Questions and answers

Related Manuals for Marson MT8225HF

Summary of Contents for Marson MT8225HF

  • Page 1 MT8225HF User’s Manual V1.0 MT8225HF 2D/HF Handheld Scanner User’s Manual Version 1.0 DATE: 2024/08/13...

  • Page 2: Table Of Contents

    MT8225HF User’s Manual V1.0 Table of Content CHAPTER 1 INTRODUCTION ............................... 7 .................................... 7 PECIFICATIONS ..................................9 EEPER NDICATION .................................... 9 LED I NDICATION CHAPTER 2 HF RFID SETTINGS ............................10 ....................................10 TILITY Establish Connection ................................10 User Interface Overview ..............................11 ..................................
  • Page 3 MT8225HF User’s Manual V1.0 ..................................28 MAGING ETTINGS 1D Inverse Barcode ................................28 2D Inverse Barcode ................................28 CHAPTER 4 INTERFACE ..............................29 USB HID ...................................... 29 Keyboard Layout ................................... 29 Intercharacter Delay ................................31 Interblock Delay ..................................31 USB VCP ....................................32 BCC (Binary Check Character) ............................
  • Page 4 MT8225HF User’s Manual V1.0 UPC-E Expand to UPC-A ..............................44 EAN-8 ......................................44 Enable/Disable EAN-8 ................................. 44 Check Digit .................................... 45 Supplement.................................... 45 EAN-8 Expand to EAN-13 (Zero Extension) ........................45 EAN-13 ......................................46 Enable/Disable EAN-13 ............................... 46 Check Digit .................................... 46 Supplement....................................
  • Page 5 MT8225HF User’s Manual V1.0 Verification ..................................... 58 Interleaved 2 of 5 Min/Max Length ............................. 58 5 ..................................... 59 ATRIX Enable/Disable Matrix 2 of 5 ............................... 59 Verification ..................................... 59 Matrix 2 of 5 Min/Max Length.............................. 60 5 ..................................61 NDUSTRIAL Enable/Disable Industrial 2 of 5 ............................
  • Page 6 MT8225HF User’s Manual V1.0 ....................................71 Enable/Disable MaxiCode ..............................71 ......................................71 Enable/Disable HanXin ................................ 71 ....................................71 Enable/Disable DotCode ..............................71 CHAPTER 8 APPENDIX ............................... 72 – N ................................72 PPENDIX UMBERS – U ............................73 PPENDIX PPER LPHABETS –...

  • Page 7: Chapter 1 Introduction

    MT8225HF User’s Manual V1.0 Chapter 1 Introduction This user‟s manual is dedicated to MT8225HF, a high-speed scanning and error-free decoding 2D/HF handheld scanner, compliant with HF standards and supporting popular RFID chips. Rapidly capture 1D & 2D barcodes, even in various orientations, with superior accuracy. Built with anti-microbial technology, it ensures hygienic healthcare scanning.
  • Page 8 MT8225HF User’s Manual V1.0 Horizontal 43° Scan Angle Vertical 33° Pitch Angle ±55° Skew Angle ±55° 360° Roll Angle Print Contrast Ratio Width of Field 176mm (13Mil Code39) 5 Mil Code 39 : 37 ~ 199mm 13 Mil UPC/EAN : 47 ~ 380mm Typical D.O.F...

  • Page 9: Beeper Indication

    MT8225HF User’s Manual V1.0 QR Code. Micro QR Code, PDF417, 2D Symbologies MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, Dotcode Regulatory Functional after 4KV contact, 8KV air discharge EMC/RF Safety Approval EN/IEC62471 (Exempt Group) Environmental WEEE, RoHS 2.0 ISO 22196 (JIS Z 2801), ISO 11737-1/2...

  • Page 10: Chapter 2 Hf Rfid Settings

    Establish Connection 1. Download and install the latest Ez Utility. 2. Plug the USB cable of MT8225HF to the host PC 3. Enter Ez Utility. Select “New” as product type, “USB-HID” or “RS-232/USB-VCP” as interface according to the current interface. Then click “Save-Exit” to continue.

  • Page 11: User Interface Overview

    MT8225HF User’s Manual V1.0 User Interface Overview Below is the main window of Ez Utility To modify settings with predefined options, double-click the item and select the desired option from the drop-down menu. To modify settings with a variable number, double-click the item, then either use the up/down arrows or type the desired number directly into the column.
  • Page 12 MT8225HF User’s Manual V1.0 To retrieve current setting from the scanner, click the downward arrow icon on the toolbar. To reset to default or undo all changes, click the cycle arrow icon on the toolbar. Select “Undo All Changes” to cancel any changes made in the main window. Select “Reset Current Parameters to Default”...
  • Page 13 MT8225HF User’s Manual V1.0 To generate a batch configuration barcode for the current settings in the main window, click the barcode icon on the toolbar. You can then print this configuration barcode or save it as a Word or PDF file, allowing you to easily „clone‟ the current settings to other scanners offline.

  • Page 14: Reading Operation

    MT8225HF User’s Manual V1.0 Reading Operation To configure data reading related options for HF RFID, please go to HF-RFID Settings > Reading Operation.

  • Page 15: Operation Mode

    MT8225HF User’s Manual V1.0 Operation Mode By default the scanner operates in Trigger Mode, where RFID data is read only when the scan button is pressed. In Auto Mode, the scanner continuously reads RFID data without requiring the scan button to be pressed.

  • Page 16: Tag Info

    MT8225HF User’s Manual V1.0 Tag Info Tag Info specifies the portion of the tag that the scanner will read. By default, only the UID is read. To read the full or partial user memory, please choose “Read All Data Block”. To read NDEF data, please select “Read NDEF”.

  • Page 17: Scan Period (Sec)

    MT8225HF User’s Manual V1.0 Scan Period (sec) In Trigger Mode, if the scan button is pressed but no tag is successfully read within the Scan Period, the period will terminate. To disable this timeout, set the Scan Period to 0 (continuous) for continuous scanning.

  • Page 18: Data Output Format

    MT8225HF User’s Manual V1.0 Data Output Format To configure data output related options for HF RFID, please go to HF-RFID Settings > Data Output Format.

  • Page 19: Field Separator

    MT8225HF User’s Manual V1.0 Field Separator Field Separator is the delimiter between different parts of user memory data. By default, Field Separator is a comma ( , ). Tag Name Data / Tag Name Prefix To display the tag or chip name of the tag being read, enable Tag Name Data. By default, this setting is disabled.

  • Page 20: Uid Data / Uid Prefix / Uid Format

    MT8225HF User’s Manual V1.0 UID Data / UID Prefix / UID Format To display UID data of the tag being read, enable UID Data. By default, this setting is enabled. UID Prefix option is available only when UID Data is enabled. When UID Prefix is enabled, the caption “UID”...

  • Page 21: Chapter 3 General Settings

    MT8225HF User’s Manual V1.0 Chapter 3 General Settings Barcode Configurability (Setup Code) Scanning below configuration barcodes will allow/prohibit user to change settings by scanning configuration barcodes in this manual. Enable Barcode Configurability* Disable Barcode Configurability Factory Default Scanning below configuration barcode will reset all parameters to factory default settings (the ones...

  • Page 22: Good Read Indicator

    MT8225HF User’s Manual V1.0 Good Read Indicator Beep Tone Beep Low (2.0KHz) Beep Medium (2.7KHz)* Beep High (4.0KHz) Beep Mode Normal* Warning Beep Only Mute Vibrator Off*...

  • Page 23: Data Format

    MT8225HF User’s Manual V1.0 Data Format UTF-8 to Unicode Conversion Disable UTF-8 to Unicode* Enable UTF-8 to Unicode (Word) Country Code Page West European Latin* Japanese, Shift-JIS Japanese, Shift-JIS (Notepad / Excel) (Word) Traditional Chinese, Big5 Traditional Chinese, Big5 (Notepad / Excel) (Word) Note: Code pages define the mapping of character codes to characters.

  • Page 24: Ht/Cr/Esc Converts To Tab/Enter/Escape

    MT8225HF User’s Manual V1.0 HT/CR/ESC Converts to TAB/ENTER/ESCAPE Off* Note: 1. By default, HT [$I], CR [$M] and ESC [%A] is transmitted as <0x09>, <0x0D> and <0x1B> respectively. 2. When enabled, HT [$I], CR [$M] and ESC [%A] is transmitted as <TAB>, <ENTER> and <ESCAPE>...
  • Page 25 MT8225HF User’s Manual V1.0 Disable Output Note: Control code (0x01 ~ 0x1F) can be sent by two methods: (1) Ctrl Mode: A barcode of “A<HT>F” (0x41/0x09/0x46) is scanned, the output sequence is: a. Enter “A” – Press A key b. Enter “Ctrl + I” – Since 0x09 corresponds to “CtrI + I”, virtual keyboard will press and hold Ctrl key, press I key, and release Ctrl key and I key c.

  • Page 26: Numeric Key

    MT8225HF User’s Manual V1.0 Ctrl+l Alt+0+0+1+2 Ctrl+m Alt+0+0+1+3 Ctrl+n Alt+0+0+1+4 Ctrl+o Alt+0+0+1+5 Ctrl+p Alt+0+0+1+6 Ctrl+q Alt+0+0+1+7 Ctrl+r Alt+0+0+1+8 Ctrl+s Alt+0+0+1+9 Ctrl+t Alt+0+0+2+0 Ctrl+u Alt+0+0+2+1 Ctrl+v Alt+0+0+2+2 Ctrl+w Alt+0+0+2+3 Ctrl+x Alt+0+0+2+4 Ctrl+y Alt+0+0+2+5 Ctrl+z Alt+0+0+2+6 Ctrl+[ Alt+0+0+2+7 Ctrl+\ Alt+0+0+2+8 Ctrl+] Alt+0+0+2+9...

  • Page 27: Capital Lock Mode

    MT8225HF User’s Manual V1.0 Capital Lock Mode Capslock Off* Capslock On Capslock Free Note: When barcode scanner is set to Capslock Free mode, no matter keyboard Capslock LED indicator is ON or OFF, output will be always the same as the Original barcode. In other words, what you see is what output is.

  • Page 28: Imaging Settings

    MT8225HF User’s Manual V1.0 Imaging Settings 1D Inverse Barcode Disable 1D Inverse Barcode* Enable 1D Inverse Barcode 2D Inverse Barcode Disable 2D Inverse Barcode* Enable 2D Inverse Barcode...

  • Page 29: Chapter 4 Interface

    MT8225HF User’s Manual V1.0 Chapter 4 Interface USB HID Scanning below configuration barcode will configure the scanner to USB HID interface, in which the scanner becomes an HID keyboard device. USB HID Keyboard Layout English (US)* English (UK) Danish Spanish...
  • Page 30 MT8225HF User’s Manual V1.0 Italian French German Swiss German Swiss French Swedish Czech (QWERTZ) Czech (QWERTY) Norwegian Belgian Portuguese Slovak Brazilian (QWERTY) Canadian (Traditional)

  • Page 31: Intercharacter Delay

    MT8225HF User’s Manual V1.0 Japanese Alt Code Intercharacter Delay The configurable range is from 0 to 255ms. The larger the number, the longer the delay. Set Intercharacter Delay (Default = 0ms) Example: Set Intercharacter Delay to 8ms Step1: Scan Set Intercharacter Delay Step2: Scan “0”...

  • Page 32: Usb Vcp

    MT8225HF User’s Manual V1.0 USB VCP Scanning below configuration barcode will configure the scanner to USB VCP interface. The scanner will be able communicate with the host via USB Virtual COM. Normally virtual COM port can be recognized by the host. If it is not recognizable by the host, please download VCP driver from our website.

  • Page 33: Chapter 5 Reading Mode

    MT8225HF User’s Manual V1.0 Chapter 5 Reading Mode Trigger Mode In Trigger Mode the LED will stay on once trigger is pressed and held, and will turn off automatically once a barcode is read or LED Auto-Off timeout expires. Trigger Mode*...

  • Page 34: Batch Mode

    MT8225HF User’s Manual V1.0 Batch Mode In Batch Mode the LED will stay on when trigger is pressed and held, during which the scanner will read each unique barcode once. It cannot be read again until the next cycle. Batch Mode Auto-sensing Mode In Auto-sensing Mode the LED will turn off automatically after LED Auto-Off timeout expires.

  • Page 35: Continuous Mode / Auto-Sensing Mode - Identical Read Interval

    MT8225HF User’s Manual V1.0 Step1: Scan “LED Auto-Off Timeout” Step2: Scan “0” “0” “8” in Appendix – Numbers Step3: Scan “LED Auto-Off Timeout” Continuous Mode / Auto-sensing Mode – Identical Read Interval A barcode (or an identical one) can be re-scanned only after the defined amount of Identical Read Interval expires.

  • Page 36: Chapter 6 Data Format

    MT8225HF User’s Manual V1.0 Chapter 6 Data Format By default data format is as follows: <Preamble> <Code ID> <Barcode Length> <Barcode Data> <Postamble> <Terminator> Code ID Disable Code ID* Enable Factory ID Enable AIM ID Enable Set ID Set ID Set ID can be 0 ~ 2 alphanumerics for each symbology.
  • Page 37 MT8225HF User’s Manual V1.0 Set ID – EAN-8 Set ID – UPC-A Set ID – UPC-E Set ID – Interleaved 2 of 5 Set ID – Matrix 2 of 5 Set ID – Industrial 2 of 5 Set ID – Code93 Set ID –...

  • Page 38: Data Length

    MT8225HF User’s Manual V1.0 Set ID – Aztec Set ID – UK Plessey Set ID – GS1 DataBar Set ID – MaxiCode Set ID – HanXin Set ID – DotCode Set ID – Composite Example: Set Code39 Set ID as XY”...

  • Page 39: Preamble

    MT8225HF User’s Manual V1.0 Preamble Preamble can be up to 16 bytes of data. Set Preamble Example: Set XYZ123 as Preamble Step 1: Scan “Set Preamble” Step 2: Scan “X” “Y” “Z” “1” “2” “3” in Appendix – Upper Case Alphabets & Numbers Step 3: Scan “Set Preamble”...

  • Page 40: Terminator

    MT8225HF User’s Manual V1.0 Terminator None <LF> <CR>* <CR><LF> <TAB> <Space> <ESC> Note: 1. Default Terminator for USB HID interface = <CR> (or Enter) 2. Default Terminator for USB VCP interface = <CR><LF> 3. <CR><LF> or <LF> is treated as Enter for USB HID interface.

  • Page 41: Chapter 7 Symbologies

    MT8225HF User’s Manual V1.0 Chapter 7 Symbologies General Settings Enable All Symbologies Disable All Symbologies Enable All 1D Symbologies Disable All 1D Symbologies Enable All 2D Symbologies Disable All 2D Symbologies Note: When all symbologies are disabled, configuration barcodes are still readable.

  • Page 42: Check Digit

    MT8225HF User’s Manual V1.0 Check Digit Send Check Digit* Not Send Check Digit Lead Digit (System Number) Send Lead Digit* Not Send Lead Digit Supplement 5-digit Supplement On 5-digit Supplement Off* 2-digit Supplement On 2-digit Supplement Off* UPC-A Expand to EAN-13...

  • Page 43: Upc-E

    MT8225HF User’s Manual V1.0 UPC-E Enable/Disable UPC-E Enable UPC-E* Disable UPC-E UPC-E System Number UPC-E0 Off & UPC-E1 Off UPC-E0 On Only* UPC-E1 On Only UPC-E0 On & UPC-E1 On Check Digit Send Check Digit* Not Send Check Digit Lead Digit (System Number)

  • Page 44: Supplement

    MT8225HF User’s Manual V1.0 Supplement 5-digit Supplement On 5-digit Supplement Off* 2-digit Supplement On 2-digit Supplement Off* UPC-E Expand to UPC-A Enable UPC-E Expand to UPC-A Disable UPC-E Expand to UPC-A* EAN-8 Enable/Disable EAN-8 Enable EAN-8* Disable EAN-8...

  • Page 45: Check Digit

    MT8225HF User’s Manual V1.0 Check Digit Not Send Check Digit Send Check Digit* Supplement 5-digit Supplement On 5-digit Supplement Off* 2-digit Supplement On 2-digit Supplement Off* EAN-8 Expand to EAN-13 (Zero Extension) Enable EAN-8 Expand to EAN-13 Disable EAN-8 Expand to EAN-13*...

  • Page 46: Enable/Disable Ean-13

    MT8225HF User’s Manual V1.0 EAN-13 Enable/Disable EAN-13 Enable EAN-13* Disable EAN-13 Check Digit Not Send Check Digit Send Check Digit* Supplement 5-digit Supplement On 5-digit Supplement Off* 2-digit Supplement On 2-digit Supplement Off*...

  • Page 47: Isbn

    MT8225HF User’s Manual V1.0 ISBN Off* ISSN Off*...

  • Page 48: Code 128

    MT8225HF User’s Manual V1.0 Code 128 Enable/Disable Code 128 Enable Code 128* Disable Code 128 Code 128 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Code 128 Step1: Scan “Set Min Length”...

  • Page 49: Gs1-128(Ucc/Ean 128)

    MT8225HF User’s Manual V1.0 GS1-128(UCC/EAN 128) Enable/Disable GS1-128 Enable GS1-128* Disable GS1-128 GS1-128 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for GS1-128 Step1: Scan “Set Min Length”...

  • Page 50: Code 39

    MT8225HF User’s Manual V1.0 Code 39 Enable/Disable Code 39 Enable Code 39* Disable Code 39 Verification Disable CDV* CDV & Send CD CDV & Not Send CD Start/Stop Not Send Start/Stop* Send Start/Stop...

  • Page 51: Full Ascii Code39

    MT8225HF User’s Manual V1.0 Full ASCII Code39 Enable Full ASCII Code39* Disable Full ASCII Code39 Code39 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Code39 Step1: Scan “Set Min Length”...

  • Page 52: Code 32

    MT8225HF User’s Manual V1.0 Code 32 Enable/Disable Code 32 Enable Code 32 Disable Code 32* Notw: Please make sure Code39 is enabled with verification disabled before enabling Code32. Leading/Tailing Not Send Leading & Tailing Send Leading Only Send Tailing Only...

  • Page 53: Code 93

    MT8225HF User’s Manual V1.0 Code 93 Enable/Disable Code 93 Enable Code 93* Disable Code 93 Code 93 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Code93 Step1: Scan “Set Min Length”...

  • Page 54: Code 11

    MT8225HF User’s Manual V1.0 Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11* Verification Disable CDV* CDV & Send CD CDV & Not Send CD Check Digit 1 Digit* 2 Digits...

  • Page 55: Code 11 Min/Max Length

    MT8225HF User’s Manual V1.0 Code 11 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Code11 Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix – Numbers Step3: Scan “Set Min Length”...

  • Page 56: Codabar (Nw-7)

    MT8225HF User’s Manual V1.0 Codabar (NW-7) Enable/Disable Codabar Enable Codabar* Disable Codabar Verification Disable CDV* CDV & Send CD CDV & Not Send CD Start/Stop Not Send Start/Stop ST/SP: ABCD/ABCD* ST/SP: abcd/abcd ST/SP: ABCD/TN*E...

  • Page 57: Codabar Min/Max Length

    MT8225HF User’s Manual V1.0 ST/SP: abcd/tn*e Codabar Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Codabar Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix – Numbers Step3: Scan “Set Min Length”...

  • Page 58: Interleaved 2 Of 5

    MT8225HF User’s Manual V1.0 Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5* Disable Interleaved 2 of 5 Verification Disable CDV* CDV & Send CD CDV & Not Send CD Interleaved 2 of 5 Min/Max Length...

  • Page 59: Matrix 2 Of 5

    MT8225HF User’s Manual V1.0 Matrix 2 of 5 Enable Disable Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5* Verification Disable CDV* CDV & Send CD CDV & Not Send CD...

  • Page 60: Matrix 2 Of 5 Min/Max Length

    MT8225HF User’s Manual V1.0 Matrix 2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Matrix 2 of 5 Step1: Scan “Set Min Length”...

  • Page 61: Industrial 2 Of 5

    MT8225HF User’s Manual V1.0 Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Industrial 2 of 5 Disable Industrial 2 of 5* Verification Disable CDV* CDV & Send CD CDV & Not Send CD...

  • Page 62: Industrial 2 Of 5 Min/Max Length

    MT8225HF User’s Manual V1.0 Industrial 2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Industrial 2 of 5 Step1: Scan “Set Min Length”...

  • Page 63: Standard 2 Of 5 (Iata)

    MT8225HF User’s Manual V1.0 Standard 2 of 5 (IATA) Enable/Disable Standard 2 of 5 Enable Industrial 2 of 5 Disable Industrial 2 of 5* Verification Disable CDV* CDV & Send CD CDV & Not Send CD...

  • Page 64: Standard 2 Of 5 Min/Max Length

    MT8225HF User’s Manual V1.0 Standard 2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for Standard 2 of 5 Step1: Scan “Set Min Length”...

  • Page 65: Msi Plessey

    MT8225HF User’s Manual V1.0 MSI Plessey Enable/Disable MSI Plessey Enable MSI Plessey Disable MSI Plessey* Verification CDV & Send CD* CDV & Not Send CD Check Digit Single Mod 10* Double Mod 10 Mod 11 Plus Mod 10...

  • Page 66: Msi Plessey Min/Max Length

    MT8225HF User’s Manual V1.0 MSI Plessey Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 99) Example: Set Min Length as 8, Max Length as 12 for MSI Plessey Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix – Numbers Step3: Scan “Set Min Length”...

  • Page 67: Uk Plessey

    MT8225HF User’s Manual V1.0 UK Plessey Enable/Disable UK Plessey Enable UK Plessey Disable UK Plessey* Verification CDV & Send CD CDV & Not Send CD* GS1 DataBar Enable/Disable GS1 DataBar Enable GS1 DataBar* Disable GS1 DataBar...

  • Page 68: Gs1 Databar Limited

    MT8225HF User’s Manual V1.0 GS1 DataBar Limited Enable/Disable GS1 DataBar Limited Enable GS1 DataBar Limited* Disable GS1 DataBar Limited GS1 DataBar Expanded Enable/Disable GS1 DataBar Expanded Enable GS1 DataBar Expanded* Disable GS1 DataBar Expanded Composite Enable/Disable Composite Enable Composite Disable Composite*...

  • Page 69: Qr Code

    MT8225HF User’s Manual V1.0 QR Code Enable/Disable QR Code Enable QR Code* Disable QR Code Micro QR Code Enable/Disable Micro QR Code Enable Micro QR Code Disable Micro QR Code* Data Matrix Enable/Disable Data Matrix Enable Data Matrix* Disable Data Matrix...

  • Page 70: Pdf417

    MT8225HF User’s Manual V1.0 PDF417 Enable/Disable PDF417 Enable PDF417* Disable PDF417 MicroPDF417 Enable/Disable MicroPDF417 Enable MicroPDF417 Disable MicroPDF417* Aztec Enable/Disable Aztec Enable Aztec Disable Aztec*...

  • Page 71: Maxicode

    MT8225HF User’s Manual V1.0 MaxiCode Enable/Disable MaxiCode Enable MaxiCode Disable MaxiCode* HanXin Enable/Disable HanXin Enable HanXin Disable HanXin* DotCode Enable/Disable DotCode Enable DotCode Disable DotCode*...

  • Page 72: Chapter 8 Appendix

    MT8225HF User’s Manual V1.0 Chapter 8 Appendix Appendix – Numbers...

  • Page 73: Appendix - Upper Case Alphabets

    MT8225HF User’s Manual V1.0 Appendix – Upper Case Alphabets...
  • Page 74 MT8225HF User’s Manual V1.0...

  • Page 75: Appendix - Lower Case Alphabets

    MT8225HF User’s Manual V1.0 Appendix – Lower Case Alphabets...
  • Page 76 MT8225HF User’s Manual V1.0...

  • Page 77: Appendix - Control Codes

    MT8225HF User’s Manual V1.0 Appendix – Control Codes...
  • Page 78 MT8225HF User’s Manual V1.0...

  • Page 79: Appendix - Symbols

    MT8225HF User’s Manual V1.0 Appendix – Symbols &...
  • Page 80 MT8225HF User’s Manual V1.0 < > “ ‘...
  • Page 81 MT8225HF User’s Manual V1.0...

  • Page 82: Appendix - Function Keys

    MT8225HF User’s Manual V1.0 Appendix – Function Keys Home Enter (Numeric Key)

  • Page 83: Appendix - Navigation Keys

    MT8225HF User’s Manual V1.0 Appendix – Navigation Keys Cursor Left Cursor Right Cursor Up Cursor Down Page Up Page Down Back Tab Enter...

  • Page 84: Appendix - Modifier Keys

    MT8225HF User’s Manual V1.0 Appendix – Modifier Keys Alt (Left) make *1 Alt (Left) break Alt (Right) make Alt (Right) break Shift (Left) make *2 Shift (Left) break Shift (Right) make Shift (Right) break Win (Left) make Win (Left) break...

  • Page 85: Appendix - Abort

    MT8225HF User’s Manual V1.0 Ctrl (Left) make *3 Ctrl (Left) break Ctrl (Right) make Ctrl (Right) break Note: *1: When “Alt (Left) make” is programmed, please scan “Alt (Left) break” to resume barcode setting. *2: When “Shift (Left) make” is programmed, please scan “Shift (Left) break” to resume barcode setting.

  • Page 86: Appendix - Default Table

    MT8225HF User’s Manual V1.0 Appendix – Default Table Function Default Remark HF-RFID Settings Reading Operation Operation Mode Trigger Tag-14443A Enable Tag-15693 Enable Tag-14443B Enable Tag-Other Enable Tag-Info Read UID only Starting Pointer (byte) Data Length (byte) 1024 Scan Period (sec)
  • Page 87 MT8225HF User’s Manual V1.0 Country Code Page West European Latin HT/CR/ESC Converts to TAB/ENTER/ESCAPE Function Code Conversion Control Code Output Method Ctrl Mode Numeric Key Capital Lock Mode Surround GS1 Application Identifiers (AI‟s) with Parentheses Imaging Settings 1D Inverse Barcode...
  • Page 88 MT8225HF User’s Manual V1.0 Lead Digit (System Number) Send Supplement UPC-A Expand to EAN-13 UPC-E Enable/Disable UPC-E System Number UPC-E0 On Only Check Digit Send Lead Digit (System Number) Send Supplement UPC-E Expand to UPC-A EAN-8 Enable/Disable Check Digit Send...
  • Page 89 MT8225HF User’s Manual V1.0 Code 93 Enable/Disable Min Length Max Length Code 11 Enable/Disable Verification Disable CDV Check Digit 1 Digit Min Length Max Length Codabar Enable/Disable Verification Disable CDV Start/Stop ST/SP: ABCD/ABCD Min Length Max Length Interleaved 2 of 5...
  • Page 90 MT8225HF User’s Manual V1.0 Min Length Max Length UK Plessey Enable/Disable Verification CDV & Not Send CD GS1 DataBar Enable/Disable GS1 DataBar Limited Enable/Disable GS1 DataBar Expanded Enable/Disable Composite Enable/Disable QR Code Enable/Disable Micro QR Code Enable/Disable Data Matrix Enable/Disable...

  • Page 91: Appendix - Factory Id And Aim Id Table

    MT8225HF User’s Manual V1.0 Appendix – Factory ID and AIM ID Table Symbology Factory ID AIM ID AIM ID Modifier (m) UPC-E UPC-A EAN-8 EAN-13 ISBN/ISSN Code 128 GS1-128 AIM 128 ISBT 128 Code 39 0,1,3,4,5,7 Code 32 Code 93...
  • Page 92 MT8225HF User’s Manual V1.0 QR Code/Micro QR Code Aztec UK Plessey GS1 DataBar Composite MaxiCode HanXin DotCode...

  • Page 93: Appendix - Ascii Table

    MT8225HF User’s Manual V1.0 Appendix – ASCII Table Note: ASCII 0~31 are non-printable characters, ASCII 32~127 are printable characters. ASCII NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry)
  • Page 94 MT8225HF User’s Manual V1.0 # (Number Sign) $ (Dollar Sign) % (Percent) & (Ampersand) ` (Single Quote) ( (Right / Closing Parenthesis) ) (Right / Closing Parenthesis) * (Asterisk) + (Plus) , (Comma) - (Minus / Dash) . (Dot) / (Forward Slash) : (Colon) ;...
  • Page 95 MT8225HF User’s Manual V1.0 [ (Left / Opening Bracket) \ (Back Slash) ] (Right / Closing Bracket) ^ (Caret / Circumflex) _ (Underscore) „ (Grave Accent)
  • Page 96 MT8225HF User’s Manual V1.0 { (Left/ Opening Brace) | (Vertical Bar) } (Right/Closing Brace) ~ (Tilde) DEL (Delete)

  • Page 97: Version History

    MT8225HF User’s Manual V1.0 Version History Date Description Issued 2024.08.13 FW: SM3-m-1.02 , V2.4.1.69.22 , 1.3.7 Shaw Initial Release...
