enware ET14BMSLL Installation Manual page 5

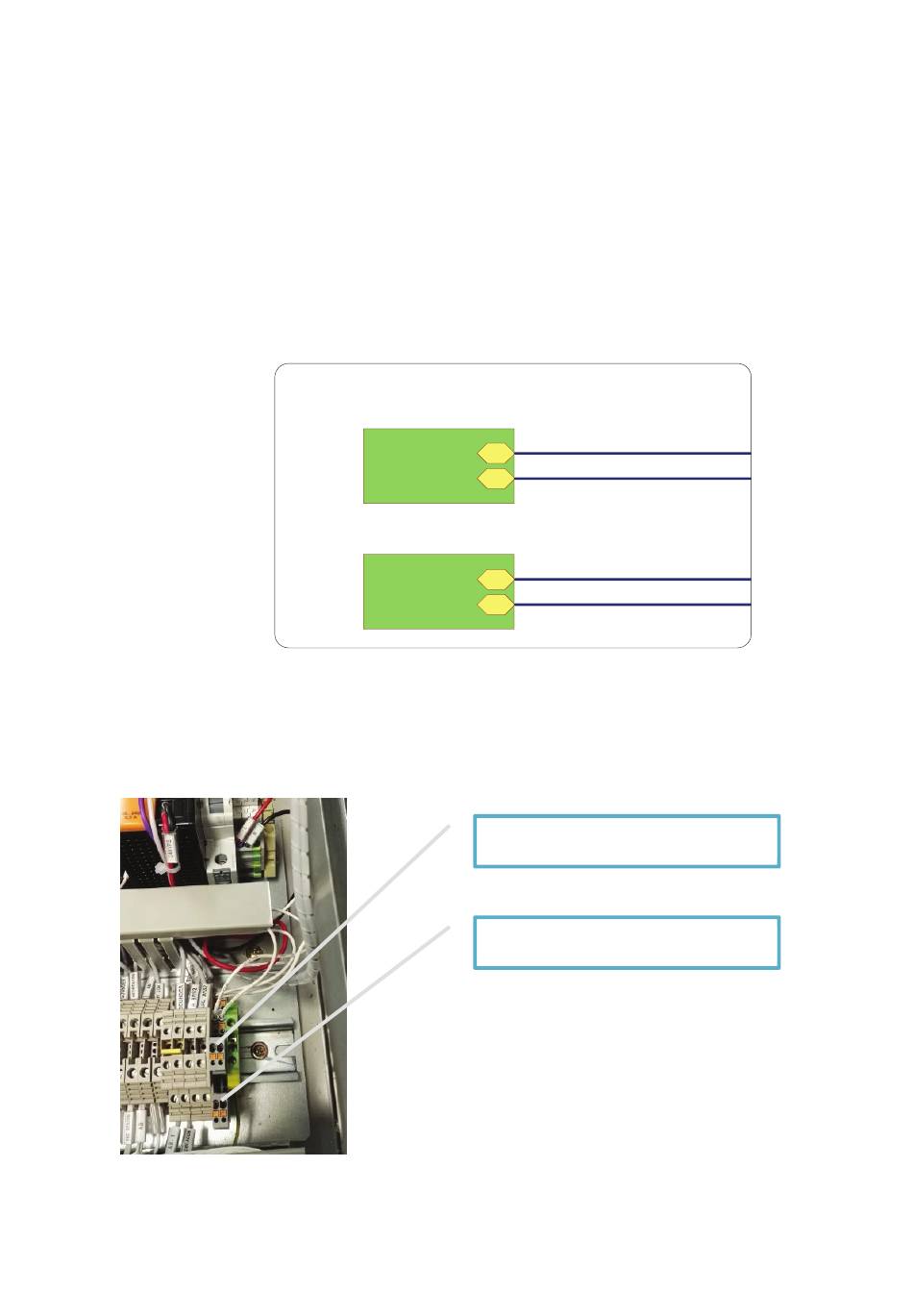

Connect back to base signals to junction box:
TERMINAL DIODE
A. Connect the emergency alarm signal cable to terminal marked "a" and "b"
(refer figure 1 – excerpt from wiring diagram)
B. Connect the low water alarm signal cable to terminal marked "c" and "d"
(refer figure 1 – excerpt from wiring diagram)
SW1
2
1
3
FIGURE 1
5 Call 1300 369 273
Sounder
D2
AB_S
T2
DIN terminal blocks
T3
DIN terminal blocks
D1
TERMINAL DIODE
A_BMS1
A
A_BMS2
B
LWL_BMS1
C
LWL_BMS2
D
Terminal blocks for "L", "N", "E"
Terminal blocks for "C", "D"
Terminal blocks for "A", "B"
11
21
22 24 12
11
21
22 24 12
AB
www.enware.com.au
1
